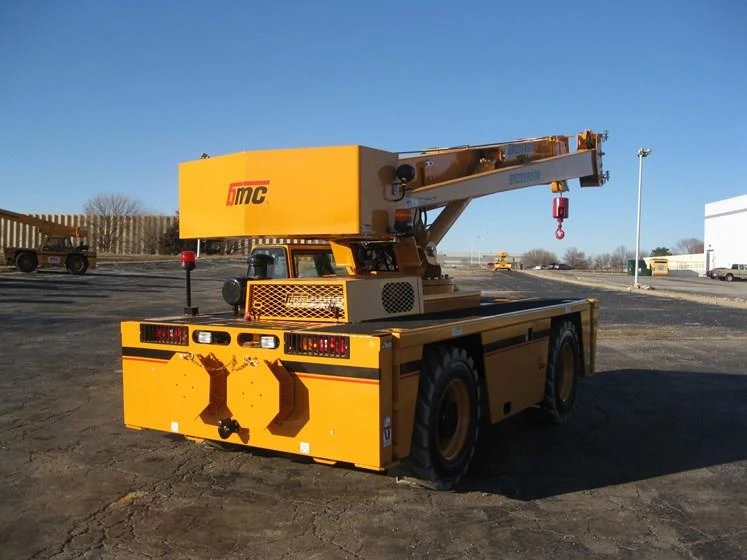

New Broderson IC-250 Carry Deck Crane for Sale

Ideal for lifting materials that requires a compact low-profile crane that can clear overhead obstacles and maneuver in tight spaces, the versatile Broderson IC 250 is ideal for many industrial and maintenance applications. Precise control and a heavy duty design to pick and carry large or massive loads, coupled with the steering flexibility to maneuver in tight spaces, will provide you with years of versatile operating performance.
Body
Chassis CARGO DECK: 80 Square feet (7.4 m ) of deck area. 17,000 lbs. (7,700 kg) capacity on deck when load is centered over or between axles.
OUTRIGGERS: Four hydraulic out & down outriggers of box beam construction with direct-connected holding valves. Independent controls for each outrigger. Outrigger pad dimension 9” (23 cm) x 9” (23 cm)
ACCESSORY STORAGE BOX: Storage box is 14” (35 cm) deep x 12½” (32 cm) long x 36 ½” (93 cm) wide, located in front cargo deck.
LIFTING RINGS: Lifting rings at each corner of cargo deck so sling can be attached for lifting crane
Dimensions
Length 15’5”
Width 7 ft. 10 in.
Height 7’11”
Weight 37,700 lbs.
17,100 lbs. (Front Axle)
20,600 lbs. (Rear Axle)
Turning Radius 14’4”
Capacity 17,000 lbs. (Self-Loading Carry Deck)
18,500 lbs. (Pick and Carry)
Horizontal Reach 70’1” (w/boom extension)
Max Tip Height 79 ft. 6 in. (24.23 m) with boom extension
Engine
Engine Make Cummins & GM
Engine Model QSF3.8 T4F/QSB3.3 T4i (Cummins) & 5.7L V8 (T2) (GM)
Engine Type Turbo-Diesel (QSF3.8 T4F/QSB3.3 T4i)
LPG (5.7L V8 (T2))
Cylinders 4/4 (QSF3.8 T4F/QSB3.3 T4i)
8 (5.7L V8 (T2))
Horsepower 120 HP/99 HP (QSF3.8 T4F/QSB3.3 T4i)
135 HP (5.7L V8 (T2))
Displacement 3.8L/3.3L (QSF3.8 T4F/QSB3.3 T4i)
5.7L (5.7L V8 (T2))
Fuel Tank Capacity 30 Gallons (QSF3.8 T4F/QSB3.3 T4i)
Dual 43lb. (5.7L V8 (T2))
Drivetrain
Axles FRONT: Planetary drive/steer front axle with 16:42 to 1.0 ratio. Differential equipped with “limited slip” feature. Front axle mounted rigidly to frame.
REAR:
Standard (2-Wheel Drive): Steering axle with 1-1/2 degree oscillation in either direction.
Optional (4-Wheel Drive): Planetary drive/steer axle with 24.98 to 1.0 ratio. Differential is not “limited slip” in rear axle. 1-1/2 degree oscillation in either direction. Axle ratio compatible with 4-wheel drive transmission rear output ratio to match front axle speed.
Transmission POWERSHIFT TRANSMISSION with 4-speeds forward & reverse. Provides power shifts at any engine speed in any gear. All shifting is done with a single lever electrical control mounted on the steering column. Multiple-disc clutch packs operated by solenoid valves provide reverse, neutral, forward and speed selection. Equipped with torque converter and transmission oil cooler.
First: 5.72 (Forward): 1 (Reverse)
Second: 3.23 (Forward): 1 (Reverse)
Third: 1.77 (Forward): 1 (Reverse)
Fourth: 1.00 (Forward): 1 (Reverse)
Transmission Speeds First: 3 MPH
Second: 5 MPH
Third: 10 MPH
Fourth: 18 MPH
Hydraulic
Hydraulic Capacity 54 Gallons
Hydraulic Pump TANDEM PUMP direct-driven by engine, delivers 30 GPM (113L/min) at rated RPM. 54-gallon capacity.
Operational
Brakes Service: Split-system, 4-wheel hydraulic-boosted multiple plate wet disc brakes.
Parking: Hand lever actuated disc-type parking brake on transmission.
Tires Standard: 385/65 D22.5, 16-ply high traction on/off road tread.
Steering Hydraulic steering unit with two cylinders attached to each axle. Allows limited steering when engine is not running. A switch on the control panel is used to select rear-wheel steering or four-wheel (round) steering or crab steering.
Gradeability 64%
Lift Capacity 36,000 lbs.
Drawbar Pull First: 18,100 lbs.
Second: 10,600 lbs.
Third: 6,000 lbs.
Fourth: 3,200 lbs.
Outriggers Up Lift Capacity 36,000 lbs.
Boom
Boom Extensions 34’6”
Max Boom Length 50’
Max Tip Height-Boom 50'
Boom Rotation 360° Continuous
Heavy-duty ball bearing rotation gear with external teeth. Rotation is powered by hydraulic motor and worm gear drive
Boom Elevation 0°-75°
Boom Speed 1.4 RPM (Rotation)
22 secs. (Elevation)
41 secs. (Extension)
Boom Hoist Turret-mounted planetary gear hoist, is hydraulically powered to provide a bare-drum line pull of 12,000 lbs (5440 kg) and a speed of 100 fpm (30 m/min), includes 320 feet (97 m) of 9/16 inch (14 mm) wire rope, 170 pound (77 kg) downhaul weight, swivel hook, sheave block for 4-part line
Electrical
Electrical System LIGHTING PACKAGE: Consists of two 12V-lamps, with high and low beams for driving; tail, brake and turn signal lights and backup lights in rear; front turn signals and emergency flasher switch at operator’s station.
INSTRUMENT PACKAGE: Fuel gauge and hour meter which records hours only during actual engine operation. Also included are warning lights for low oil and transmission pressure, check engine, high coolant and transmission temperature, turn signals, high beams, hazard lights, parking brake and four-wheel drive.
BACK-UP ALARM: Provides pulsating sound from 102 dB alarm when transmission is in reverse. Conforms to SAE J994B.
OUTRIGGER ALARM SYSTEM: Two-tone alarm is activated when “outrigger down” or “outrigger out” controls are operated.

Major Standard Features

  • Self-Loading Carry Deck provides practical load-carrying ability.
  • Sequentially Extending/Retracting 4-Section Boom with continuous 360 degree swing rotation turret. Simplicity of the worm drive gear box results in greater reliability.
  • Hoisting with a hydraulically-powered turret-mounted planetary gear system provides all the low speed power to lift heavy loads, yet also a high speed setting for faster cycle times when lifting lighter loads.
  • Hydraulic Power is provided by a direct driven tandem pump delivering 29 gpm.
  • Rated Capacity Limiter warns the operator of impending overload with audible and visual signals, and stops boom functions in the event of overloads.
  • Multiple Steering Configurations, including 4-Wheel Steer, where the front and rear wheels steer in opposite directions, permits a very tight turning radius for quick positioning in constrained spaces. Operator can quickly switch between rear-wheel steering, 4-wheel, or crab steering, aided by electronic sensors and a control box that automatically align the steering after a new mode is selected. Rear wheels steer in two-wheel drive mode.
  • EPA Tier 2 Woodward LPG Fuel Engine delivers efficient performance.
  • Powershift Transmission, with 4 speeds forward and reverse, minimizes bumps and jolts during shifting that is possible at any engine speed in any gear.
  • Heavy Duty Chassis Frame provides a front deck carrying capacity of 17,000 lbs.
  • Four Hydraulic Independently Controlled Outriggers
  • Rubber Mounted Rear Axle/Suspension eliminates sudden load swings inherent in pivot mounted axles; thus, axle oscillation lockouts are not required.
  • Drum Rotation Indicator improves operator productivity.
  • Outrigger Sensing on all jacks indicates outrigger position change, warnings when Jacks are not touching the ground. Each outrigger’s down and out position can be independently controlled and adjusted.
  • Easy Access to engine compartment and hydraulic equipment components simplifies maintenance and repair.
  • Low Profile Design ideal for tight work spaces and simplifies transportation by flatbed truck.

Available Features

  • Tier-4 Interim or Tier-4 Final Turbocharged Engine available.
  • All-Weather Cab with heater & defroster. Adjustable seat, provides one-position access to all operating functions.
  • 4-Wheel Drive improves accessibility when encountering severe conditions at off-road sites.
  • Noise Reduction Kit
  • Air Conditioning
  • Auxiliary Winch

Boom Attachments

  • Boom Extension 20' (6.1m) offsetable to three positions (0 degree, 15 degree, 30 degree)
  • Boom Work Lights—one to light the boom tip, one mounted to turret, and to light the ground under boom tip—to keep working during the dusk to dawn operating hours.
  • Searcher Hook - Nose Mounted
  • ENGINE
    • Spark Arrester Muffler: Installed in addition to standard muffler. (LPG only.)
    • Engine Heater: Engine coolant heater installed to circulate warm water through engine, plugs into 120 volt AC.
  • AXLE & STEERING
    • 4-Wheel Steer & 2-Wheel Drive
    • 4-Wheel Steer & 4-Wheel Drive
  • TIRE
    • Non Marking Pneumatic Tires
    • Foam Filling of Tires
    • Spare Tire & Wheel
  • CHASSIS
    • Auxiliary Winch: Mounted on front outrigger bumper, hydraulically driven with control in operator’s console.
    • Pintle Hook: Rear and Front
    • Rearview Mirrors: One mounted on right-hand deck stake and one mounted on left-hand deck stake.
    • Outrigger Shoes: Steel outrigger shoes, 18” (46 cm) x 18” (46 cm) octagonal shape with storage posts on rear bumper.
  • OPERATOR COMPARTMENT
    • Operator Guard: Tubular steel weldment with heavy expanded steel mesh top section.
    • All Weather Cab: Rigid-mounted canopy section and removable hinged door. Includes heater, electric windshield wiper, one sliding glass window in the door & one in the right side of canopy. Defroster fan & dome light included.
    • Cab Heater Only: Heater with two-speed fan for units without All Weather Cab.
    • Windshield Washer:  Includes reservoir, pump and nozzle.
    • Floor Mat: Vinyl mat with foam backing.
    • Operator Suspension Seat: Small suspension built in to provide additional operator comfort. Deluxe seat upholstery springs provide additional operator comfort.
    • Noise Reduction Kit: Includes floor mat, control valve cover and side panels of foam backed vinyl for noise reduction.
    • Air Conditioning: Air Conditioner w/134: coolant.
  • ELECTRICAL
    • Strobe Lights: Yellow strobe light mounted on each side of turret weight box.
    • Boom Work Lights: One worklight mounted to boom to light boom tip, and one work light mounted to turret to light ground under boom tip.
    • Work Lights - Rear:  Two work lights recessed in rear bumper
    • RCL Light Bar: 3 color light bar for external indication of load status
  • BOOM ATTACHMENTS
    • Boom Extension: 20 ft. (6.1 m) Offset. Boom stowable. Boom extension is offsettable to 3 different positions; 0 degree (in line), 15 degree and 30 degree offset.
    • Sheave Block: Two-Part Line
    • Searcher Hook: Nose Mount 5,000 lb (2,270 kg)
