Denis Cimaf DAH Boom-Mounted Mulchers

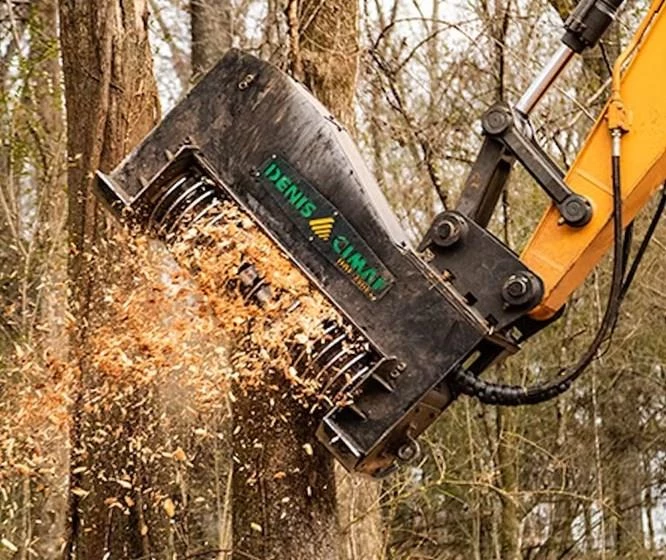

Side of New Denis Cimaf Mulcher for Sale

New Denis Cimaf DAH Boom-Mounted Mulchers for Sale

The DAH is a high-power, forestry brushcutting-mulching industrial system to be installed on most excavators or other carriers with articulated masts. DAH brushcutter-mulchers are designed for vegetation control work.

  • MOTOR: Variable displacement, axial-piston motor that minimizes overheating and improves re-acceleration.
  • DRIVE: Industrial cogged-belt drive system that prevents slippage and reduces effort applied to bearings compared with V-belts, for longer bearing life
  • KNIVES: Heat-treated, bolt-on forged knives that deliver maximum resistance to impact and abrasion, and that can be sharpened right on the unit
  • EASY REPLACEMENT: A single nut and bolt holds the knife in place, making replacing worn knives easy
  • RINGS: Protective rings that limit the size of the bites and considerably reduce risks of breakage on the knife holders
  • TILT OPTION: New tilt option offers higher productivity owing to increased agressiveness.
  • REPLACEABLE LINER: Replaceable bolt-in liner increases the frame durability.
  • CHEVRON ROWS OF KNIVES: Two chevron-like rows of knives that help reduce vibration during operation
  • ALIGNED KNIFE CONFIGURATION: Smaller B-sized rotor have an aligned knives configuration to help with rotor suction.



Models

  • DAH-150Er
  • DAH-150E
  • DAH-125D
  • DAH-100C
  • DAH-080C
  • DAH-085B
  • DAH-065B
Body
Excavator Class DAH-150Er: 54,000-70,000 lbs.
DAH-150R: 40,000-54,000 lbs.
DAH-125F: 32,000-44,000 lbs.
DAH-100C: 20,000-30,000 lbs.
DAH-080C & DAH-085B: 15,000-22,000 lbs.
DAH-065B: 11,000-15,000 lbs.
Number of Blades DAH-150Er & DAH-150R: 21 (on Rotor)
DAH-125F: 17 (on Rotor)
DAH-100C & DAH-085B: 15 (on Rotor)
DAH-080C & DAH-065B: 11 (on Rotor)
Target Material Diameter DAH-150Er: 20”
DAH-150R: 15”
DAH-125F: 10”
DAH-100C: 6”
DAH-080C & DAH-085B: 4”
DAH-065B: ≤4”
Dimensions
Width DAH-150Er: 32”
DAH-150R: 39”
DAH-125F: 29”
DAH-100C & DAH-080C: 30”
DAH-085B & DAH-065B: 26”
Height DAH-150Er: 43”
DAH-150R: 44”
DAH-125F & DAH-080C: 38”
DAH-100C: 50”
DAH-085B: 31”
DAH-065B: 33”
Weight DAH-150Er: 3,700 lbs. (typical, estimated); 4,640 lbs. (w/all options)
DAH-150R: 3,400 lbs. (typical, estimated); 4,100 lbs. (w/all options)
DAH-125F: 2,220 lbs. (typical, estimated); 2,900 lbs. (w/all options)
DAH-100C: 1,570 lbs. (typical, estimated); 2,000 lbs. (w/all options)
DAH-080C: 1,420 lbs. (typical, estimated); 1,830 lbs. (w/all options)
DAH-085B: 1,120 lbs. (typical, estimated); 1,200 lbs. (w/all options)
DAH-065B: 920 lbs. (typical, estimated); 1,000 lbs. (w/all options)
Rotor Diameter DAH-150Er & DAH-150R: 20”
DAH-125F: 18”
DAH-100C & DAH-080C: 17”
DAH-085B & DAH-065B: 14”
Exterior Length DAH-150Er: 78”
DAH-150R: 79”
DAH-125F: 65”
DAH-100C: 60”
DAH-080C & DAH-085B: 47”
DAH-065B: 39”
Hydraulic
Cylinders DAH-150Er: 170 (Motor Max)
DAH-150R & DAH-125F: 115 (Motor Max)
DAH-100C: 85 (Motor Max)
DAH-080C & DAH-085B: 60 (Motor Max)
DAH-065B: 28 (Motor Max)
Operating Pressure DAH-150Er: 6000 PSI
DAH-150R, DAH-125F, DAH-100C: 5000 PSI
DAH-080C, DAH-085B & DAH-065B: 4000 PSI
Rotation Speed DAH-150Er, DAH-150R, DAH-125F, DAH-100C & DAH-080C: 3000 RPM (optimal)
DAH-085B & DAH-065B: 4000 RPM (optimal)
Required Continuous Flow DAH-150Er: 55 gal/min
DAH-150R: 38 gal/min
DAH-125F: 35 gal/min
DAH-100C: 27 gal/min
DAH-080C & DAH-085B: 20 gal/min
DAH-065B: 14 gal/min
Pressure Line I.D. DAH-150Er: 1.25” (#20
DAH-150R & DAH-125F: 1” (#16)
DAH-100C: .75” (#12)
DAH-080C, DAH-085B & DAH-065B: .625” (#10)
Return Line I.D. DAH-150Er: 1.25” (#20)
DAH-150R & DAH-125F: 1” (#16)
DAH-100C: .75” (#12)
DAH-080C, DAH-085B & DAH-065B: .625” (#10)
Drain Line DAH-150Er, DAH-150R, DAH-125F & DAH-100C: .75” (#12)
DAH-080C, DAH-085B & DAH-065B: .50” (#8)
Operational
Cutting Width DAH-150Er & DAH-150R: 57”
DAH-125F: 48”
DAH-100C: 42”
DAH-080C: 32”
DAH-085B: 34”
DAH-065B: 26”
Carrier Power DAH-150Er: 192 HP & Up
DAH-150R: 130 HP & Up
DAH-125F: 80 HP & Up
DAH-100C: 65 HP & Up
DAH-080C & DAH-085B: 54 HP & Up
DAH-065B: 50 HP & Up
Cutting Distance DAH-150Er & DAH-150R: 1.07” (from Ground Level)
DAH-125F: 1” (from Ground Level)
DAH-100C, DAH-080C, DAH-085B & DAH-065B: .75” (from Ground Level)
  • Tilt System
  • Bolt-in Wear Liner
  • Type of Sharpenable Blades
  • Tilt System
  • Bolt-in Wear Liner
  • Standard Sharpenable Blade

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Denis Cimaf
MODEL DAH Boom-Mounted Mulchers

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Denis Cimaf DAH Boom-Mounted Mulchers

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Denis Cimaf DAH Boom-Mounted Mulchers for Sale

The DAH is a high-power, forestry brushcutting-mulching industrial system to be installed on most excavators or other carriers with articulated masts. DAH brushcutter-mulchers are designed for vegetation control work.

  • MOTOR: Variable displacement, axial-piston motor that minimizes overheating and improves re-acceleration.
  • DRIVE: Industrial cogged-belt drive system that prevents slippage and reduces effort applied to bearings compared with V-belts, for longer bearing life
  • KNIVES: Heat-treated, bolt-on forged knives that deliver maximum resistance to impact and abrasion, and that can be sharpened right on the unit
  • EASY REPLACEMENT: A single nut and bolt holds the knife in place, making replacing worn knives easy
  • RINGS: Protective rings that limit the size of the bites and considerably reduce risks of breakage on the knife holders
  • TILT OPTION: New tilt option offers higher productivity owing to increased agressiveness.
  • REPLACEABLE LINER: Replaceable bolt-in liner increases the frame durability.
  • CHEVRON ROWS OF KNIVES: Two chevron-like rows of knives that help reduce vibration during operation
  • ALIGNED KNIFE CONFIGURATION: Smaller B-sized rotor have an aligned knives configuration to help with rotor suction.



Models

  • DAH-150Er
  • DAH-150E
  • DAH-125D
  • DAH-100C
  • DAH-080C
  • DAH-085B
  • DAH-065B
GENERAL INFORMATION
Manufacturer
Denis Cimaf
Model Year
Model
DAH Boom-Mounted Mulchers
Condition
NEW
Body
Excavator Class
DAH-150Er: 54,000-70,000 lbs. DAH-150R: 40,000-54,000 lbs. DAH-125F: 32,000-44,000 lbs. DAH-100C: 20,000-30,000 lbs. DAH-080C & DAH-085B: 15,000-22,000 lbs. DAH-065B: 11,000-15,000 lbs.
Number of Blades
DAH-150Er & DAH-150R: 21 (on Rotor) DAH-125F: 17 (on Rotor) DAH-100C & DAH-085B: 15 (on Rotor) DAH-080C & DAH-065B: 11 (on Rotor)
Target Material Diameter
DAH-150Er: 20” DAH-150R: 15” DAH-125F: 10” DAH-100C: 6” DAH-080C & DAH-085B: 4” DAH-065B: ≤4”
Dimensions
Width
DAH-150Er: 32” DAH-150R: 39” DAH-125F: 29” DAH-100C & DAH-080C: 30” DAH-085B & DAH-065B: 26”
Height
DAH-150Er: 43” DAH-150R: 44” DAH-125F & DAH-080C: 38” DAH-100C: 50” DAH-085B: 31” DAH-065B: 33”
Weight
DAH-150Er: 3,700 lbs. (typical, estimated); 4,640 lbs. (w/all options) DAH-150R: 3,400 lbs. (typical, estimated); 4,100 lbs. (w/all options) DAH-125F: 2,220 lbs. (typical, estimated); 2,900 lbs. (w/all options) DAH-100C: 1,570 lbs. (typical, estimated); 2,000 lbs. (w/all options) DAH-080C: 1,420 lbs. (typical, estimated); 1,830 lbs. (w/all options) DAH-085B: 1,120 lbs. (typical, estimated); 1,200 lbs. (w/all options) DAH-065B: 920 lbs. (typical, estimated); 1,000 lbs. (w/all options)
Rotor Diameter
DAH-150Er & DAH-150R: 20” DAH-125F: 18” DAH-100C & DAH-080C: 17” DAH-085B & DAH-065B: 14”
Exterior Length
DAH-150Er: 78” DAH-150R: 79” DAH-125F: 65” DAH-100C: 60” DAH-080C & DAH-085B: 47” DAH-065B: 39”
Hydraulic
Cylinders
DAH-150Er: 170 (Motor Max) DAH-150R & DAH-125F: 115 (Motor Max) DAH-100C: 85 (Motor Max) DAH-080C & DAH-085B: 60 (Motor Max) DAH-065B: 28 (Motor Max)
Operating Pressure
DAH-150Er: 6000 PSI DAH-150R, DAH-125F, DAH-100C: 5000 PSI DAH-080C, DAH-085B & DAH-065B: 4000 PSI
Rotation Speed
DAH-150Er, DAH-150R, DAH-125F, DAH-100C & DAH-080C: 3000 RPM (optimal) DAH-085B & DAH-065B: 4000 RPM (optimal)
Required Continuous Flow
DAH-150Er: 55 gal/min DAH-150R: 38 gal/min DAH-125F: 35 gal/min DAH-100C: 27 gal/min DAH-080C & DAH-085B: 20 gal/min DAH-065B: 14 gal/min
Pressure Line I.D.
DAH-150Er: 1.25” (#20 DAH-150R & DAH-125F: 1” (#16) DAH-100C: .75” (#12) DAH-080C, DAH-085B & DAH-065B: .625” (#10)
Return Line I.D.
DAH-150Er: 1.25” (#20) DAH-150R & DAH-125F: 1” (#16) DAH-100C: .75” (#12) DAH-080C, DAH-085B & DAH-065B: .625” (#10)
Drain Line
DAH-150Er, DAH-150R, DAH-125F & DAH-100C: .75” (#12) DAH-080C, DAH-085B & DAH-065B: .50” (#8)
Operational
Cutting Width
DAH-150Er & DAH-150R: 57” DAH-125F: 48” DAH-100C: 42” DAH-080C: 32” DAH-085B: 34” DAH-065B: 26”
Carrier Power
DAH-150Er: 192 HP & Up DAH-150R: 130 HP & Up DAH-125F: 80 HP & Up DAH-100C: 65 HP & Up DAH-080C & DAH-085B: 54 HP & Up DAH-065B: 50 HP & Up
Cutting Distance
DAH-150Er & DAH-150R: 1.07” (from Ground Level) DAH-125F: 1” (from Ground Level) DAH-100C, DAH-080C, DAH-085B & DAH-065B: .75” (from Ground Level)
