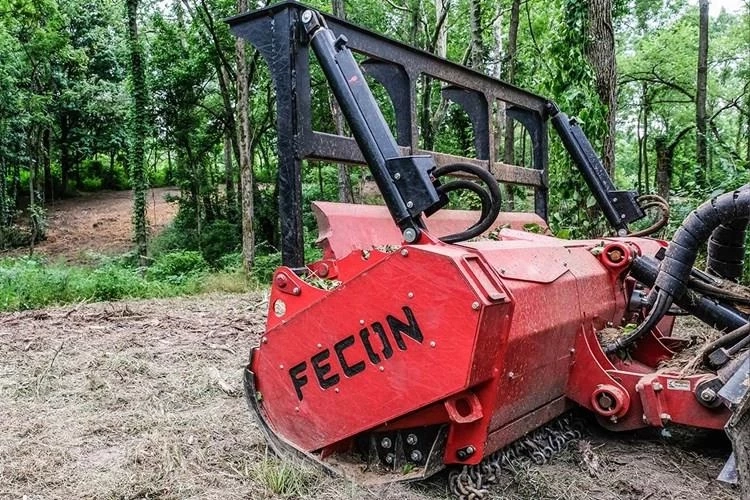

New Fecon Bull Hog Tractor Head 200+ HP Attachment for Sale

Hydraulic-driven Bull Hogs are configured to provide the best combination of cutting tools, width, weight, and driveline options for operation on open-loop, load sense, or closed-loop hydraulic systems up to 600 hp. Whether you prefer tracked or wheeled prime movers, big or small, to climb slopes, cross wetlands, or drive down paved roads, you can count on the proven reliability and performance of the Bull Hog.



Models

  • RK8620-3
  • RK8620-4
  • BH120H-3
  • BH120H-4
  • BH230HXD-3
  • BH230HXD-4
  • BH300HXD-3
  • BH300HXD-4
  • BH300HXD-5
Dimensions
Weight RK8620-3/BH120H-3: 4,800 lbs.
RK8620-4/BH120H-4: 4,950 lbs.
BH230HXD-3: 6,750 lbs.
BH230HXD-4: 6,850 lbs.
BH300HXD-3: 7,710 lbs.
BH300HXD-4: 7,850 lbs.
BH300HXD-5: 7,950 lbs.
Overall Width RK8620-3/RK8620-4: 101”
BH120H-3/BH120H-4: 101”
BH230HXD-3/BH230HXD-4: 117”
BH300HXD-3/BH300HXD-4/BH300HXD-5: 109”
Working Width RK8620-3/RK8620-4: 86”
BH120H-3/BH120H-4: 86”
BH230HXD-3/BH230HXD-4: 100”
BH300HXD-3/BH300HXD-4/BH300HXD-5: 89”
Engine
Horsepower 200+ HP
Flow Range RK8620-3/BH120H-3/BH230HXD-3: 50-105 GPM/190-398 LPH
RK8620-4/BH120H-4: 80-150 GPM/303-568 LPH
BH230HXD-4/BH300HXD-4: 100-150 GPM/379-568 LPH
BH300HXD-3: 80-105 GPM/303-398 LPH
BH300HXD-5: 180-210 GPM/681-210 LPH
Hydraulic
Motor RK8620-3/BH120H-3/BH230HXD-3/BH300HXD-3: 2 x 107V
RK8620-4/BH120H-4/BH230HXD-4/BH300HXD-4: 2 x 160V
BH300HXD-5: 2 x 250V
Operational
Number of Tools/Teeth RK8620-3/RK8620-4/BH120H-3/BH120H-4: 48 (standard rotor)/36 (DCR rotor)
BH230HXD-3/BH230HXD-4/BH300HXD-3/BH300HXD-4/BH300HXD-5: 48 (standard rotor)/42 (DCR rotor)
Maximum Pressure 6000 PSI
Rotor Speed RK8620-3/RK8620-4/BH120H-3/BH120H-4: 2000 RPM
BH230HXD-3/BH230HXD-4: 1800 RPM
BH300HXD-3/BH300HXD-4/BH300HXD-5: 1600 RPM
Rotor Diameter RK8620-3/RK8620-4/BH120H-3/BH120H-4/BH230HXD-3: 20”
BH230HXD-4: 22”
BH300HXD-3/BH300HXD-4/BH300HXD-5: 26”
Rotor Bearing Size RK8620-3/RK8620-4/BH120H-3/BH120H-4: SD65
BH230HXD-3/BH230HXD-4/BH300HXD-3/BH300HXD-4/BH300HXD-5: SD90
  • CLEAR THE WAY WITH FECON MULCHING EQUIPMENT
    • Leading with the strongest severe-duty body construction in the industry for extreme demands – offering heavy-duty solutions that stand the test of daily, full-time use over thousands of hours.
    • Fecon offers a free engineering evaluation for your carrier. Contact us for an evaluation today so that we can maximize the performance of your attachment to run off of the power and flow of your excavator mulching head.
    • Two rotor systems with many cutting tool options — Double Carbide, High Abrasion, Stone Tool, Viking Sword, and Viking Axe.
  • SPEED/TORQUE OPTIMIZATION
    • Optimize mulching performance with Fecon’s variable speed motor for hydraulic-powered Bull Hogs. Fecon’s variable speed feature automatically adjusts the Bull Hog’s motor displacement to maximize rotor speed and torque to changing material loads.
    • Under lighter material loads, the variable speed motor provides higher RPM, more bites per second, and finer material sizing. With heavier material loads, the variable speed motor delivers more rotor torque and staying power. This keeps the Bull Hog rotor turning where other heads would stall. The variable speed motor is field-tested and proven to provide substantial productivity.
  • BULL HOG STANDARD FEATURES
    • Adjustable pin-on push bar with serrated ears for directing material
    • Curved skid shoes are made from AR400 steel, can be adjusted for desired ground engagement, and allow for less plowing of material for more uniform final results.
    • The Bull Hog trap door helps contain debris and achieve finer sizing.
    • Standard pin-on and quick-attach mounts are available for many prime movers, and custom mounts can be easily provided upon request.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Fecon
MODEL Bull Hog Tractor Head 200+ HP

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Fecon Bull Hog Tractor Head 200+ HP

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Fecon Bull Hog Tractor Head 200+ HP Attachment for Sale

Hydraulic-driven Bull Hogs are configured to provide the best combination of cutting tools, width, weight, and driveline options for operation on open-loop, load sense, or closed-loop hydraulic systems up to 600 hp. Whether you prefer tracked or wheeled prime movers, big or small, to climb slopes, cross wetlands, or drive down paved roads, you can count on the proven reliability and performance of the Bull Hog.



Models

  • RK8620-3
  • RK8620-4
  • BH120H-3
  • BH120H-4
  • BH230HXD-3
  • BH230HXD-4
  • BH300HXD-3
  • BH300HXD-4
  • BH300HXD-5
GENERAL INFORMATION
Manufacturer
Fecon
Model Year
Model
Bull Hog Tractor Head 200+ HP
Condition
NEW
Dimensions
Weight
RK8620-3/BH120H-3: 4,800 lbs. RK8620-4/BH120H-4: 4,950 lbs. BH230HXD-3: 6,750 lbs. BH230HXD-4: 6,850 lbs. BH300HXD-3: 7,710 lbs. BH300HXD-4: 7,850 lbs. BH300HXD-5: 7,950 lbs.
Overall Width
RK8620-3/RK8620-4: 101” BH120H-3/BH120H-4: 101” BH230HXD-3/BH230HXD-4: 117” BH300HXD-3/BH300HXD-4/BH300HXD-5: 109”
Working Width
RK8620-3/RK8620-4: 86” BH120H-3/BH120H-4: 86” BH230HXD-3/BH230HXD-4: 100” BH300HXD-3/BH300HXD-4/BH300HXD-5: 89”
Engine
Horsepower
200+ HP
Flow Range
RK8620-3/BH120H-3/BH230HXD-3: 50-105 GPM/190-398 LPH RK8620-4/BH120H-4: 80-150 GPM/303-568 LPH BH230HXD-4/BH300HXD-4: 100-150 GPM/379-568 LPH BH300HXD-3: 80-105 GPM/303-398 LPH BH300HXD-5: 180-210 GPM/681-210 LPH
Hydraulic
Motor
RK8620-3/BH120H-3/BH230HXD-3/BH300HXD-3: 2 x 107V RK8620-4/BH120H-4/BH230HXD-4/BH300HXD-4: 2 x 160V BH300HXD-5: 2 x 250V
Operational
Number of Tools/Teeth
RK8620-3/RK8620-4/BH120H-3/BH120H-4: 48 (standard rotor)/36 (DCR rotor) BH230HXD-3/BH230HXD-4/BH300HXD-3/BH300HXD-4/BH300HXD-5: 48 (standard rotor)/42 (DCR rotor)
Maximum Pressure
6000 PSI
Rotor Speed
RK8620-3/RK8620-4/BH120H-3/BH120H-4: 2000 RPM BH230HXD-3/BH230HXD-4: 1800 RPM BH300HXD-3/BH300HXD-4/BH300HXD-5: 1600 RPM
Rotor Diameter
RK8620-3/RK8620-4/BH120H-3/BH120H-4/BH230HXD-3: 20” BH230HXD-4: 22” BH300HXD-3/BH300HXD-4/BH300HXD-5: 26”
Rotor Bearing Size
RK8620-3/RK8620-4/BH120H-3/BH120H-4: SD65 BH230HXD-3/BH230HXD-4/BH300HXD-3/BH300HXD-4/BH300HXD-5: SD90
