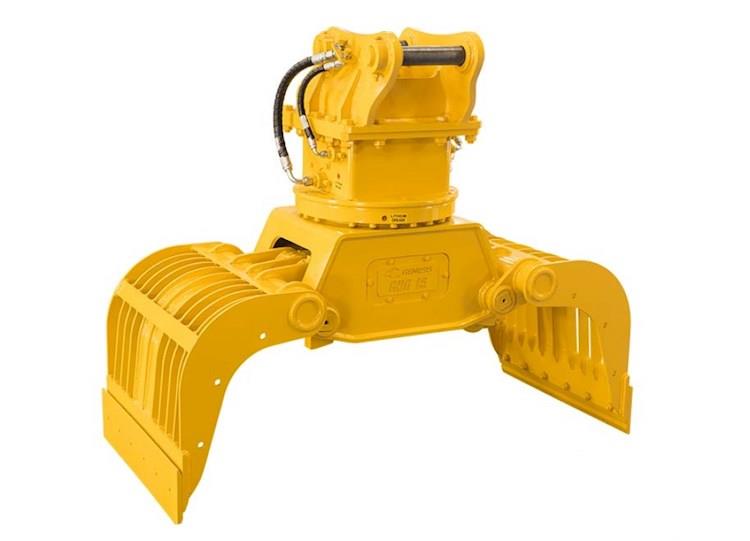

Genesis GHG Handling Grapple

Genesis Grapple for Sale

New Genesis GHG Handling Grapple for Sale

The Genesis Handling Grapple provides superior quality, durability and productivity in demolition, C&D, and waste handling applications.

The GHG features large jaw openings with high closing force to efficiently move material. The rigid frame with lasting wear resistance stands up to the demands of the demolition and material handling industries, while the powerful hydraulic rotation motor easily handles every load. This demolition and sorting grab is also engineered with fewer hydraulic component connections that are fully encased, simplifying maintenance.



The Genesis Handling Grapple provides superior quality, durability and productivity in demolition, C&D, and waste handling applications.

  • Oversized main pins combined with wear bushings and sealed with O-rings
  • Powerful hydraulic rotation motor
  • No case drain line needed
  • Hydraulic cylinder with cushion at the end of the opening

Models

  • GHG 16
  • GHG 20
  • GHG 25
  • GHG 30
  • GHG 40
  • GHG 50
Dimensions
Weight GHG 16: 1,929 lbs.
GHG 20: 2,712 lbs.
GHG 25: 3,197 lbs.
GHG 30: 4,079 lbs.
GHG 40: 4,519 lbs.
GHG 50: 5,512 lbs.
Min. Machine Size GHG 16: 10-16 mt
GHG 20: 14-20 mt
GHG 25: 16-26 mt
GHG 30: 18-30 mt
GHG 40: 25-40 mt
GHG 50: 35-50 mt
Operational
Capacity GHG 16: 0.6 yd³
GHG 20: 0.65 yd³
GHG 25: 0.8 yd³
GHG 30: 1 yd³
GHG 40: 1.2 yd³
GHG 50: 1.4 yd³
Application Waste Handling and Recycling
C&D Material Handling and Sorting
Primary Demolition
Jaw Open Width GHG 16: 73"
GHG 20: 81"
GHG 25: 85"
GHG 30/GHG 40: 95"
GHG 50: 96"
Jaw Open Height GHG 16: 49"
GHG 20: 51"
GHG 25: 52"
GHG 30/GHG 40: 58"
GHG 50: 61"
Jaw Closed Width GHG 16: 48"
GHG 20/GHG 25: 52"
GHG 30/GHG 40: 62"
GHG 50: 66"
Jaw Closed Height GHG 16: 54"
GHG 20: 57"
GHG 25: 59"
GHG 30/GHG 40/GHG 50: 65"
  • Oversized main pins combined with wear bushings and sealed with O-rings
  • Powerful hydraulic rotation motor
  • No case drain line needed
  • Hydraulic cylinder with cushion at the end of the opening
  • Hydraulic side connections
  • Easy maintenance
  • Easy accessibility for rotation speed adjustment
  • Pilot check valve prevents unexpected opening of the arms
  • High-wear areas manufactured of abrasion-resistant Hardox®
  • Cutters feature a hardness of 500HB
  • Break valves integrated into the hydraulic motor

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Genesis
MODEL GHG Handling Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Genesis GHG Handling Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Genesis GHG Handling Grapple for Sale

The Genesis Handling Grapple provides superior quality, durability and productivity in demolition, C&D, and waste handling applications.

The GHG features large jaw openings with high closing force to efficiently move material. The rigid frame with lasting wear resistance stands up to the demands of the demolition and material handling industries, while the powerful hydraulic rotation motor easily handles every load. This demolition and sorting grab is also engineered with fewer hydraulic component connections that are fully encased, simplifying maintenance.



The Genesis Handling Grapple provides superior quality, durability and productivity in demolition, C&D, and waste handling applications.

  • Oversized main pins combined with wear bushings and sealed with O-rings
  • Powerful hydraulic rotation motor
  • No case drain line needed
  • Hydraulic cylinder with cushion at the end of the opening

Models

  • GHG 16
  • GHG 20
  • GHG 25
  • GHG 30
  • GHG 40
  • GHG 50
GENERAL INFORMATION
Manufacturer
Genesis
Model Year
Model
GHG Handling Grapple
Condition
NEW
Dimensions
Weight
GHG 16: 1,929 lbs. GHG 20: 2,712 lbs. GHG 25: 3,197 lbs. GHG 30: 4,079 lbs. GHG 40: 4,519 lbs. GHG 50: 5,512 lbs.
Min. Machine Size
GHG 16: 10-16 mt GHG 20: 14-20 mt GHG 25: 16-26 mt GHG 30: 18-30 mt GHG 40: 25-40 mt GHG 50: 35-50 mt
Operational
Capacity
GHG 16: 0.6 yd³ GHG 20: 0.65 yd³ GHG 25: 0.8 yd³ GHG 30: 1 yd³ GHG 40: 1.2 yd³ GHG 50: 1.4 yd³
Application
Waste Handling and Recycling C&D Material Handling and Sorting Primary Demolition
Jaw Open Width
GHG 16: 73" GHG 20: 81" GHG 25: 85" GHG 30/GHG 40: 95" GHG 50: 96"
Jaw Open Height
GHG 16: 49" GHG 20: 51" GHG 25: 52" GHG 30/GHG 40: 58" GHG 50: 61"
Jaw Closed Width
GHG 16: 48" GHG 20/GHG 25: 52" GHG 30/GHG 40: 62" GHG 50: 66"
Jaw Closed Height
GHG 16: 54" GHG 20: 57" GHG 25: 59" GHG 30/GHG 40/GHG 50: 65"
