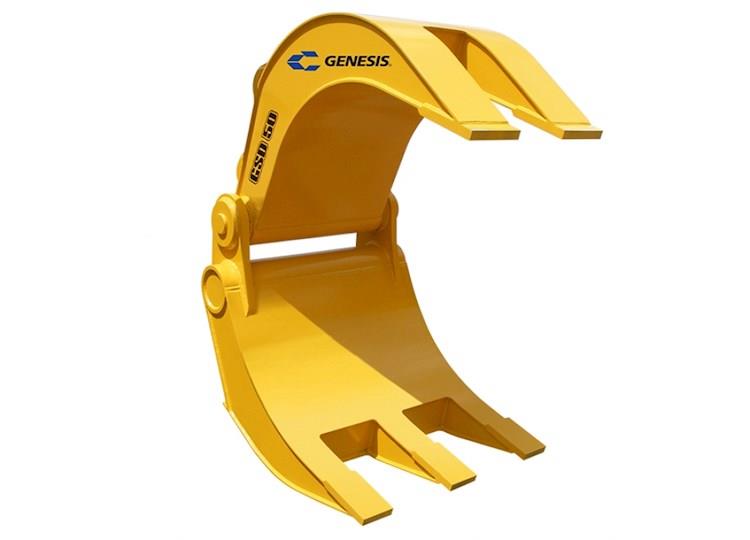

Genesis GSD Severe-Duty Grapple

New Grapple for Sale

New Genesis GSD Severe-Duty Grapple for Sale

The Genesis Severe-Duty Grapple is a scrap grapple and demolition grapple designed for maximum strength and durability.

Featuring high-strength steel tines for maximum load capacity and weld-in, replaceable, abrasion-resistant Hardox® steel tine tips, the GSD maximizes productivity while simplifying maintenance and is established as a versatile tool for a wide range of applications including rip-rap handling, road building and reconstruction, waste handling, C & D sorting and land clearing.

The Genesis Severe-Duty Grapple is a scrap grapple and demolition grapple designed for maximum strength and durability.

  • Boxed tine construction creates a very high strength and lightweight grapple – each tine will withstand the full breakout force of an excavator
  • Recessed welds are protected from wear, increasing grapple life
  • Patented pivot group features a large pivot shaft, and bearings provide long-term durability



Models

  • GSD 10
  • GSD 30
  • GSD 40
  • GSD 50
  • GSD 70
  • GSD 90
  • GSD 140
  • GSD 170
  • GSD 250
Dimensions
Weight GSD 10: 555 lbs.
GSD 30: 2,110 lbs.
GSD 40: 2,620 lbs.
GSD 50: 3,300 lbs.
GSD 70: 4,430 lbs.
GSD 90: 5,950 lbs.
GSD 140: 7,500 lbs.
GSD 170: 9,600 lbs.
GSD 250: 16,500 lbs.
Excavator Weight GSD 10: 10,000-20,000 lbs.
GSD 30: 24,000-30,000 lbs.
GSD 40: 30,000-40,000 lbs.
GSD 50: 35,000-65,000 lbs.
GSD 70: 65,000-85,000 lbs.
GSD 90: 85,000-120,000 lbs.
GSD 140: 120,000-170,000 lbs.
GSD 170: 170,000-220,000 lbs.
GSD 250: 220,000-280,000 lbs.
Operational
Capacity GSD 10: 0.5-0.8 yd³
GSD 30: 1.5-2.5 yd³
GSD 40: 2.0-3.0 yd³
GSD 50: 3.0-4.0 yd³
GSD 70: 3.5-4.5 yd³
GSD 90: 4.5-6.5 yd³
GSD 140: 6.5-7.5 yd³
GSD 170: 7.5-10.0 yd³
GSD 250: 8.5-12.0 yd³
Application Demolition
Scrap Handling & Compaction
Rip-Rap Handling
Road Building & Reconstruction
C&D Sorting
Land Clearing
Jaw Opening GSD 10: 64”
GSD 30: 84”
GSD 40: 92”
GSD 50: 99”
GSD 70: 121”
GSD 90: 131”
GSD 140: 140”
GSD 170/GSD 250: 150”
Jaw Width GSD 10: 13” (moveable)/22” (lower)
GSD 30: 21” (moveable)/35” (lower)
GSD 40: 26” (moveable)/38” (lower)
GSD 50/GSD 70: 30” (moveable)/44” (lower)
GSD 90/GSD 140: 34” (moveable)/50” (lower)
GSD 170: 40” (moveable)/58” (lower)
GSD 250: 40” (moveable)/68” (lower)
Jaw Closed GSD 10: 7"
GSD 30: 8"
GSD 40: 9"
GSD 50: 10"
GSD 70/GSD 90: 12"
GSD 140: 15"
GSD 170/GSD 250: 16"
  • Replaceable tine tips are abrasion-resistant Hardox® steel
  • Boxed-tine construction creates a very high strength and lightweight grapple – each tine will withstand the full breakout force of the excavator
  • Recessed welds are protected from wear, increasing grapple life
  • Patented pivot group features a large pivot shaft, and bearings provide long-term durability
  • Stiff arm and mounting pad Included

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Genesis
MODEL GSD Severe-Duty Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Genesis GSD Severe-Duty Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Genesis GSD Severe-Duty Grapple for Sale

The Genesis Severe-Duty Grapple is a scrap grapple and demolition grapple designed for maximum strength and durability.

Featuring high-strength steel tines for maximum load capacity and weld-in, replaceable, abrasion-resistant Hardox® steel tine tips, the GSD maximizes productivity while simplifying maintenance and is established as a versatile tool for a wide range of applications including rip-rap handling, road building and reconstruction, waste handling, C & D sorting and land clearing.

The Genesis Severe-Duty Grapple is a scrap grapple and demolition grapple designed for maximum strength and durability.

  • Boxed tine construction creates a very high strength and lightweight grapple – each tine will withstand the full breakout force of an excavator
  • Recessed welds are protected from wear, increasing grapple life
  • Patented pivot group features a large pivot shaft, and bearings provide long-term durability



Models

  • GSD 10
  • GSD 30
  • GSD 40
  • GSD 50
  • GSD 70
  • GSD 90
  • GSD 140
  • GSD 170
  • GSD 250
GENERAL INFORMATION
Manufacturer
Genesis
Model Year
Model
GSD Severe-Duty Grapple
Condition
NEW
Dimensions
Weight
GSD 10: 555 lbs. GSD 30: 2,110 lbs. GSD 40: 2,620 lbs. GSD 50: 3,300 lbs. GSD 70: 4,430 lbs. GSD 90: 5,950 lbs. GSD 140: 7,500 lbs. GSD 170: 9,600 lbs. GSD 250: 16,500 lbs.
Excavator Weight
GSD 10: 10,000-20,000 lbs. GSD 30: 24,000-30,000 lbs. GSD 40: 30,000-40,000 lbs. GSD 50: 35,000-65,000 lbs. GSD 70: 65,000-85,000 lbs. GSD 90: 85,000-120,000 lbs. GSD 140: 120,000-170,000 lbs. GSD 170: 170,000-220,000 lbs. GSD 250: 220,000-280,000 lbs.
Operational
Capacity
GSD 10: 0.5-0.8 yd³ GSD 30: 1.5-2.5 yd³ GSD 40: 2.0-3.0 yd³ GSD 50: 3.0-4.0 yd³ GSD 70: 3.5-4.5 yd³ GSD 90: 4.5-6.5 yd³ GSD 140: 6.5-7.5 yd³ GSD 170: 7.5-10.0 yd³ GSD 250: 8.5-12.0 yd³
Application
Demolition Scrap Handling & Compaction Rip-Rap Handling Road Building & Reconstruction C&D Sorting Land Clearing
Jaw Opening
GSD 10: 64” GSD 30: 84” GSD 40: 92” GSD 50: 99” GSD 70: 121” GSD 90: 131” GSD 140: 140” GSD 170/GSD 250: 150”
Jaw Width
GSD 10: 13” (moveable)/22” (lower) GSD 30: 21” (moveable)/35” (lower) GSD 40: 26” (moveable)/38” (lower) GSD 50/GSD 70: 30” (moveable)/44” (lower) GSD 90/GSD 140: 34” (moveable)/50” (lower) GSD 170: 40” (moveable)/58” (lower) GSD 250: 40” (moveable)/68” (lower)
Jaw Closed
GSD 10: 7" GSD 30: 8" GSD 40: 9" GSD 50: 10" GSD 70/GSD 90: 12" GSD 140: 15" GSD 170/GSD 250: 16"
