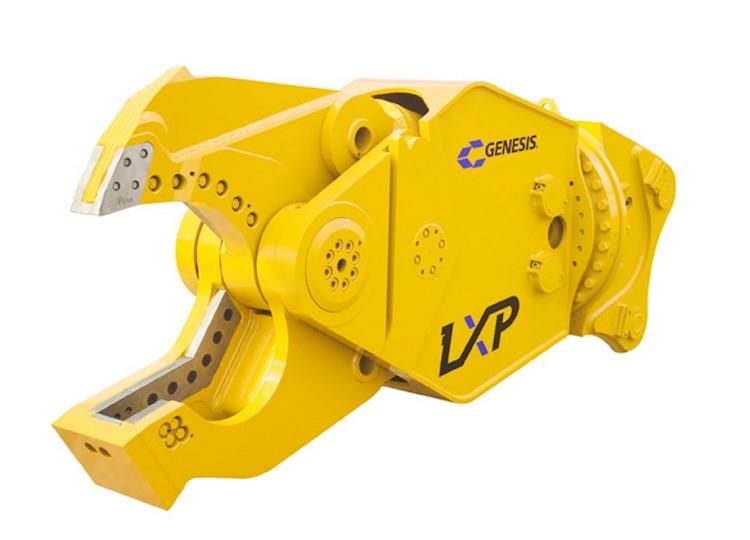

Genesis LXP with Shear Jaw

New Genesis Shear Jaw for Sale

New Genesis LXP with Shear Jaw for Sale

The LXP® is a multi-jaw processor with a shear jaw for cutting steel, rebar and aluminum in demolition applications.

Featuring a patented bolt-on piercing tip that is replaced in minutes without grinding or welding, this demolition shear’s four-way indexable guide blades, razor blade and primary blades provide four useable cutting edges for longer life and reduced maintenance.

The LXP® multi-jaw demolition attachment is also available with concrete cracker or pulverizer jaws. Each jaw set's integrated, patented pivot group is configured to deliver the perfect power curve for its primary application, including general and bridge demolition, and the heavy-duty pivot design provides structural strength and long-term durability.

The Genesis LXP® is a multi-jaw processor with a shear jaw for cutting steel, rebar and aluminum in demolition applications.

  • Patented bolt-on piercing tip is replaced in minutes without grinding or welding
  • Patented pivot geometry creates peak power for piercing and cutting
  • Four-way indexable guide blades, razor blade and primary blades provide four useable cutting edges
  • Proprietary regeneration valve improves cycle time by up to 33%

Models

  • LXP 200 Shear
  • LXP 200 CC
  • LXP 200 CP
  • LXP 300 Shear
  • LXP 300 CC
  • LXP 300 CP
  • LXP 400 Shear
  • LXP 400 CC
  • LXP 400 CP
  • LXP 500 Shear
  • LXP 500 CC
  • LXP 500 CP
  • LXP 800 Shear
  • LXP 800 CC
  • LXP 800 CP
Dimensions
Weight LXP 200 Shear: 5,370 lbs.
LXP 200 CC: 5,650 lbs.
LXP 200 CP: 5,670 lbs.
LXP 300 Shear: 7,600 lbs.
LXP 300 CC: 7,560 lbs.
LXP 300 CP: 7,270 lbs.
LXP 400 Shear: 11,065 lbs.
LXP 400 CC: 11,145 lbs.
LXP 400 CP: 11,255 lbs.
LXP 500 Shear: 12,905 lbs.
LXP 500 CC: 12,715 lbs.
LXP 500 CP: 12,205 lbs.
LXP 800 Shear: 17,500 lbs.
LXP 800 CC: 17,600 lbs.
LXP 800 CP: 17,720 lbs.
Reach LXP 200 Shear/LXP 200 CC/LXP 200 CP: 8’
LXP 300 Shear/LXP 300 CC/LXP 300 CP: 8’6”
LXP 400 Shear/LXP 400 CC/LXP 400 CP: 9’6”
LXP 500 Shear/LXP 500 CC/LXP 500 CP: 9’11”
LXP 800 Shear/LXP 800 CC/LXP 800 CP: 11’8”
Min. Excavator Wt. Boom Mount LXP 200 Shear/LXP 200 CC/LXP 200 CP: 20,000 lbs.
LXP 300 Shear/LXP 300 CC/LXP 300 CP: 45,000 lbs.
LXP 400 Shear/LXP 400 CC/LXP 400 CP: 60,000 lbs.
LXP 500 Shear/LXP 500 CC/LXP 500 CP: 70,000 lbs.
LXP 800 Shear/LXP 800 CC/LXP 800 CP: 90,000 lbs.
Min. Excavator Wt. Stick Mount LXP 200 Shear/LXP 200 CC/LXP 200 CP: 45,000 lbs.
LXP 300 Shear/LXP 300 CC/LXP 300 CP: 70,000 lbs.
LXP 400 Shear/LXP 400 CC/LXP 400 CP: 100,000 lbs.
LXP 500 Shear/LXP 500 CC/LXP 500 CP: 120,000 lbs.
LXP 800 Shear/LXP 800 CC/LXP 800 CP: 150,000 lbs.
Operational
Application Demolition
Structural Steel
Wire
Copper
Bridge Demolition
Rebar
Aluminum
Jaw Opening LXP 200 Shear: 17”
LXP 200 CC: 38”
LXP 200 CP: 29”
LXP 300 Shear: 22”
LXP 300 CC: 43”
LXP 300 CP: 35”
LXP 400 Shear: 24”
LXP 400 CC: 47”
LXP 400 CP: 38”
LXP 500 Shear: 27”
LXP 500 CC: 51”
LXP 500 CP: 43”
LXP 800 Shear: 40”
LXP 800 CC: 71”
LXP 800 CP: 61”
Jaw Depth LXP 200 Shear: 19”
LXP 200 CC: 28”
LXP 200 CP: 24”
LXP 300 Shear: 24”
LXP 300 CC: 30”
LXP 300 CP: 26”
LXP 400 Shear: 27”
LXP 400 CC: 33.5”
LXP 400 CP: 30”
LXP 500 Shear: 28”
LXP 500 CC: 34.5”
LXP 500 CP: 31”
LXP 800 Shear: 35”
LXP 800 CC: 50”
LXP 800 CP: 39”
  • Jaw change-outs in 15 minutes with the coupler style connection system, hydraulically activated lock pin, jaws that stay intact and a stand with every jaw set – safe, easy and fast
  • Proprietary regeneration valve improves cycle time by up to 33% compared to standard hydraulic systems
  • Patented pivot system provides a power curve to match the jaw’s primary application:
    • Peak power at pierce for shear jaw
    • Peak power at fully open for cracker and pulverizer jaws
  • Each jaw’s pivot group stays intact, allowing the use of a press fit design for a stronger, more durable product.
  • Heavy-duty pivot design with recessed caps provides structural strength and long-term durability
  • Reverse mounted cylinders protect the rods from debris
  • Enclosed structure adds strength and rigidity while protecting the cylinders
  • Shear Jaws:
    • Patented bolt-on piercing tip is replaced in minutes without grinding or welding
    • Exclusive dual guide blade system accommodates heat expansion at the tip while maintaining tighter tolerances where the primary cutting blades pass (300 - 800 models only)
    • Four-way indexable guide blades, razor blade and primary blades provide four useable cutting edges
  • Cracker Jaws
    • Teeth are easy to change and fully protect the parent material, eliminating the need for build-up and hard surfacing (200 - 500 models only)
    • Bolt-on teeth and blades reduce maintenance and downtime (800 model only)
    • Cracker tips concentrate force for a greater ability to crush through heavy concrete
    • Indexable blades provide two useable cutting edges
  • Pulverizer Jaws
    • Bolt-on tooth bed features a fully replaceable crushing surface, eliminating the need for welding (200 - 500 models only)
    • Bolt-on teeth reduce maintenance and downtime (800 model only)
    • Extended wear plates aid in positioning concrete for processing
    • Tips concentrate force for a greater ability to crush through heavy concrete
