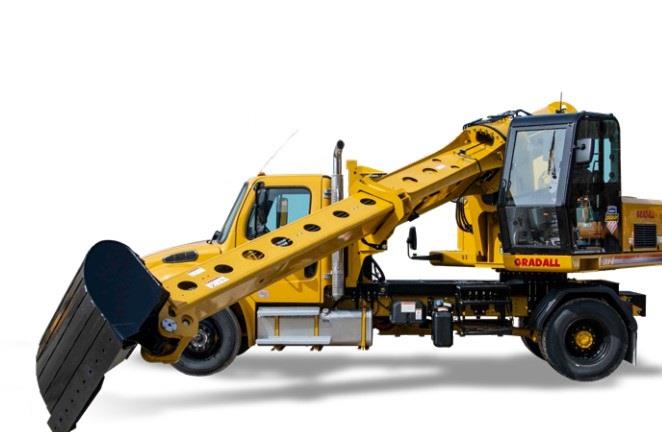

New Gradall D 172 Crossover Series Excavator for Sale Designed to fit tight government budgets: With Gradall’s world-famous full tilting, telescoping boom and a Freightliner truck chassis, you can complete more work in more places in a single day. Without the need for a lowboy trailer, quickly drive the excavator out to more job sites and then back to the safety of the equipment yard — all at highway speeds.
|
| Body | |
|---|---|
| Cab | All-weather cab isolated from frame on rubber mounts Tinted safety glass windows Skylight Acoustical lining Four-way adjustable seat Dome light Heat source is provided by a fast response, closed circuit hydraulic heater with 20,000 BTU/Hr. capacity Front window slides to overhead storage Rearview mirrors on right and left sides of the machine Windshield wiper and washer Operator’s seat belt |
| Steering | Integral hydraulic power steering |
| Wheels | Hub piloted disc 10-stud 11.25” bolt circle |
| Heater/Defroster/Air Conditioning | Filtered air heater and defroster; air conditioning |
| Radio | AM/FM radio |
| Dimensions | |
|---|---|
| Length | 27’1” (w/bucket) |
| Width | 102” |
| Height | 12’3” (w/bucket) |
| Weight | 32,200 lbs. |
| Wheelbase | 15’10” |
| Ground Clearance | 10” |
| Operating Weight | 32,200 lbs. |
| Fuel Tank Capacity | 80 Gallons |
| Transport Length | 27’1” (w/bucket) |
| Transport Height | 12’3” (w/bucket) |
| Transport Width | 8’6” (w/bucket) |
| Engine | |
|---|---|
| Engine Make | Cummins |
| Engine Model | ISB 6.7 |
| Horsepower | 300 HP |
| Gears | 1st: 10.6 MPH 2nd: 21.7 MPH 3rd: 31.6 MPH 4th: 48.7 MPH 5th: 60 MPH REV: 9.74 MPH |
| Electrical System | 12 volt, 160 amp alternator with integral voltage regulator. 2 SAE Group 31 1900 CCA batteries |
| Rated RPM | 2600 RPM |
| Air Filter | 2-stage dry type with safety element, ejector valve and service indicator |
| Filtration System | 5 micron return filter 10 micron pilot filter Fin and tube-type oil cooler w/thermostatically controlled cooling fan Pressure-compensated, load-sensing valves w/circuit reliefs in all circuits |
| DEF Tank Capacity | 13 Gallons |
| Drivetrain | |
|---|---|
| Drive | 4 x 2 |
| Transmission | Allison 3500 RDS automatic |
| Brakes | Front: Meritor “Q+” Series --Cam-Master Size: 16.5” x 5” --ABS Brakes --Automatic slack adjusters Rear: Meritor “Q+” Series --Cam-Master Size: 15.5” x 7” --Automatic slack adjusters Spring brake system incorporates emergency and parking brakes on the rear axle |
| Suspension | Front: leaf springs w/automatic lock-out cylinders Rear: solid mount |
| Tires | Front: 275/80R22.5 16-ply highway traction tread Rear: M/S11R22.5 14-ply mud and snow traction tread |
| Hydraulic | |
|---|---|
| Pump | One load-sensing bent axis piston pump; 0-58 GPM total |
| Operating Pressure | Hoist: 3,800 PSI Tilt: 2,500 PSI Swing: 3,800 PSI Tool: 3,800 PSI Telescope: 3,800 PSI Pilot System: 550 PSI |
| Hydraulic Cylinders | 2 hoist cylinders: 3.25” bore x 2.25” rod x 28.5” stroke 1 tool cylinder: 4.5” bore x 2.5” rod x 18.88” stroke 1 boom cylinder: 3.25” bore x 2.25” rod x 123” stroke |
| Oil Capacity | Reservoir: 62 Gallons System: 68 Gallons Pressurized reservoir w/visual oil level gauge |
| Hydraulic Motors | 2 Hydraulic Motors: Swing-51 HP & Tilt-21 HP |
| Operational | |
|---|---|
| Dig Depth | 13’6” |
| Bucket Breakout Force | 11,400 lbs. |
| Front Axle | 14,320 lbs. |
| Rear Axle | 23,000 lbs. 6.43 ration Single reduction w/driver controlled differential lock |
| Travel Speed - Forward | 60 MPH |
| Lift Capacity | 5,490 lbs. |
| Gross Vehicle Wt Rating (GVWR) | 37,320 lbs. |
| Max. Load @ Full Height | 16’4” |
| Swing | Priority swing circuit with axial piston motor Planetary transmission |
| Max. Radius | 24’11” (at Groundline) |
| Boom Telescope | 10’3” |
| Boom Tilt | 220° |
| Boom Force | 16,387 lb. |
| Bucket Pivot Angle | 165° |
| Swing Speed | 8 RPM |
| Swing Clearance | 6’7” |
| Max. Work Height | 14’1” (boom below grade) |
| Gross Vehicle Axle Rating | 37,700 lbs. |
| Boom Pivot Angle | 90° boom pivot angle 30° Up & 60° Down |
| Bucket Tilt | 110° |
| Swing Brake | Automatic spring-set/hydraulic release wet-disc swing brake Dynamic braking is provided by the hydraulic system |
| Intake | Electric grid air warmer |
| Bucket Cleanup | 6'8" |
| Swing Lane Clearance | 10'8" |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Gradall |
| MODEL | D 172 |
