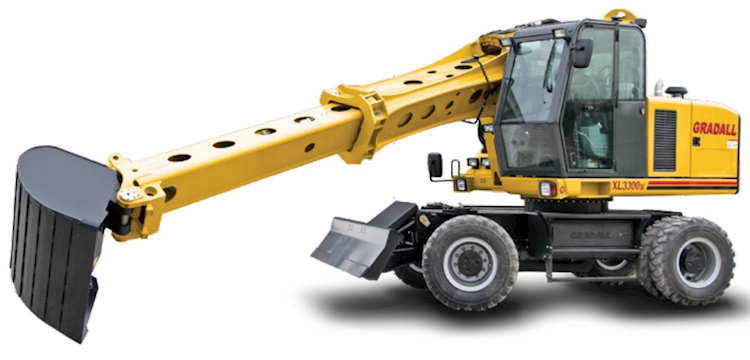

New Gradall XL 3300 V Rough Terrain Wheeled Excavator for Sale

Sure-footed like a conventional crawler, but mobile on pavement as well as dirt, Gradall continues its tradition of designing and building rubber tire excavators with superior productivity as well as versatility.
Dimensions
Length 24’3” (Travel position w/bucket open)
20’11” (Travel position wo/bucket)
24’6” (Shipment position w/bucket open)
21’9” (Shipment position w/bucket closed)
21’3” (Shipment position wo/bucket)
Width 8 ft. 6 in. (2.6 m)
Height 12’10” (Travel position w/bucket open)
11’10” (Travel position wo/bucket)
11’6” (Shipment position w/bucket open)
10’11” (Shipment position wo/bucket)
Weight 39,294 lbs.
Wheelbase 8 ft. 9 in. (2.7 m) undercarriage
Ground Clearance 11 in. (275 mm)
Turning Radius 25 ft. 1 in. (7.65 m)
Fuel Tank Capacity 99 gal. (375 l)
Transport Length 24’6”
Transport Height 12’10”
Transport Width 8’6”
Maximum Slope 30°
Engine
Drive Type Motor: Rexroth A6 Series, 160cc/Rev
Engine Make Volvo
Engine Model TAD571 VE
Engine Type Tier 4f 5.1L
Cylinders Inline 4
Horsepower 172 HP
Net Horsepower 152 HP
Cooling Liquid
Torque 590 ft. lbs.
Air Cleaner 2-stage, dry type
Fuel Type Diesel
Rated Speed 2000
Rated RPM 2000 RPM
Cycles 4
Filtration System 10 micron return filter
10 micron pilot filter
Fin and tube-type oil cooler with thermal by-pass and relief valves
Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Drive 4x4
Axles ZF Model 3070 (FTF 2090)
Transmission ZF Model HL 290
Starter 24 volt starter
Brakes Axles: internal wet-disc type service brakes
Tires 10.00 x 20 Super-Lug
Gradeability 58%
Alternator 100 amp alternator
Hydraulic
Pump One load-sensing, axial piston pump
Tandem gear pump (steering, brake/pilot)
Std Pump Flow Oil flow: 0-110 GPM
Steering Tandem: 10 GPM
Brake/Pilot Tandem: 6 GPM
Operating Pressure Hoist: 4,900 PSI
Tilt: 2,500 PSI
Swing: 3,000 PSI
Tool: 4,900 PSI
Telescope: 4,900 PSI
Propel: 4,900 PSI
Pilot System: 550 PSI
Braking & Steering: 2,400 PSI
Blade & Stabilizers: 4,000 PSI
Hydraulic Cylinders Six cylinders:
One tool cylinder: 4.25” ID, 3” rod, 25.9” stroke
Two hoist cylinders: 3.50” ID, 2.559” rod, 31.0” stroke
One telescope: 3.5” ID, 2.559” rod, 12’6” stroke
Two single-acting axle oscillation cylinders: 4.528” ID, 4.528” rod, 6.25” stroke
Oil Capacity 65 Gallons
Hydraulic Motors Swing: 51 HP
Tilt: 21 HP
Propel: 113 HP
Operational
Dig Depth 18’5”
Bucket Breakout Force 19,300 lbs.
Outriggers 2,720 lbs.
Travel Speed - Forward 5.7 mph (Standard Mode First Gear)
20 mph (Standard Mode Second Gear)
1.8 mph (Creeper Mode First Gear)
6.3 mph (Creeper Mode Second Gear)
Lift Capacity 8,150 lbs.
Blade 1,480 lbs.
Boom Lift Capacity 8,150 lbs.
Max. Load @ Full Height 15’6”
Swing Priority swing circuit with axial piston motor
Planetary transmission
Max. Radius 27’3” (groundline)
Boom Telescope 11’0”
Boom Tilt 220 Degrees
Boom Force 22,075 lbs.
Bucket Pivot Angle 165 Degrees
System Monitor Electronic monitor in cab indicates:
Low hydraulic fluid level
High hydraulic fluid temperature
System working pressure
System pilot pressure
Swing Speed 8 RPM
Swing Clearance 7’6”
Max. Work Height 14’9”
Boom Pivot Angle 105°; 30° up and 75° down
Swing Brake Automatic spring-set/hydraulic release wet disc parking brake
Dynamic braking provided by the hydraulic system
Battery
Voltage 12V
Amps 100A
Battery Two SAE #C31-S 1000 CCA batteries



  • CHASSIS DESIGN
    • Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
    • Over-the-road highway speed travel at 20 mph with full time four-wheel-drive
    • Carriers available with 4 x 2 or 6 x 4 drive, with optional 4 x 4 and 6 x 6.
    • Oscillation lock cylinders and strong box plate frame construction provide stable work platform
    • Work at front, rear or side of chassis without the need for outriggers
    • Variable displacement high torque piston motor powers two-speed power shift-on-the-fly transmission
  • BOOM
    • Full boom tilts 220° (optional 360°) for efficient sloping, grading and spreading material
    • No loss of power to attachment tilting capability
    • Consistent boom force through the entire dig cycle
    • Dig down at 75° angle
    • Rugged boom telescopes out to 33’ 10”
    • Low profile for work under bridges, trees and in tunnels
    • Full-length boom visibility during the entire dig cycle
    • Fast cycle times for ditching, loading and spreading
    • Quick attach bolt system handles full range of attachments
  • OPERATOR CAB
    • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
    • Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
    • Internal tooth swing bearing provides smooth, stable movement
    • With foot pedals, reposition carrier at speeds up to 20 mph
    • Excellent visibility of the boom through the entire dig cycle
    • Standard air conditioning
    • Removable, stowable front window brings fresh air into the cab
  • ADVANCED SYSTEMS
    • High performance, high reliability 24-volt electrical system
    • Legendary Bosch Rexroth design and reliability
    • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves, providing additional fuel-saving advantages
  • EXCAVATOR
    • Short tail swing won't obstruct traffic
    • Stable digging platform for work in any direction, without need to stop and lower outriggers
    • Triangular telescoping boom design, with full power through the entire dig cycle
    • Cycle speeds comparable or exceeding conventional excavators
    • Electronic joysticks provide precise control over boom and attachment positioning
  • CHASSIS DESIGN
    • Optional blade and outriggers available
  • OPERATOR CAB
    • Optional rollover protection
  • UNDERCARRIAGE
    • Optional stabilizer or blade
  • OPTIONAL EQUIPMENT
    • Vandalism protection kit including window covers
    • Strobe light
    • ROPS protective cab
