Gradall XL 4100 V

Gradall XL 4100 V

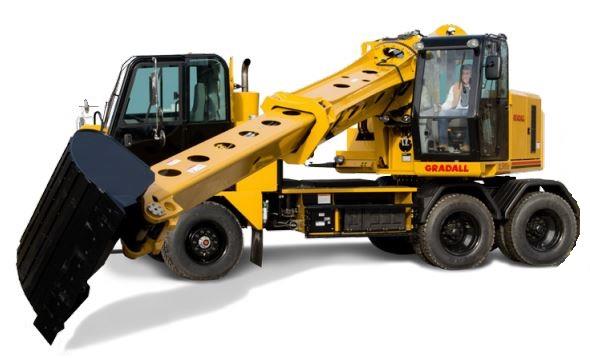

New Gradall XL 4100 V Highway Speed Wheeled Excavator for Sale

Highway-speed Gradall excavators travel quickly to one or more jobsites and then back to the safety of the equipment yard at the end of the day. Leave $100,000 worth of equipment – your lowboy trailer and truck – back in the equipment yard while you complete more work with fewer men and machines.
Body
Chassis Three aluminum bar-plate type coolers stacked vertically
Air to air intake charge air cooler, radiator and transmission cooler
All coolers backed by a molded fan shroud, engine mounted fan ring and 26.8” 9-blade fan driven by a Volvo electronically controlled variable speed fan drive
Cab One-person cab, left-hand mount, isolated from frame on rubber mounts. Acoustical lining. Sun visor. Gauges for oil pressure, coolant temperature, air tank pressures, fuel level, DEF level, voltmeter, speedometer with odometer, tachometer with hour meter. Engine and transmission monitor lights. Engine shutdown controlled by engine electronics. Indicator lights and controls for front axle engagement (6 x 6 only) and rear axle differential lock. Park brake control. Tinted safety glass. Sliding side windows. Fresh air heater and defroster. Dome light. Air suspension seat with seat belt. Vent in door.
Frame 48” (1.2m) wide, welded plate design 65 ksi material
Steering Ross, integral hydraulic power steering
Gear-type power steering pump
Four-quart power steering reservoir with filter
10 micron pre-filter
Wheels Hub piloted disc
10-stud, 11.25” bolt circle
Dimensions
Length 25’1” (wo/bucket)
29’6” (w/bucket)
Width 8’6”
Height 11’9” (6 x 4 w/bucket)
12’0” (6 x 6 w/bucket)
10’11” (6 x 4 wo/bucket)
11’3” (6 x 6 wo/bucket)
Weight 49,684 lbs.
Wheelbase 14’2”
Ground Clearance 10”
Fuel Tank Capacity 100 gallons
Transport Length 29’6” (w/bucket)
Transport Height 11’9”
Transport Width 8’6” (w/bucket)
Depth 19’3” (6 x 4)
19’ (6 x 6)
Working Height Loading-17’2” & Work-15’0”
Engine
Drive Type 6x4 or 6x6
Engine Make Volvo
Engine Model TAD871VE Tier 4f 7.7L
Engine Type Diesel
Horsepower 248 HP @ 2200 rpm
Electrical System 24 volt, 110 amp alternator with integral voltage regulator, two SAE #C31-S 1000 CCA batteries
Rated RPM 2200
Cycles 4
Air Filter Two-stage Donaldson PSD PowerCore with high efficiency pre-cleaner, vacuator value and remote service indicator
Filtration System 5 micron return filter with magnet
10 micron pilot filter
Fin and tube-type oil cooler with thermostatically controlled cooling fan
Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Number of Speeds Gear Speed 1: 6.3 mph
Gear Speed 2: 16.2 mph
Gear Speed 3: 24.1 mph
Gear Speed 4: 37.4 mph
Gear Speed 5: 50.6 mph
Gear Speed 6: 59.9 mph
Drive 6 x 4 or 6 x 6
Axles Front Axles:
6 x 4: Meritor Model MFS-16-122A, 16,000 lb (7,257 kg) rating
6 x 6: Meritor Model MX19-145, 19,000 lb (8,618 kg) rating, 7.17 ratio
Rear Axle:
Meritor Model RT-50-160, 50,000 lb. rating. 7.17 ratio
Single reduction with driver controlled differential lock in front/rear
Inter-axle differential with lock
Transmission Type 6-speed Automatic
Transmission Allison 3500 RDS
Brakes 6 x 4 Front: Meritor “Q” Plus Series
Cam-Master Size: 16.5” x 5”
Automatic slack adjusters
6 x 6 Front: Meritor “Q” Series
Cam-Master Size: 16.5” x 6”
Automatic Slack Adjusters.
Rear: Meritor “P” Series
Cam-Master Size: 16.5” x 7”
Automatic slack adjusters
Spring brake system incorporates emergency and parking brakes on rear axle
Heated air dryer
Suspension Front: Eight leaf spring with automatic lock-out cylinders
Rear: Hendrickson Equalizer Beam, 8” oscillation
Tires 6 x 4 front: 385/65R22.5 LR (J) on/off highway tread
6 x 6 front: 425/65R22.5 LR (L) on/off highway tread
6 x 4 and 6 x 6 rear: 11R24.5 LR (H) on/off highway tread
Hydraulic
Pump One load-sensing axial piston pump, 0-77 gpm (0-291 L/min) total
One gear pump (pilot and cooling), 11 gpm (41 L/min)
Operating Pressure Hoist-4,800 PSI
Tilt-2,500 PSI
Swing-4,200 PSI
Tool-4,800 PSI
Telescope-4,800 PSI
Remote Propel-4,800 PSI
Pilot System-500 PSI
Hydraulic Cylinders Four Double Acting Cylinders
One boom cylinder: 3.5” bore x 2.56” rod x 150” stroke
Two hoist cylinders: 4.25” bore x 3.15” rod x 31” stroke
One tool cylinder: 5.0” bore x 3.0” rod x 25.9” stroke
Oil Capacity Reservoir: 50 Gallons
System: 70 Gallons
Hydraulic Motors Three Hydraulic Motors
Swing, 64 hp (48kW)
Tilt, 21 hp (16 kW)
Remote drive, 110 hp (82 kW) total
Operational
Bucket Width 8’6” (Transport width w/bucket)
Dig Depth 20’3”
Bucket Breakout Force 24,900 lbs.
Travel Speed - Forward 59.9 mph
Lift Capacity 12,130 lbs.
Boom Lift Capacity 12,130 lbs.
Max. Load @ Full Height 17’2”
Max Capacity 12,130 lb
Max. Radius At Groundline: 30’3”
Boom Telescope 12’6”
Boom Tilt 220˚
Boom Force 21,940 lbs. (rated)
Bucket Pivot Angle 165˚
Bucket Length 29’6” (Transport length w/bucket)
Bucket Height 11’9” (Transport height w/bucket)
Swing Speed 8.0 RPM
Swing Clearance 8’0”
Max. Work Height 15’0”
Gross Vehicle Axle Rating 66,000 lbs.
Swing Brake Automatic spring-set/hydraulic release wet disc parking brake
Dynamic braking provided by hydraulic system



  • CHASSIS DESIGN
    • Both upper structure and carrier are powered by a single Volvo engine that increases fuel efficiency by 5%
    • Engine meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
    • Over-the-road highway speed travel at 60 mph
    • Carriers available with 4 x 2 or 6 x 4 drive, with optional 4 x 4 and 6 x 6
    • Front axle lockout cylinders and strong box plate frame construction provide stable work platform
    • No need for outriggers
    • Six-speed automatic transmission
  • CHASSIS CAB
    • Standard convenience features include an adjustable steering column, dual reading lights and radio
    • Ergonomically designed interior with extra sound-deadening
    • Rubber mounts isolate cab from frame, creating comfortable ride
    • Easily visible gauges for oil pressure, coolant temperature, air tank pressures, fuel, DEF level, voltmeter and speed
    • Engine shutdown controlled by engine electronics
    • Indicator lights and controls for front axle engagement (4 x 4 and 6 x 6 models) and rear axle differential lock
    • Comfort features including air suspension seat, sliding windows, fresh air heater and defroster and tinted glass
  • BOOM
    • Full boom tilts 220° for efficient sloping, grading and spreading material
    • No loss of power to attachment tilting capability
    • Consistent boom force through the entire dig cycle
    • Dig down at 75° angle
    • Rugged telescoping boom telescopes up to 33’ 9”
    • Low profile for work under bridges, trees and in tunnels
    • Full-length boom visibility during the entire dig cycle
    • Fast cycle times - ditching, loading and spreading
    • Quick attach bolt system handles full range of attachments
  • OPERATOR CAB
    • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
    • Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
    • Internal tooth swing bearing provides smooth, stable movement
    • With foot pedals, reposition carrier with new electric remote drive system at speeds up to 5 mph
    • Excellent job site and full boom visibility
    • Standard air conditioning
    • Optional rollover protection
    • Removable, stow-able front window brings fresh air into the cab
  • ADVANCED SYSTEMS
    • High performance, high reliability 24-volt electrical system
    • Legendary Bosch Rexroth design and reliability
    • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves
    • Combined electrical system for chassis and excavator delivers advanced, effective operation
  • EXCAVATOR
    • Short tail swing won't obstruct traffic
    • Stable, without the need for outriggers
    • All new electric remote drive system for chassis repositioning
    • No need for a second engine
  • ATTACHMENTS
    • Trenching Buckets
    • Excavating Buckets
    • Ditch Cleaning Buckets
    • Dredging Buckets
    • Pavement Removal Buckets
    • Grading Blades
    • Telestick
    • Boom Extensions
    • Hydraulic Hammers
    • Grapples
    • Flail Mowers
    • Rotary Mowers
  • Vandalism protection kit including window covers
  • Strobe light
  • Tilt steering column

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.


*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Gradall
MODEL XL 4100 V

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Gradall XL 4100 V

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Gradall XL 4100 V Highway Speed Wheeled Excavator for Sale

Highway-speed Gradall excavators travel quickly to one or more jobsites and then back to the safety of the equipment yard at the end of the day. Leave $100,000 worth of equipment – your lowboy trailer and truck – back in the equipment yard while you complete more work with fewer men and machines.
GENERAL INFORMATION
Manufacturer
Gradall
Model Year
Model
XL 4100 V
Condition
NEW
Body
Chassis
Three aluminum bar-plate type coolers stacked vertically Air to air intake charge air cooler, radiator and transmission cooler All coolers backed by a molded fan shroud, engine mounted fan ring and 26.8” 9-blade fan driven by a Volvo electronically controlled variable speed fan drive
Cab
One-person cab, left-hand mount, isolated from frame on rubber mounts. Acoustical lining. Sun visor. Gauges for oil pressure, coolant temperature, air tank pressures, fuel level, DEF level, voltmeter, speedometer with odometer, tachometer with hour meter. Engine and transmission monitor lights. Engine shutdown controlled by engine electronics. Indicator lights and controls for front axle engagement (6 x 6 only) and rear axle differential lock. Park brake control. Tinted safety glass. Sliding side windows. Fresh air heater and defroster. Dome light. Air suspension seat with seat belt. Vent in door.
Frame
48” (1.2m) wide, welded plate design 65 ksi material
Steering
Ross, integral hydraulic power steering Gear-type power steering pump Four-quart power steering reservoir with filter 10 micron pre-filter
Wheels
Hub piloted disc 10-stud, 11.25” bolt circle
Dimensions
Length
25’1” (wo/bucket) 29’6” (w/bucket)
Width
8’6”
Height
11’9” (6 x 4 w/bucket) 12’0” (6 x 6 w/bucket) 10’11” (6 x 4 wo/bucket) 11’3” (6 x 6 wo/bucket)
Weight
49,684 lbs.
Wheelbase
14’2”
Ground Clearance
10”
Fuel Tank Capacity
100 gallons
Transport Length
29’6” (w/bucket)
Transport Height
11’9”
Transport Width
8’6” (w/bucket)
Depth
19’3” (6 x 4) 19’ (6 x 6)
Working Height
Loading-17’2” & Work-15’0”
Engine
Drive Type
6x4 or 6x6
Engine Make
Volvo
Engine Model
TAD871VE Tier 4f 7.7L
Engine Type
Diesel
Horsepower
248 HP @ 2200 rpm
Electrical System
24 volt, 110 amp alternator with integral voltage regulator, two SAE #C31-S 1000 CCA batteries
Rated RPM
2200
Cycles
4
Air Filter
Two-stage Donaldson PSD PowerCore with high efficiency pre-cleaner, vacuator value and remote service indicator
Filtration System
5 micron return filter with magnet 10 micron pilot filter Fin and tube-type oil cooler with thermostatically controlled cooling fan Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Number of Speeds
Gear Speed 1: 6.3 mph Gear Speed 2: 16.2 mph Gear Speed 3: 24.1 mph Gear Speed 4: 37.4 mph Gear Speed 5: 50.6 mph Gear Speed 6: 59.9 mph
Drive
6 x 4 or 6 x 6
Axles
Front Axles: 6 x 4: Meritor Model MFS-16-122A, 16,000 lb (7,257 kg) rating 6 x 6: Meritor Model MX19-145, 19,000 lb (8,618 kg) rating, 7.17 ratio Rear Axle: Meritor Model RT-50-160, 50,000 lb. rating. 7.17 ratio Single reduction with driver controlled differential lock in front/rear Inter-axle differential with lock
Transmission Type
6-speed Automatic
Transmission
Allison 3500 RDS
Brakes
6 x 4 Front: Meritor “Q” Plus Series Cam-Master Size: 16.5” x 5” Automatic slack adjusters 6 x 6 Front: Meritor “Q” Series Cam-Master Size: 16.5” x 6” Automatic Slack Adjusters. Rear: Meritor “P” Series Cam-Master Size: 16.5” x 7” Automatic slack adjusters Spring brake system incorporates emergency and parking brakes on rear axle Heated air dryer
Suspension
Front: Eight leaf spring with automatic lock-out cylinders Rear: Hendrickson Equalizer Beam, 8” oscillation
Tires
6 x 4 front: 385/65R22.5 LR (J) on/off highway tread 6 x 6 front: 425/65R22.5 LR (L) on/off highway tread 6 x 4 and 6 x 6 rear: 11R24.5 LR (H) on/off highway tread
Hydraulic
Pump
One load-sensing axial piston pump, 0-77 gpm (0-291 L/min) total One gear pump (pilot and cooling), 11 gpm (41 L/min)
Operating Pressure
Hoist-4,800 PSI Tilt-2,500 PSI Swing-4,200 PSI Tool-4,800 PSI Telescope-4,800 PSI Remote Propel-4,800 PSI Pilot System-500 PSI
Hydraulic Cylinders
Four Double Acting Cylinders One boom cylinder: 3.5” bore x 2.56” rod x 150” stroke Two hoist cylinders: 4.25” bore x 3.15” rod x 31” stroke One tool cylinder: 5.0” bore x 3.0” rod x 25.9” stroke
Oil Capacity
Reservoir: 50 Gallons System: 70 Gallons
Hydraulic Motors
Three Hydraulic Motors Swing, 64 hp (48kW) Tilt, 21 hp (16 kW) Remote drive, 110 hp (82 kW) total
Operational
Bucket Width
8’6” (Transport width w/bucket)
Dig Depth
20’3”
Bucket Breakout Force
24,900 lbs.
Travel Speed - Forward
59.9 mph
Lift Capacity
12,130 lbs.
Boom Lift Capacity
12,130 lbs.
Max. Load @ Full Height
17’2”
Max Capacity
12,130 lb
Max. Radius
At Groundline: 30’3”
Boom Telescope
12’6”
Boom Tilt
220˚
Boom Force
21,940 lbs. (rated)
Bucket Pivot Angle
165˚
Bucket Length
29’6” (Transport length w/bucket)
Bucket Height
11’9” (Transport height w/bucket)
Swing Speed
8.0 RPM
Swing Clearance
8’0”
Max. Work Height
15’0”
Gross Vehicle Axle Rating
66,000 lbs.
Swing Brake
Automatic spring-set/hydraulic release wet disc parking brake Dynamic braking provided by hydraulic system

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
