CHASSIS DESIGN

• Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
• Standard rail guide system provides mobility and stability during digging.
• Available with highway speed undercarriages or on/off pavement wheeled models
• Automatic digging breaks provide convenience and time-saving productivity
• Short tail swing and low working profile makes work in tunnels and tight spaces possible
• Oscillation lock cylinders and strong box plate frame construction provide stable work platform that does not require outriggers
• Work at front, rear or side of chassis without the need for outriggers
• Variable displacement high torque piston motor powers two-speed power shift-on-the-fly transmission
• To enhance safe travel on rails, highway speed models have LED travel lights, forward and backward, and a change-of-direction alarm.

CHASSIS CAB

• Standard convenience features include an adjustable steering column, dual reading lights and radio
• Ergonomically designed interior with extra sound-deadening
• Rubber mounts isolate cab from frame, creating comfortable ride
• Easily visible gauges for oil pressure, coolant temperature, air tank pressures, fuel, DEF level, voltmeter and speed
• Engine shutdown controlled by engine electronics
• Indicator lights and controls for front axle engagement (4 x 4 models) and rear axle differential lock
• Comfort features including air suspension seat, sliding windows, fresh air heater and defroster and tinted glass
• One-person cab
• Left-hand mount
• Isolated from frame on rubber mounts
• Acoustical lining
• Sun visor
• FRA spec 360 Degree Strobe Lighting
• Lower air horn
• Chassis camera
• Air conditioning
• Gauge Clusters
• Oil pressure
• Coolant temperature
• Air tank pressures
• Fuel level
• DEF level
• Voltmeter
• Speedometer with odometer
• Tachometer with hour meter
• Engine and transmission monitor lights
• Engine shutdown controlled by engine electronics
• Indicator light and control for rear axle differential lock
• Park brake control
• Tinted safety glass
• Sliding side windows
• Fresh air heater and defroster
• Dome light
• Air suspension seat with seat belt
• Vent in door
• Dual air horn

BOOM

• Full boom tilts 220° for efficient sloping, grading and spreading material
• No loss of power to attachment tilting capability
• Consistent boom force through the entire dig cycle
• Dig down at 75° angle
• Rugged boom telescopes out to 33’ 10”
• Low profile for work under bridges, trees and in tunnels
• Full-length boom visibility during the entire dig cycle
• Fast cycle times for ditching, loading and spreading
• Quick attach bolt system handles full range of attachments

OPERATOR CAB

• Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
• Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
• Internal tooth swing bearing provides smooth, stable movement
• With foot pedals, reposition carrier at speeds up to 20 mph
• Excellent visibility of the boom through the entire dig cycle
• Standard air conditioning
• Optional rollover protection
• Removable, stowable front window brings fresh air into the cab

ADVANCED SYSTEMS

• High performance, high reliability 24-volt electrical system
• Legendary Bosch Rexroth design and reliability
• All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves, providing additional fuel-saving advantages

EXCAVATOR

• Short tail swing won't obstruct traffic
• Stable digging platform for work in any direction, without need to stop and lower outriggers
• Triangular telescoping boom design, with full power through the entire dig cycle
• Cycle speeds comparable or exceeding conventional excavators
• Electronic joysticks provide precise control over boom and attachment positioning

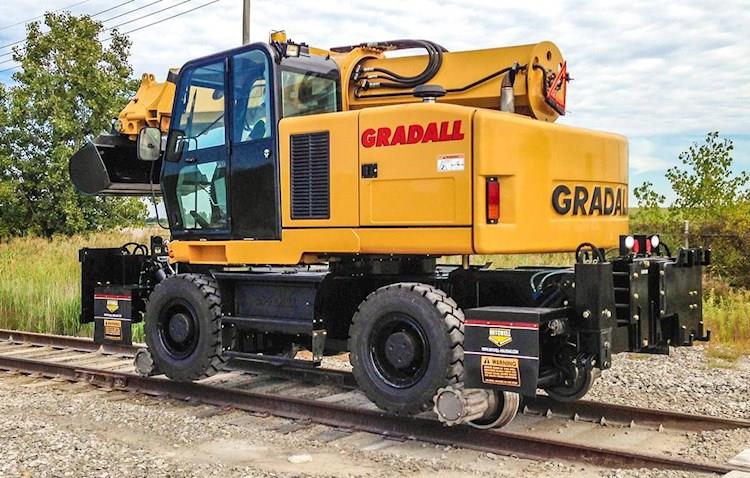

RAIL GEAR

• Guide wheel rail gear system allows excavator to be propelled by the drive system of the machine
• DMF 1650 (50,000 lbs. each) Hi-Rail axle assemblies
• 16” guide wheels (custom profile available)
• High-strength alloy steel axles
• Wheel brakes work in conjunction with excavator braking system
• Hi-Rail gear controlled from operator cab
• Rail sweeps front and rear
• Tow bar plates front and rear

UPPERSTRUCTURE CAB

• All-weather cab isolated from frame on rubber mounts
• Tinted safety glass windows
• Skylight
• Acoustical lining
• Four-way adjustable seat
• Dome light
• Filtered air heater and defroster
• AM/FM radio
• Air conditioning
• LED work light package
• Heat source provided by a fast response, closed circuit hydraulic heater with 20,000 BTU/Hr. capacity
• Front window slides to overhead storage
• Mirrors on right and left sides
• Windshield wiper and washer
• Operator’s seat belt
• FRA spec 360 degree strobe light
• Dual air horn
• Upper air horn

UPPERSTRUCTURE CONTROLS

• Two electronic joysticks (hoist and bucket, telescope and swing)
• One rocker switch (tilt) control
• Joysticks mounted on arm pods, adjustable for individual operator comfort and convenience
• Quick change joystick pattern switch (Gradall, SAE, Deere) located on instrument panel
• Two foot pedals for remote control of undercarriage steering
• Travel and digging brakes
• Self-centering joysticks and pedals; when controls are released, power for movement disengages and swing and travel brakes set automatically
• AREMA decals
• Engine Controls:
  • Key ignition switch with neutral start
  • Indicator lights for low air, engine status, park brake, travel status, hydraulic fluid temperature and level
  • Automatic engine shutdown occurs with low oil pressure
  • Derate/shutdown for oil temperature, coolant temperature, coolant level, ERD temperature, charge air temperature, charge air pressure and derate for SCR temperature

CHASSIS EQUIPMENT

• LED headlights
• LED tail lights
• LED back-up lights and alarm
• LED brake lights
• LED identification lights front and rear
• LED directional lights
• LED four-way hazard lights
• Instrument panel lights
• Windshield wiper/washer
• West Coast style mirror system with plain and convex mirrors
• Front and rear tow hooks
• Desiccant type air dryer with automatic purge valve and thermostatically controlled heater
• FRA required directional lighting and change of direction alarm

ATTACHMENTS

• Excavating Buckets
• Ditching Buckets
• Trenching Buckets
• Pavement Removal Buckets
• Boom Extension
• Tree Limb Shear
• Fixed Thumb Grapple
• Single Tooth Ripper
• Sleeper Changer
• Sleeper Layer
• Ballast Tamper
• Ballast Bucket
• Ballast Broom
• Ballast Blade
• Flail Mower
• Kinshofer NOX Rotator

• Vandalism protection kit including window covers
• Tilt steering column
