Gradall XL 7210 V

Gradall XL 7210 V

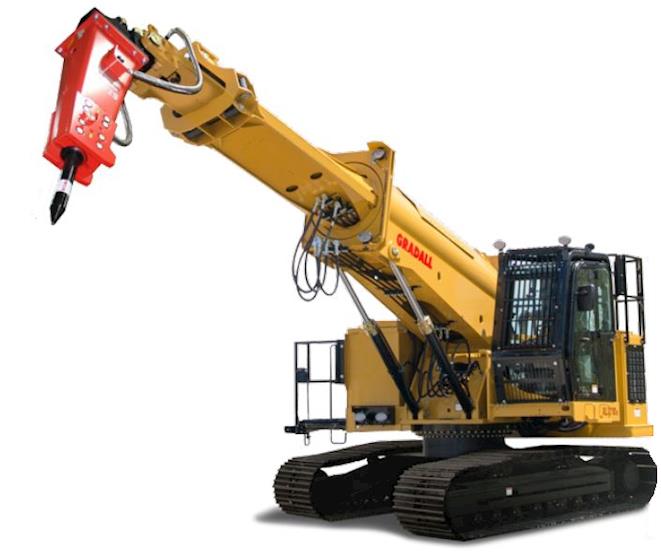

New Gradall XL 7210 V Industrial Maintenance Excavator for Sale

On crawler or rubber tire undercarriages, Gradall steel mill maintenance machines are designed for full versatility, efficiently performing steel mill maintenance work in hot, challenging conditions. Tough enough to handle the vigorous pounding and vibrations typically experienced in steel mills, these Gradall machines set the global standard for durability and productivity.
Dimensions
Length 41’3” (wo/scaling hook)
43’5” (w/scaling hook)
Width 13’6”
Height 12'3"
Weight 79,000 lbs.
Ground Clearance 26"
Fuel Tank Capacity 82 Gallons
Transport Length 43’3” w/Scaling Hook
Transport Height 13’3”
Transport Width 11’1” (Wide)
Maximum Slope 30°
Engine
Engine Make Volvo
Engine Model TAD571 VE
Engine Type Tier 4f
Cylinders 4
Horsepower 173 HP
Net Horsepower 153 HP
Cooling Liquid
Torque 590 ft. lb.
Rated RPM 2200 RPM
Cycles 4
Filtration System 10 micron return filter
10 micron pilot filter
Fin and tube-type oil cooler with thermal by-pass and relief valves
Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Track Width 31.5"
Starter 24 volt
Brakes Planetary crawler drive with integral park brake
Gradeability 88% limited by engine lubrication requirements
Track Length 15’4”
Drawbar Pull 65,205 lbs.
Alternator 100 amp
Ground Pressure 8.18 PSI
Hydraulic
Pump One load-sensing axial piston pump oil flow 0-110 gpm (0-416 L/min)
Pilot gear pump 6 gpm (23 L/min)
Operating Pressure Hoist: 4,900 PSI
Tilt: 2,400 PSI
Swing: 4,500 PSI
Tool: 4,900 PSI
Telescope: 3,300 PSI
Propel: 4,900 PSI
Pilot System: 550 PSI
Hydraulic Cylinders Four Cylinders:
One tool: 5.0” ID, 3.0” rod, 25.9” stroke
Two hoist: 4.25” ID, 3.0” rod, 53.43” stroke
One telescope: 4.5” ID, 3.25” rod, 13’6” stroke
Oil Capacity 95 Gallons
Hydraulic Motors Swing: 68 HP
Tilt: 28 HP
Two Propel motor: 120 HP
Operational
Dig Depth 12’5”
Travel Speed - Forward 2.40 mph
Travel Speed - Reverse 1.0 mph
Boom Rotation Torque: 18,375 ft. lb.
Speed: 5.3 RPM
Swing Priority swing circuit with axial piston motor
Planetary transmission
Max. Radius 48’1” (at groundline)
Boom Telescope 13’3”
Boom Tilt 360°
Boom Force 27,700 lbs.
Rated Ripper Tooth Force 19,888 lbs.
System Monitor Electronic monitor in cab indicates:
Low hydraulic fluid level with shutdown
High hydraulic fluid temperature
System working pressure
System pilot pressure
Swing Speed 7 RPM
Swing Clearance 10’0”
Tool Pivot Angle 165°
Max. Work Height 12’10”
Pad Width 31.5” (Wide)
Ground Bearing Pressure 8.2 PSI (Wide)
Boom Pivot Angle 105°; 52° Up & 23° Down
Swing Brake Automatic spring-set/hydraulic release wet-disc parking brake
Dynamic braking is provided by the hydraulic system
Battery
Voltage 24 volt
Amps 100 amp alternator
Battery Two SAE #C31-S 1000 CCA batteries
  • CHASSIS DESIGN
    • Powered by a single Volvo Penta engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions
    • Crawler or rough terrain rubber tire undercarriage
    • On crawler models, dual range high torque piston motor powers each track, along with three-stage planetary drive, integral speed limiting valve and automatic spring-set hydraulic release wet disc parking brake
    • Triple grouser crawler excavator pads available in a choice of widths enhance tracking ability, with high range travel speeds up to 3.4 mph
    • Tracks counter-rotate to pivot machine about the swing centerline
    • Single-point lifting yoke available
    • Stainless steel braided hose and fire sleeves
    • Crawler tracks and foam filled or solid rubber tires are fire resistant
    • Heat resistant shields protect rubber tires
    • Wheeled models have oscillation lock cylinders and strong box plate construction, enabling work in any direction without outriggers
  • BOOM
    • Heavy-duty boom rollers, along with an exceptionally rugged boom and tilt motor at rear end of the boom
    • Full boom performs 360° continuous rotation for efficient prying action at any angle
    • Internal metal hose and tube clamps
    • No loss of power to attachment tilting capability
    • Consistent boom force
    • Rugged boom telescopes out up to 52’
    • Low profile telescoping action, reaching deep into furnaces
    • Full-length boom visibility during the entire dig cycle
  • OPERATOR CAB
    • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
    • Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
    • Internal tooth swing bearing provides smooth, stable movement
    • Two electronic foot pedals with handles reposition carrier, using toggle switch on arm pod to select from two crawler speed ranges
    • Excellent visibility of the boom through the entire working cycle
    • Standard air conditioning
    • Window guards
    • High temperature glass
  • ADVANCED SYSTEMS
    • Legendary Bosch Rexroth design and reliability
    • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves
    • Combined electrical system for chassis and excavator delivers advanced, effective operation
  • PERFORMANCE
    • Short tail swing to maneuver and work in tight quarters
    • Heavy frame for lateral support
    • Heavy boom cradle
    • Crawlers have thicker grouse pads for work at the side of the carrier
    • Triangular telescoping boom design delivers full power and speed through the working range
    • Electronic joysticks provide precise control over boom and attachment positioning
  • ATTACHMENTS
    • Hydraulic Hammers
    • Pneumatic Hammers
    • Tap Hole Drill
    • Double Tooth Steel Mill Ripper
    • Single Tooth Steel Mill Ripper
    • Core Drill
    • Rippers
    • Excavating Buckets (28”, 36” 48”)
  • OPERATOR CAB
    • Optional rollover protection
