Gradall XL 7320 V

Gradall XL 7320 V

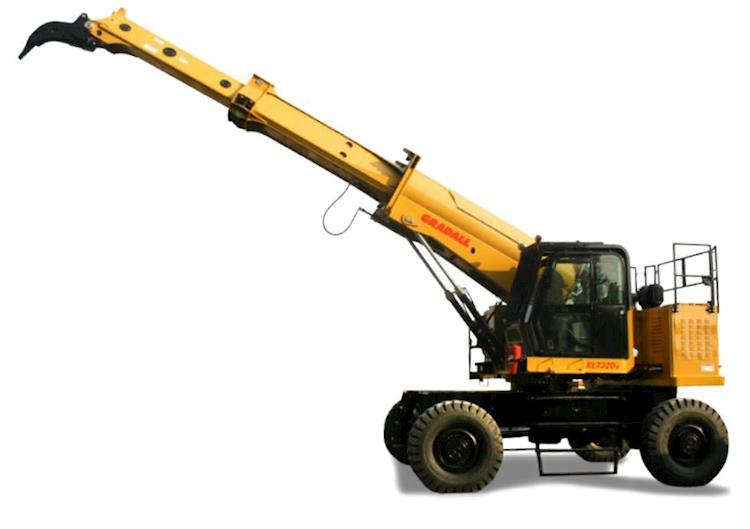

New Gradall XL 7320 V Mine Scaling Excavator for Sale

Increase scaling productivity with unique boom action

Handle the rigors of mine scaling with a rugged triangular Gradall boom, including full-boom tilt, double rollers and a host of other high performance, high durability features.
Body
Cab All-weather cab with tinted safety glass windows, acoustical lining, four-way adjustable operator’s seat, AM/FM radio, filtered fresh air heater, defroster, and A/C. Front window slides to overhead position. Rearview mirror on left side. Standard equipment includes operator’s seat belt, and swing lights. Cab tilt angle is infinitely adjustable from level to 23° upward.
Dimensions
Length 36’9” (47’ boom w/scaling hook)
43’ (52’ Boom w/scaling hook)
34’7” (47’ Boom wo/scaling hook)
40’10” (52’ Boom wo/scaling hook)
Width 13’4”
Height 13’8”
Weight 77,500 lb
Wheelbase 12’6”
Turning Radius 38’
Fuel Tank Capacity 90 gallons
Maximum Slope 30°
Engine
Engine Make Volvo
Engine Model TAD572 VE, MSHA Certified
Engine Type Tier 4f
Cylinders 4
Horsepower 215 HP
Net Horsepower 195 HP
Cooling Liquid Cooled
Torque 671 ft. lb.
Rated RPM 2200 RPM
Cycles 4
Filtration System 10 micron return filter
10 micron pilot filter
Fin and tube-type oil cooler with thermal by-pass and relief valves
Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Drive 4 x 4
Transmission Full-time 4 x 4 drive with 2-speed Powershift transmission
Starter 24 volt starter
Brakes Four-wheel enclosed sealed wet-disc brakes
Tires 16.00 x 25 (28 ply)
Gradeability 47%
Alternator 100 amp alternator
Hydraulic
Pump One load-sensing, axial piston pump
Tandem gear pump (steering, brake/pilot)
Std Pump Flow 0-110 GPM
Tandem Steering: 10 GPM
Tandem Pilot: 6 GPM
Operating Pressure Hoist: 4900 PSI
Tilt: 2400 PSI
Swing: 4500 PSI
Tool: 4900 PSI
Telescope: 3300 PSI
Propel: 4900 PSI
Pilot System: 550 PSI
Braking & Steering: 2400 PSI
Hydraulic Cylinders Six Cylinders:
One tool: 5.0” ID, 3.0” rod, 25.9” stroke
Two hoist cylinders: 4.25” ID, 3.0” rod, 53.43” stroke
One telescope: 4.5” ID, 3.25” rod, 13’6” stroke
Two single-acting axle oscillation cylinders: 4.528” ID, 4.528” rod, 6.25” stroke
Oil Capacity 61 Gallons
Hydraulic Motors Three Hydraulic Motors:
Swing: 68 HP
Tilt: 28 HP
Propel: 113 HP
Operational
Dig Depth 6’2”
Travel Speed - Forward 11 MPH
Boom Rotation Torque: 18,375 ft. lb.
Max. Load @ Full Height 48’2”
Swing Priority swing circuit w/axial piston motor
Planetary transmission
Max. Radius 47’10” (at groundline)
Boom Telescope 13’6”
Boom Tilt 270°
Boom Force Boom In: 23,210 lbs.
Boom Out: 27,357 lbs.
Rated Ripper Tooth Force 19,888 lbs.
System Monitor Electronic monitor in cab indicates:
Low hydraulic fluid level
High hydraulic fluid temperature
System working pressure
System pilot pressure
Swing Clearance 10’
Attachment Pivot Angle 114°
Swing Brake Automatic spring-set/hydraulic release wet-disc parking brake
Dynamic braking is provided by the hydraulic system
Max Scaling Height 52'3"
Battery
Voltage 24 volt starter
Amps 100 amp alternator
Battery Two SAE #C31-S 1000 CCA batteries
  • CHASSIS DESIGN
    • Powered by a single Volvo Penta engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions
    • Steering and drive axles are fitted with axle oscillation oscillation assemblies to create a stable working platform for work in any direction without the need for outriggers
    • Travel speeds up to 12 mph
    • Variable displacement high torque piston motor powers two-speed power shift transmission
    • Electronically operated travel alarm signals carrier movement
    • Variable displacement high torque piston motor powers two-speed power shift-on-the-fly transmission
    • Automatic spring-set/hydraulic release wet-disc parking brake
    • Dynamic braking is provided by the hydraulic system
  • BOOM
    • Deliver appropriate scaling power without wasting fuel using the two-section telescoping boom that’s armed with high-pressure, load sensing hydraulics
    • Full boom telescopes and tilts 360° to address hard-to-reach prying locations and avoid overhead obstructions
    • All hydraulic hoses are located safely inside the boom
    • Double rollers handle rigors of scaling
    • Consistent boom force through the entire dig cycle
    • Rugged boom telescopes out to 48’ 9”
    • Low profile operation for work beneath low ceilings
    • Full-length boom visibility during the entire dig cycle
  • OPERATOR CAB
    • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
    • All-weather cab has tinted safety glass, acoustical lining, filtered fresh air heater, defroster and A/C
    • Front window has heat-resistant glass
    • Tilting, telescoping steering column provides smooth, comfortable steering
    • Hydraulic foot pedal controls braking functions
    • Independent rocker switches control stabilizers, axle oscillation, park brake and hazard lights
    • Adjustable seating module has joystick controls built into the armrests
    • Internal tooth swing bearing provides smooth, stable movement
    • Excellent visibility of the boom and surrounding area
  • ADVANCED SYSTEMS
    • High performance, high reliability 24-volt electrical system
    • Legendary Bosch Rexroth design and reliability
    • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves
  • EXCAVATOR
    • Short tail swing won't obstruct traffic
    • Stable, without the need for outriggers
    • Extra tough telescoping boom design, with full power through the entire dig cycle
    • Cycle speeds comparable or exceeding conventional excavators
    • Electronic joysticks provide precise control over boom and attachment positioning
