Grove GHC110

New Grove Crane for Sale

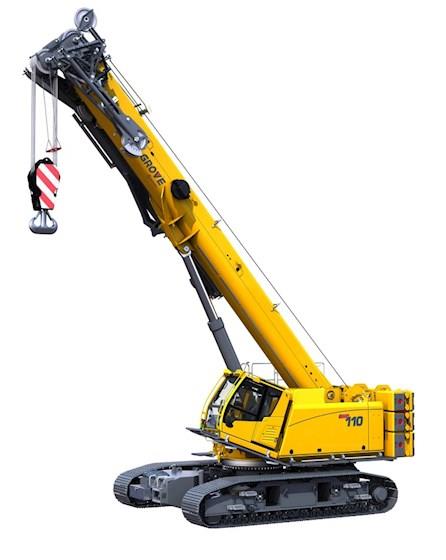

New Grove GHC110 Telescoping Crawler Crane for Sale

The GHC110 delivers superior load charts in the 110 USt telescoping crawler crane class, with 100% pick and carry up to a 4° incline. Quick self-assembly and lifting capabilities across three extendable track spans give versatility for work on highway and bridge construction; renewable energy projects and laydown yards.

Strong telescopic boom: The GHC110 comes equipped with a robust pin fivesection boom that allows for telescoping under load.  The main boom 12,2 - 46,8 m (40 – 153.4 ft) of reach.  This paired with the standard 15 m (49.3 ft) offsettable bi-fold swingaway extension provides a maximum tip height of 65 m (212 ft).

Travel made easy: Transportation to the job site can easily be accomplished in 4-5 loads. Set up time is minimal thanks to the GHC110’s quick self-assembly system for both the counterweight and side frames. Once assembled the strong undercarriage provides 100% pick and carry capability and work up to 4° of inclination. The hydraulically extendable tracks allow for three working gauges for maximum flexibility on the job.

Asymmetrical track spans: Allowing asymmetrical track spans provides increased versatility on the jobsite. This makes it easier to work in congested jobsites with obstructions, and allows for increased capacities when comparing to the standard 360° load charts.

CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data.  Visit www.cranestar.com for more information.
Body
Cab Large-capacity operator´s compartment that includes air suspended, heated operator’s seat with lumbar support, headrest, 3” safety belt, ergonomic control panels, load sensing electric dual axis joystick controls, travel pedals and levers, exceptional sound insulation, sliding door (includes sliding window), excellent all around visibility, tinted safety glass, front tiltable window, large skylight w/ sun protection, windshield and roof wiper/washer system, Bluetooth/AM/ FM/USB/MP3 radio, climate control (A/C, heat, and defrost), fire extinguisher, and 20˚ tilt capability for improved overhead vision and ergonomic posture. Also equipped with a 7” monitor in cab for rear view, right side and hoist cameras.
Frame Durable all steel welded construction with extendable side frame beams and hydraulic jacks for side frame installation and removal. Frame mounted hydraulic jacks also used for track extension and retraction.
Side Frame: Four steel side frame beams that can be hydraulically extended or retracted via controls in the cab. 900 mm (36 in) triple bar maintenance-free track shoes.
• Retracted gauge: 2,7 m (8.8 ft)
• Intermediate gauge: 3,4 m (11.3 ft)
• Extended gauge: 4,2 m (13.8 ft)
*Note: These widths are from centerline to centerline of crawlers.
Dimensions
Length 49.5’
Width 11.7’
Height 10.3’
Weight 237,000 lbs.
Capacity 110 T
Max Tip Height 212’
Engine
Engine Make Cummins
Engine Model QSB 6.7 L
Engine Type Diesel, turbocharged with Cummins Diesel Oxidation Catalyst (DOC) exhaust and Selective Catalytic Reduction (SCR)
Cylinders 6
Horsepower 249 HP
Max Travel Speed 0.50-1.55 MPH
Fuel Tank Capacity 140 Gallons
Hydraulic
Hydraulic Capacity 328 Gallons
Hydraulic System Load sensing / LUDV hydraulic system with hydraulic and pilot controlled work functions, and load limit sensing control. Single variable-displacement piston pump with a three-section gear pump. High performance, 3 micron filtration system with water absorption contamination indicator for higher oil purity and extended oil service life.
Maximum Pressure 4786 PSI
Operational
Counterweight Upper: 28 200 kg (62,181 lbs.) total (5 pieces)
Carbody: 17 000 kg (37,485 lbs.) total (2 pieces)
Gradeability 75%
Rated Operating Capacity Graphical display of load moment and anti-two block system with audio-visual warning and control lever lockout. These systems provide electronic display of crane configuration, boom angle, length, radius, tip height, maximum permissible load, momentary load and warning of impending two-block condition. Includes advanced diagnostics system that increases the performance of the machine, simplifies and accelerates troubleshooting, and lowers operating costs. Equipped with event recorder.
Swing Two-speed, compact planetary gear with axial piston hydraulic motor and integrated brake valves. Sealed, externally geared slewing ring that allows for 360˚ of continuous rotation. Electronically applied service brake operated via foot pedal. Spring applied, hydraulically released parking brake. Two position, hydraulically pinned house lock.
Swing Speed 0-2 rpm, variable
Boom
Max Boom Length 153.4’
Hoist Two-speed hoists driven via an axial piston hydraulic motor with compact planetary gear. Spring-loaded disc brake. Grooved drum with drum rotation indicator for both hoists that is located in the joystick controls.
Boom Elevation One double-acting hydraulic cylinder with integral holding valves. Elevation: -4.9˚ to 80.5˚
Max Capacity 110 US Tons
Boom Nose Five nylatron sheaves on heavy-duty roller bearings with removable rope guards. Quick reeve type boom nose. Equipped with removable auxiliary boom nose.
Hoist Line Pull Maximum hoist pull (first layer): 29,023 lb.
Maximum permissible single line pull: 19,845 lb.
Maximum single line speed: 384 ft/ min
Electrical
Electrical System 24 volt with two 12-volt, maintenance-free batteries. Includes battery disconnect switch.
Lighting Lighting package includes two halogen lights integrated into the front side of the cab roof and one LED headlight on the upper carriage, right side.
  • Valuable versatility — Telescoping boom plus heavy-duty crawler tracks.
  • Increased productivity — 100% pick and carry with lifting operations up to 4° incline.
  • High maneuverability — Tackle the most rugged terrain. Go from truck to work quickly without the need for outriggers.
  • Low ground bearing pressure - 15.5 psi w/o load. 88.2 psi max with load.
  • Leading gradeability —57% gradeability (theoretical)
  • Proven Power — Tier 4 final compliant (249 HP / 186 kW) engine
  • Central, easily accessible lubricating strip.
  • Grated platform in front of cab, and foldable grated platforms on side of cab and both sides of the upper carriage. Foldable handrails included for upper carriage.
  • Service friendly engine and hydraulic compartment with decoupled engine suspension, sound proofing and lighting.
  • 63 t (69 USt) 3-sheave quick reeve hook block.
  • External RCL light bar.
  • Storage box attached to crawler side frame.
  • Basket: Yoke style, 72 in x 36 in (1829 mm x 914 mm) steel basket, gravity hung with cylinder brake lock (does not side stow). Includes quick-attach boom attachment. Basket capacities: 544,3 kg (1200 lb.) main boom and 226,7 kg (500 lb.) on boom extension.
  • Radio remote control package.
  • Cold weather packages up to -40˚ C / 40˚ F.
  • Maintenance-free flat track shoes.
  • Polyurethane clamp-on track pads.
  • Two additional LED lights mounted on base boom
  • Wind speed indicator (hardwired) displayed thru RCL.
  • Work area definition system.
  • Swing barrier protection. Provides a swing perimeter when used with caution tape.
  • Pinion lubrication for slewing gear with lubrication pump, operated from cab, with special lubricant.
  • CraneStar asset management system.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
