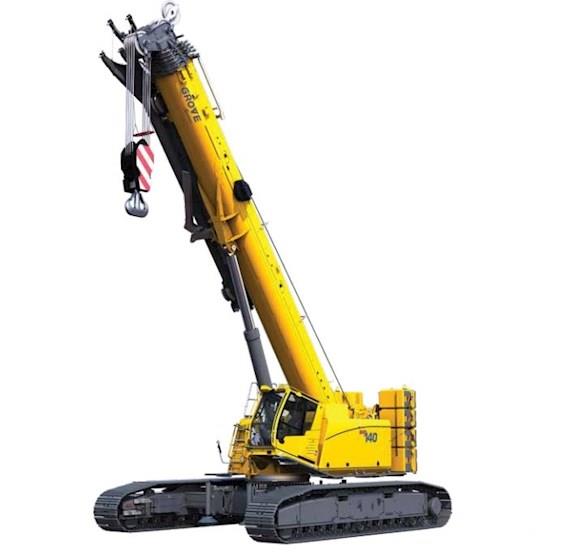

New Grove GHC140 Telescoping Crawler Crane for Sale

The GHC140 delivers heavy-duty lifting power and exceptional mid-range and maximum reach with a boom length of 12 3 m – 52 1 m (40 ft 5 in – 171 ft).

Assembly of the GHC140 telescopic crawler crane is fast and simple. The crane is fully self-rigging and features frame mounted jacks for track installation and hydraulically installed counterweights.

Comfort redefined: Operators cab is designed to deliver maximum comfort while incorporating conveniently located joystick controls for precise operation. Cab comes equipped with an integrated rated capacity limiter, air suspension seat, color monitor for up to four cameras, and precise climate control. The cab can tilt up to 20° providing the operator additional comfort when working at long boom and extension lengths.

Travel made easy: Transportation to the job site can easily be accomplished in 3-5 loads. Set up time is minimal thanks to the GHC140’s quick self-assembly system for both the counterweight and side frames. Once assembled the strong undercarriage provides 100% pick and carry capability and work up to 4° of inclination. The hydraulically extendable tracks allow for three working gauges for maximum flexibility on the job.

Strong telescopic boom: The GHC140 comes equipped with a robust pin sixsection boom that allows for telescoping under load.  The main boom 12,3 m - 52,2 m (40.4 ft - 171.3 ft) of reach. This paired with the standard 15 m (49.3 ft) offsettable bi-fold swingaway extension provides a maximum tip height of 70 m (229.7 ft).

CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data.  Visit www.cranestar.com for more information.
Body
Cab Large-capacity operator's compartment that includes an air suspended operator’s seat with lumbar support, heated seat, headrest, 3” safety belt, ergonomic control panels, load sensing electric dual axis joystick controls, travel pedals and levers, exceptional sound insulation, sliding door (includes sliding window), excellent all around visibility, tinted safety glass, front tiltable window, large skylight w/ sun protection, windshield and roof wiper/ washer system, Bluetooth/AM/FM/USB/MP3 radio, climate control (A/C, heat, and defrost), fire extinguisher, and 20˚ tilt capability for improved overhead vision and ergonomic posture. Also equipped with a 7” monitor in cab for rear view, right side and hoist cameras.
Frame Durable all steel welded construction with extendable side frame beams and hydraulic jacks for side frame installation and removal. Frame mounted hydraulic jacks also used for track extension and retraction.
Side Frame: Four steel side frame beams that can be hydraulically extended or retracted via controls in the cab. 900 mm (36 in) triple bar maintenance-free track shoes.
Retracted gauge: 3,1 m (10.0 ft)
Intermediate gauge: 4,2 m (13.8 ft)
Extended gauge: 5,4 m (17.7 ft)
*NOTE: These widths are from centerline to centerline of crawlers.
Dimensions
Length 49.5’
Width 12.9’
Height 11.75’
Weight 263,000 lbs.
Capacity 140 Tons
Max Tip Height 229’8”
Engine
Engine Make Cummins
Engine Model QSB 6.7 L
Engine Type Diesel, turbocharged with Cummins Diesel Oxidation Catalyst (DOC) exhaust and Selective Catalytic Reduction (SCR)
Cylinders 6
Horsepower 249 HP
Max Travel Speed 0.50-1.55 MPH
Fuel Tank Capacity 119 Gallons
Hydraulic
Hydraulic Capacity 238 Gallons
Hydraulic System Load sensing / LUDV hydraulic system with hydraulic and pilot-controlled work functions, and load limit sensing control. Single variable-displacement piston pump with a three-section gear pump. High performance, 3-micron filtration system with water absorption contamination indicator for higher oil purity and extended oil service life.
Maximum Pressure 4786 PSI
Operational
Counterweight 35 300 kg (77,836 lbs.) total (7 pieces). Hydraulically installed and removed.
Gradeability 57%
Swing Two-speed, compact planetary gear with axial piston hydraulic motor and integrated brake valves. Sealed, externally geared slewing ring that allows for 360˚ of continuous rotation. Electronically applied service brake operated via foot pedal. Spring applied, hydraulically released parking brake. Two position, hydraulically pinned house lock.
Swing Speed 0-2 RPM, variable
Boom
Max Boom Length 171’
Hoist Two-speed hoists driven via an axial piston hydraulic motor with compact planetary gear. Spring-loaded disc brake. Grooved drum with drum rotation indicator for both hoists that is located in the joystick controls.
Boom Elevation One double-acting hydraulic cylinder with integral holding valves. Elevation: -4.9˚ to 80.0˚.
Max Capacity 140 US Tons
Boom Nose Five nylatron sheaves on heavy-duty roller bearings with removable rope guards. Quick reeve type boom nose. Equipped with removable auxiliary boom nose.
Hoist Line Pull Maximum hoist pull (first layer): 40,48 lb.
Maximum permissible single line pull: 27,558 lb.
Maximum single line speed: 377 ft/ min
Electrical
Electrical System 24 volt with two 12-volt, maintenance-free batteries. Includes battery disconnect switch.
Lighting Lighting package includes two halogen lights integrated into the front side of the cab roof and one LED headlight on the upper carriage, right side
  • Valuable versatility — Telescoping boom plus heavy-duty crawler tracks.
  • Increased productivity — 100 percent pick-and-carry; lifting operations on up to 4° slope.
  • High maneuverability — Tackle the most rugged terrain. Go from truck to work quickly.
  • Superior lift capacity — 127t (140USt)
  • Leading gradeability — 57% gradeability (theoretical)
  • Proven Power —Cummins QSB 6.7L Tier 3 or Tier 4 final diesel engine
  • Central, easily accessible lubricating strip.
  • Grated platform in front of cab, and foldable grated platforms on side of cab and both sides of the upper carriage. Foldable handrails included for upper carriage.
  • Service friendly engine and hydraulic compartment with decoupled engine suspension, sound proofing and lighting.
  • 80 t (88 USt) 3-sheave quick reeve hook block.
  • External RCL light bar.
  • Storage box attached to crawler side frame.
  • Basket: Yoke style, 72 in x 36 in (1829 mm x 914 mm) steel basket, gravity hung with cylinder brake lock (does not side stow). Includes quick-attach boom attachment. Basket capacities: 544,3 kg (1200 lb) main boom and 226,7 kg (500 lb) on boom extension.
  • Radio remote control package.
  • Cold weather packages up to -40˚ C / 40˚ F.
  • Maintenance-free flat track shoes.
  • Polyurethane clamp-on track pads.
  • Two additional LED lights mounted on base boom
  • Wind speed indicator (hardwired) displayed thru RCL.
  • Work area definition system.
  • Swing barrier protection. Provides a swing perimeter when used with caution tape.
  • Pinion lubrication for slewing gear with lubrication pump, operated from cab, with special lubricant.
  • CraneStar asset management system
