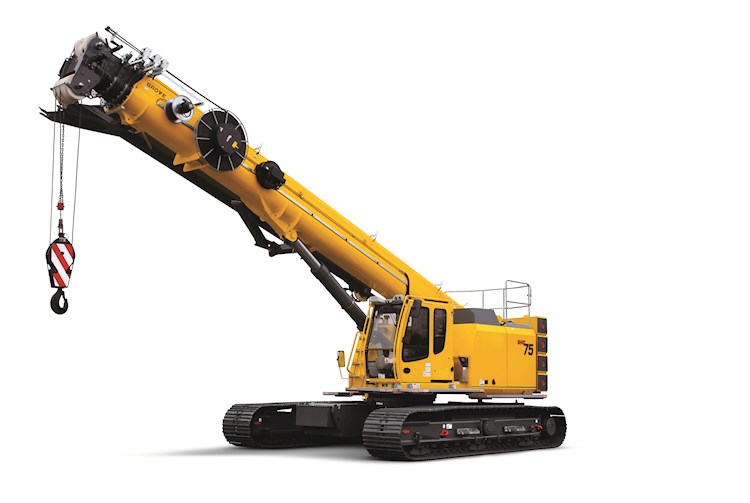

New Grove GHC75 Telescoping Crawler Crane for Sale The mid-range GHC75 delivers powerful agility and boom length of 11 m - 36 m (36 ft – 118 ft 1 in). Maximum comfort: The recently updated operators cab of the GHC75 is longer, providing additional storage. It also includes optimized armrest controls for improved operator ergonomics and precise operation, USB ports, and radio with Bluetooth connection. The standard rated capacity limiter now provides the operator with additional inputs for setting function ramps and speeds. Also included is a color monitor for up to four exterior mounted cameras, 200 of cab tilt, and integrated LED work lights on the front of the cab for excellent jobsite visibility. Strong telescopic boom: The GHC75 comes equipped with a robust fullpower four-section boom that allows for telescoping under load. The main boom offers 11 m – 36 m (36 ft – 118 ft 1 in) of reach. This paired with the standard 8 m (26 ft 3 in) offsettable swingaway extension provides a max tip height of 46 m (151 ft). Travel made easy: Transportation to the jobsite can easily be accomplished in one to two loads. Set up time has been reduced as carbody counterweights are not required. The upper counterweight is hydraulically installed via the quick self-assembly system. When set up the strong undercarriage provides 100 percent pick and carry capability and work up to 40 of inclination. The hydraulically extendable tracks allow for maximum flexibility on the jobsite. CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data. Visit www.cranestar.com for more information |
| Body | |
|---|---|
| Cab | Large-capacity operator’s compartment that includes an air suspended operator’s seat with lumbar support, heated seat, headrest, 3 inch safety belt, ergonomic control panels, load sensing electric dual axis joystick controls, travel pedals and levers, exceptional sound insulation, sliding door (includes sliding window), excellent all around visibility, tinted safety glass, front tiltable window, large skylight w/ sun protection, windshield and roof wiper/washer system, radio w/ USB input and Bluetooth, climate control (A/C, heat, and defrost), fire extinguisher, USB port and 20˚ tilt capability for improved overhead vision and ergonomic posture. Also equipped with a 7 inch monitor in cab for rear view, right side and hoist cameras. |
| Frame | Durable all steel welded construction with extendable axles. Side Frame: Four steel side frame beams that can be hydraulically extended or retracted via controls in the cab. 900 mm (36 in) triple bar maintenance-free track shoes. Retracted gauge (transportation only): 2,58 m (8.5 ft) Intermediate gauge: 3,5 m (11.5 ft) Extended gauge: 4,4 m (14.4 ft) *Note: These widths are from centerline to centerline of crawlers. |
| Dimensions | |
|---|---|
| Length | 42.5’ |
| Width | 11.4’ |
| Height | 10.7’ |
| Weight | 158,200 lbs. |
| Capacity | 75 T (70 t) |
| Max Tip Height | 173 ft. |
| Engine | |
|---|---|
| Engine Make | Cummins |
| Engine Model | QSB 6.7 l |
| Engine Type | Diesel, turbocharged with Cummins Diesel Oxidation Catalyst (DOC) exhaust and Selective Catalytic Reduction (SCR) |
| Cylinders | 6 |
| Horsepower | 228 hp (168 kW) |
| Max Travel Speed | 0.58-1.68 MPH |
| Fuel Tank Capacity | 143 gal. (540 l) |
| Hydraulic | |
|---|---|
| Hydraulic Capacity | 202 Gallons |
| Hydraulic System | Load sensing / LUDV hydraulic system with hydraulic and pilot controlled work functions, and load limit sensing control. Single variable-displacement piston pump with a three section gear pump. High performance, 3 micron filtration system with water absorption contamination indicator for higher oil purity and extended oil service life. |
| Maximum Pressure | 4786 PSI |
| Operational | |
|---|---|
| Counterweight | Carbody weight: 17,8 t (39,245 lb) total (five pieces) |
| Gradeability | 75% |
| Swing | Two-speed, compact planetary gear with slant axis hydraulic motor and integrated brake valves. Sealed, externally geared slewing ring that allows for 360˚ of continuous rotation. Electronically applied service brake operated via foot pedal. Spring applied, hydraulically released parking brake. One position, hydraulically pinned house lock. |
| Swing Speed | 0-2 RPM, variable |
| Boom | |
|---|---|
| Boom Extensions | 26 ft. 3 in. (8 m) offsettable, solid, 1-piece swingaway |
| Boom Type | 4-section, full power, sequenced-synchronized, telescopic boom |
| Max Boom Length | 118 ft. 1 in. (36 m) |
| Max Tip Height-Boom | 125' |
| Hoist | Single-speed hoists driven via a slant axis hydraulic motor with compact planetary gear. Spring-loaded disc brake. Grooved drum with drum rotation indicator for both hoists that is located in the joystick controls. |
| Boom Elevation | One double-acting hydraulic cylinder with integral holding valves. Elevation: -3˚ to 81˚ |
| Max Capacity | 75 USt |
| Boom Nose | Seven nylatron sheaves on heavy-duty roller bearings with removable rope guards. Quick reeve type boom nose. Equipped with removable auxiliary boom nose |
| Hoist Line Pull | Maximum hoist pull (first layer): 16,928 lb. Maximum permissible single line pull: 11,000 lb. Maximum single line speed: 380 ft/ min |
| Electrical | |
|---|---|
| Electrical System | 24 volt with two 12-volt, maintenance-free batteries. Includes battery disconnect switch. |
| Lighting | Lighting package includes two LED lights integrated into the front side of the cab roof and one LED headlight on the upper carriage, right side. |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Grove |
| MODEL | GHC75 |
