Grove GHC85

New Crane for Sale

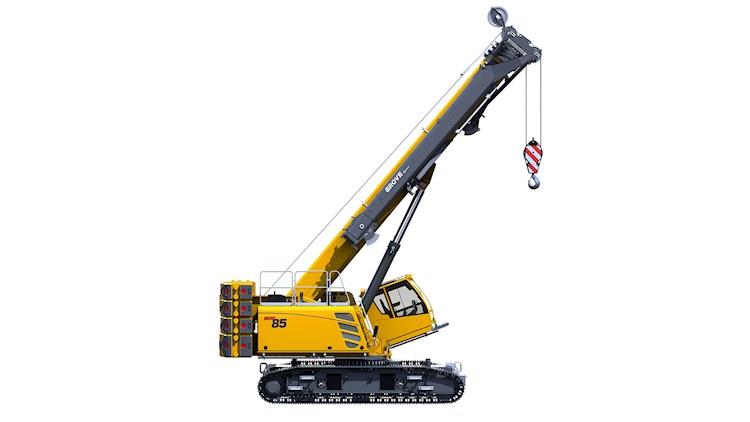

New Grove GHC85 Telescoping Crawler Crane for Sale

The Grove GHC85 gives contractors a better option for utility, road and bridge applications due to its combination telescoping boom plus heavy-duty crawler tracks. With 100% pick and carry up to a 4° incline, the 85 USt (80 t) telecrawler outlifts competitors in this size class. The GHC85 transports on a maximum of four loads and self-assembles on the job site without need of an assist crane.



  • Strong telescopic boom: The GHC85 comes equipped with a robust five-section boom that allows for telescoping under load. The main boom 11,0 – 42,0 m (36.1 – 137.8 ft) of reach. This paired with the standard 15 m (49.3 ft) offsettable bi-fold swingaway extension provides a maximum tip height of 60,7 m (199 ft).
  • Travel made easy: Transportation to the job site can easily be accomplished in 3-4 loads. Set up time is minimal thanks to the GHC85’s quick self-assembly system for both the counterweight and side frames. Once assembled the strong undercarriage provides 100% pick and carry capability and work up to 4° of inclination. The hydraulically extendable tracks allow for three working gauges for maximum flexibility on the job.
  • Asymmetrical track spans: Allowing asymmetrical track spans provides increased versatility on the jobsite. This makes it easier to work in congested jobsites with obstructions, and allows for increased capacities when comparing to the standard 360° load charts.

PRODUCTIVITY

  • 100% pick and carry with lifting operations up to 4° incline.
  • High maneuverability — no need for outriggers

BOOM

  • 5-section full power boom
  • Optional heavy-duty jib

TRACKS

  • Three track span settings in symmetrical or asymmetrical positions.
  • Standard 36-inch (900 mm) triple-bar grouser shoes (optional flat shoe for smooth surfaces)
  • Leading gradeability —57% gradeability (theoretical)

SUPERSTRUCTURE

  • Tier 4 final/Stage 5 compliant (218 HP / 164 kW) Cummins engine
  • 20° tilt cab
Body
Cab Large-capacity operator´s compartment that includes an air suspended operator’s seat with lumbar support, heated seat, headrest, 3” safety belt, ergonomic control panels, load sensing electric dual axis joystick controls, travel pedals and levers, exceptional sound insulation, sliding door (includes sliding window), excellent all around visibility, tinted safety glass, front tiltable window, large skylight w/sun protection, windshield and roof wiper/washer system, Bluetooth/AM/FM/USB/MP3 radio, climate control (A/C, heat, and defrost), fire extinguisher, and 20˚ tilt capability for improved overhead vision and ergonomic posture. Also equipped with a 7” monitor in cab for rear view, right side and hoist cameras.
Frame Durable all steel welded construction with extendable side frame beams and hydraulic jacks for side frame installation and removal. Frame mounted hydraulic jacks also used for track extension and retraction.
Four steel side frame beams that can be hydraulically extended or retracted via controls in the cab. 900 mm (36 in) triple bar maintenance-free track shoes.
• Retracted gauge: 2,7 m (8.8 ft)
• Intermediate gauge: 3,4 m (11.3 ft)
• Extended gauge: 4,2 m (13.8 ft)
Dimensions
Weight 198,400 lbs.
Capacity 85 Tons
Max Tip Height 199’
Engine
Engine Make Cummins
Engine Model B 6.7 L
Engine Type Diesel, turbocharged with Cummins Diesel Oxidation (DOC) and Selective Catalytic Reduction (SCR)
Cylinders 6
Fuel Tank Capacity 120 Gallons
Drivetrain
Drive Two-speed hydrostatic drive operated via lever/pedal controls in cab. Allows for excellent maneuverability with skid steering and counter-rotation. Both side frames are hydraulically driven through a two-stage hydraulic traction motor. Spring-loaded, hydraulically release multi-disk brake
Hydraulic
Hydraulic System Load sensing / LUDV hydraulic system with hydraulic and pilot-controlled work functions, and load limit sensing control. Single variable-displacement piston pump with a three-section gear pump.
Maximum output: 132 GPM
High performance, 3 micron filtration system with water absorption contamination indicator for higher oil purity and extended oil service life.
Maximum Pressure 4786 PSI (operating)
Operational
Counterweight Upper: 62,390 lbs. total (7 pieces)
Carbody: 13,230 lbs. total (2 pieces)
Gradeability 57%
Swing Two-speed, compact planetary gear with axial piston hydraulic motor and integrated brake valves. Sealed, externally geared slewing ring that allows for 360˚ of continuous rotation. Electronically applied service brake operated via foot pedal. Spring applied, hydraulically released parking brake. Two position, hydraulically pinned house lock.
Swing Speed 0-2 RPM
Rope Diameter 0.7”
Rope Length 590’
Line Speed 360 ft/min
Rope Construction 35 x 7 Rotation Resistant
Boom
Boom Extensions 49.3 ft offsettable bi-fold swingaway extension.
Extension can be offset at 0˚, 20˚ and 40˚
Max Boom Length 36’-137’
Boom Elevation One double-acting hydraulic cylinder with integral holding valves. Elevation: -3.0˚ to 80.5˚.
Boom Nose Five nylatron sheaves on heavy-duty roller bearings with removable rope guards. Quick reeve type boom nose.
Equipped with removable auxiliary boom nose.
Hoist Line Pull Max: 21,132 lbs. (first layer)
Single Line pull: 15,876 lbs.
Electrical
Electrical System 24 volt with two 12-volt, maintenance-free batteries.
Includes battery disconnect switch.
Lighting Lighting package includes two halogen lights integrated into the front side of the cab roof and one LED headlight on the upper carriage, right side.
  • Central, easily accessible lubricating strip.
  • Grated platform in front of cab, and foldable grated platforms on side of cab and both sides of the upper carriage. Foldable handrails included for upper carriage.
  • Service friendly engine and hydraulic compartment with decoupled engine suspension, sound proofing and lighting.
  • 63 t (69 USt) 3-sheave quick reeve hook block.
  • External RCL light bar.
  • Storage box attached to carbody counterweight.
  • Basket: Yoke style, 72 in x 36 in (1829 mm x 914 mm) steel basket, gravity hung with cylinder brake lock (does not side stow). Includes quick-attach boom attachment. Basket capacities: 544,3 kg (1200 lb) main boom and 226,7 kg (500 lb) on boom extension.
  • Radio remote control package.
  • Cold weather packages up to -40˚ C / 40˚ F.
  • Maintenance-free flat track shoes.
  • Polyurethane clamp-on track pads.
  • Two additional LED lights mounted on base boom
  • Wind speed indicator (hardwired) displayed thru RCL.
  • Work area definition system.
  • Swing barrier protection. Provides a swing perimeter when used with caution tape.
  • Pinion lubrication for slewing gear with lubrication pump, operated from cab, with special lubricant.
  • CraneStar asset management system.
