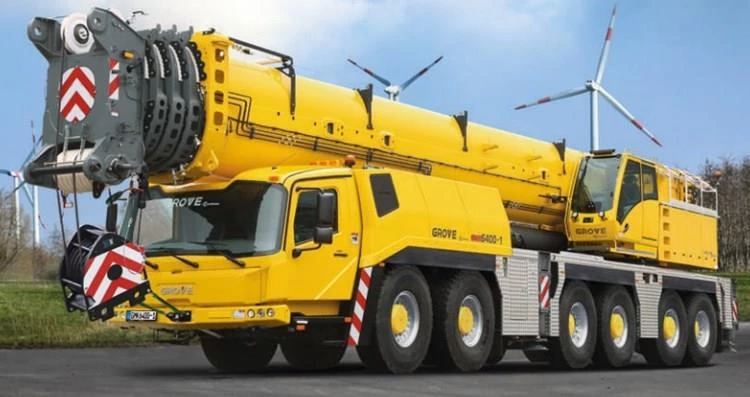

Chassis
Special 6-axle chassis, all-welded torsion-resistant box type construction in high strength steel
Cab
Aluminum, full vision, tilting (approx. 20°), safety glass, adjustable operator’s seat with suspension (optional), engine-independent hot water heater and air condition. Armrest integrated crane controls. Ergonomically arranged instrumentation and crane operating controls.
Engine Make
Mercedes Benz
Engine Type
Diesel, turbocharged
Torque
2850 Nm at 1300 RPM
Fuel Tank Capacity
85.85 Gallons + 85.85 Gallons
Control System
Full electronic control of all crane movements using electrical control levers w/automatic reset to zero. Integrated w/the RCL (Rated Capacity Limiter) and engine management system by CAN-BUS. ECOS system w/graphic display. Crane Star telematic system.
Axles
6 axle lines. Axle 1 & 2 w/conventional drive, axle 4 & 5 with MegaDrive
Transmission
ZF Traxon, 12 forward and 2 reverse speeds, electronic automatic shifting
Driver's Cab
Composite designed aluminum and fibre reinforced plastic, 2-man-design, safety glass, driver seat w/pneumatic suspension, engine-dependent hot water heater. Complete instrumentation and driving controls. Reversing camera system. Air condition. 12 V plug. Two strobe lights. Fire extinguisher.
Hydraulic Capacity
343 Gallons
Hydraulic System
5 separate circuits, 3 axial piston variable displacement pumps w/electronic power limit control and 2 gear pump for slewing
Brakes
Service brake: pneumatic dual circuit, acting on all wheels, air dryer. Permanent brake: exhaust brake and constant throttle brake
Parking brake: pneumatically operated spring-loaded brake acting on axle lines 2, 4, 5 and 6.
Suspension
MEGATRAK. All wheels w/independent hydropneumatics suspension and hydraulic lockout. Longitudinal and transverse level control w/automatic on highway levelling system. Range +6.6”/-5.11”. Active suspension control on outrigger control units
Tires
12 tires, 385/95 R25 (14.00 R25)
Steering
Dual circuit, hydraulic power assisted steering w/emergency steering pump. Axle lines 1, 2, 5 and 6 steer on highway (steer by wire). Separate electronic hydraulic (steer by wire) steering of the 3rdto 6th axle line for all wheel steering and crabbing.
Outriggers
4 double hydraulically telescoping beams w/vertical cylinders and outrigger pads. Independent horizontal and vertical movement control on each side of the carrier and from the operators cab. Electronic level indicator with automatic levelling system. Working light for each outrigger beam. Outrigger pad load indicator with read out on superstructure and carrier.
Counterweight
135 tonnes, consisting of various sections. Hydraulic removal system
Slew
3 slewing gears with axial piston motors, planetary gears, automatic break
Hoist
Axial piston motor w/planetary gear and brake. Drum rotation indicator. IR-Hoist camera and light
Boom Elevation
1 cylinder w/safety valve
