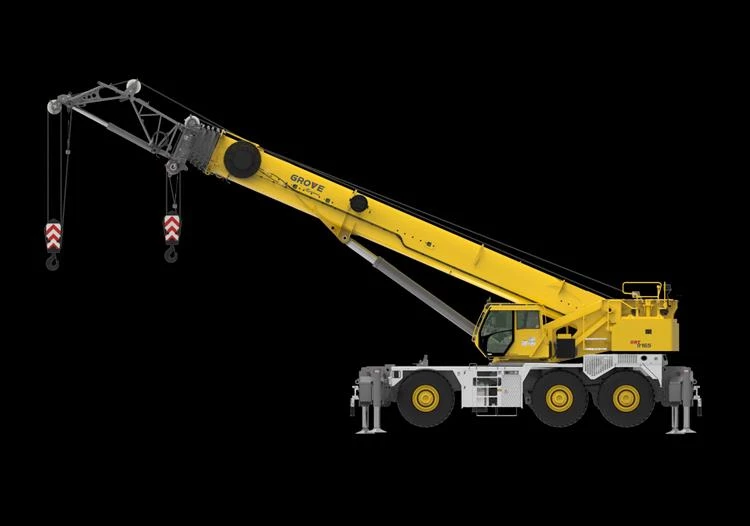

New Grove GRT9165 Rough Terrain Crane for Sale

The GRT9165 was designed after gathering feedback from crane owners and operators to ensure that it is loaded with the features and reliability you demand. With a class leading 62,5 m (205 ft) main boom, new wider full vision cab, intuitive Crane Control System (CCS), reduced transport height and best in class load charts the GRT9165 will be a valuable asset in any crane owners’ fleet. And just like all GRT models, we are so confident in the performance and reliability of the GRT9165 that we are backing it with a two-year standard warranty.

New wider full vision cab: The new wider full vision cab was designed with operator comfort, visibility and productivity in mind. Additional width, redesigned armrests and 20° cab tilt maximize the operator experience. Standard features include tilt/telescoping steering wheel, USB charging port, electronic seat adjustments, highoutput heating and air conditioning system, large pivoting cup holder, windshield sun visor, added storage behind the seat, and three camera package. Additional optional equipment includes radio with Bluetooth and heated seat.

 Innovative control system: The Crane Control System (CCS) offers a user-friendly interface, two full graphic displays mounted independently for easy adjustment and an arm rest jog dial for convenient navigation and data input. The system allows the electronic controllers to be programmed by the operator for specific speed and reaction. Parts commonality across Grove, Manitowoc and Potain product lines enhances operator familiarization and serviceability. Additional features include ECO mode, Working Range Limiter (WRL) and Boom Configurator telescoping mode.

 Superior strength and reach: Class-leading lifting performance is enhanced by the 13,7 m to 62,5 m (44.9 ft to 205 ft) six-section MEGAFORM™ boom with TWIN-LOCK™ boom pinning system. The MEGAFORM™ boom design provides exceptional strength-to-weight ratio. Boosting overall reach is the 17,8 m (58.4 ft) manual or hydraulic swingaway jib, which can be further extended by adding an 8 m (26.2 ft) lattice insert for a total extension length of 25,8 m (84.6 ft). Either swingaway jib can be offset up to 50°, which is unmatched in its class and provides additional reach and versatility.

 Backing up our promise: Our new GRT line of Rough Terrain cranes have been designed from the ground up to provide class-leading specifications, and have undergone extensive testing to ensure they provide industryleading quality and reliability. We stand behind our new line of GRT cranes, and we are willing to prove it. With new three, four or five-year extended warranty programs as well as a new two-year standard warranty, our GRT line of cranes are built to be GROVE. REAL. TOUGH.
Body
Chassis Parallel box section fabricated from high-strength, low-alloy steel. Removable outrigger boxes. Front and rear lift, towing and tie-down lugs
Cab Operator-controlled 20° hydraulic cab tilt, full vision, all steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe seat with headrest, incorporates armrest-mounted electronic programmable single-axis or dual-axis controllers and a jog dial for easy data input. Tilt/ telescoping steering wheel with controls incorporated into the steering column. Three camera system provides visibility of the rear, right side and hoists via in cab display. Other standard features include heater (hot water), circulating air fan, high-output air conditioning system, sliding skylight with sunscreen, windshield and skylight washer/wiper, windshield sun visor, fire extinguisher, seat belt, USB charging port, pivoting cup holder, and dual cab-mounted work lights.
Dimensions
Length 54.89’
Width 12.66’
Height 10.33’
Weight 190,810 lbs.
Turning Radius Outside 4WS coordinated steer radius: 33.5’
Inside 4WS coordinated steer radius: 24.2’
Max Tip Height 299’
Engine
Engine Make Cummins
Engine Model B6.7L
Engine Type Diesel engine w/after-treatment system. Turbo-charger and after-cooled engine
Cylinders 6
Horsepower 300 HP
Torque Maximum torque: 950 lb/ft at 1500 rpm
Max Travel Speed 15 MPH w/no counterweight (boom over rear w/boom angle between 0° and 20°)
10 MPH w/full counterweight (boom over front w/boom angle between 0° and 20°)
2.5 MPH w/no counterweight (boom over front w/boom angle between 0° and 20°)
Fuel Tank Capacity 82 Gallons
Control System Rated Capacity Limiter (RCL) with graphical display. Load moment and anti-two block system with audio-visual warning and control lever lockout. This system provides electronic display of boom angle, boom length, load radius, boom tip height, maximum permissible load, actual load and warning of impending two-block condition. Also includes an Operating display which shows the crane operating indicators, levels, warnings and faults. Other features include a Working Range Limiter (WRL) which allows the operator to preselect and define working areas. If the crane approaches the operator preset limits, audio-visual warnings aid the operator in avoiding obstructions. ECO mode system to control engine rpm to lower noise and improve fuel consumption. Operatorprogrammable function speeds and ramps.
Drivetrain
Axles Axle 1: Drive/steer with differential and planetary reduction hubs rigid mounted to frame.
Axle 2: Steer only. Automatic full hydraulic lockouts on rear axle permits 152 mm (6 in) of oscillation for jobsite travel.
Axle 3: Drive/steer with differential and planetary reduction hubs.
Automatic full hydraulic lockouts on rear axle permits 152 mm (6 in) of oscillation for jobsite travel.
Transmission Rangeshift with torque convertor. Six forward and six reverse speeds. (Three speeds high and three speeds low). Rear axle disconnect for two-wheel drive.
Hydraulic
Hydraulic Capacity 195 Gallons
Hydraulic System Two piston pumps and two gear pumps with a combined capacity of 573 l/min (151.5 gpm). Return line in-tank filter with full flow by-pass protection and service indicator. Replaceable cartridge with 4-micron filtration rating per ISO cleanliness level of 17/15/12. Superstructure-mounted oil cooler with thermostatically controlled electric motor driven fan/air to oil. System pressure test ports.
Maximum Pressure 4350 PSI
Operational
Brakes Full hydraulic split (dual) circuit dry disc operating on all wheels with dual calipers. High-pressure parking brake is spring applied/hydraulically released, mounted on the front axle.
Suspension Front axle: Rigid mounted to frame.
Rear axles: Hydro-gas suspension that provides +/- 76,2 mm (3 in) of travel from ride height for reduced transportation height.
Tires 26.5 x 25 – 44 bias ply rating
Steering Fully independent hydraulic power steering. Front axle controlled via steering wheel. Rear axles are mechanically linked and are controlled via separate momentary switch in cab. Rear steer alignment indicator included.
Four steering modes: two-wheel front, four-wheel rear, six-wheel coordinated and six-wheel crab
Outriggers Four hydraulic telescoping, single-stage, double box beam outriggers with inverted jack cylinders and integral holding valves. Three position settings: 0%, 50% and 100% (fully extended). Outrigger Monitoring System (OMS) with in-cylinder sensors. Outrigger beam position shown on RCL display. Outrigger boxes are removable for ease of transportation, with pinning controls on the carrier. Steel outrigger floats 610 mm (24 in) diameter. Maximum outrigger pad load: 75 297 kg (166,000 lb)
Counterweight 25 764 kg (56,800 lb) hydraulically installed and removed. Controlled via CCS operating display in cab or via wireless rigging remote.
Gradeability 93% to drivetrain stall based on 886 662 (191,057 lb) GVW with 26.5 x 25 tires, 25 764 kg (56,800 lb) counterweight, main and auxiliary hoist, manual bi-fold extension, 100 t (112 USt) hook block and 11 t (12 USt) overhaul weight.
Swing Variable speed, 360° continuous rotation. Planetary swing drive with foot actuated multi-disc brake. Spring-applied, hydraulically released swing brake. Two-position mechanical swing lock pin, operated from cab.
Swing Speed 1.1 RPM
Outrigger Controls Main controls and digital level shown on operating display in cab. Extension and retraction are through the CCS system as well as the wireless rigging remote. Includes automatic leveling feature.
Boom
Max Boom Length 44.9’-205’
Hoist Main and auxiliary hoists with grooved drums, axial piston motors, planetary gears and multiple disc brakes. Electronic hoist drum rotation indicator alerts operator of hoist movement. Third wrap indictor with hoist function cut-out and hoist camera is standard
Boom Elevation Single hydraulic cylinder with integral holding valve provides boom elevation from -2° to +80°.
Max Capacity 165 US tons
Boom Nose Seven nylon sheaves mounted on heavy-duty tapered roller bearings with removable pin type guards. Quick reeve boom nose. Removable single sheave auxiliary boom nose with removable pin-type rope guard.
Hoist Line Pull Hoist line pull: 1st layer: 23,400 lb.
Maximum line speed: 458 ft/min
Maximum permissible line pull: 17,160 lb.
Electrical
Electrical System Two 12 V maintenance-free batteries provide 24 V electrical system. Lockable battery disconnect located on carrier.
Lighting Full LED lighting package, including turn indicators; head, tail, brake and hazard warning lights; and work lights mounted on cab front
  • Six section, MEGAFORM™ boom with TWIN-LOCK™ boom pinning system – Best in class reach and lifting performance.
  • Boom Configurator system increases efficiency and simplifies telescoping operation.
  • Manual or hydraulic bi-fold swingaway with offsets up to 50° improves ability to reach over obstacles and increases jobsite versatility.
  • Wireless rigging remote enables fast and convenient setup.
  • New wider full vision cab with 20° cab tilt and a high-output heating & air conditioning system that maximizes operator comfort.
  • Crane Control System (CCS) – User-friendly operating system with fully adjustable displays and armrest mounted jog dial controls for easy input.
  • Cummins B6.7L Stage V / Tier 4 Final diesel engine – Powerful and reliable performance.
  • ECO mode supports intelligent power management and decreased fuel consumption.
  • Flat decking, additional storage compartments and a full LED lighting package improve access and jobsite set up.
  • Four modes of steering increase jobsite maneuverability and make crane positioning easier.
  • Compact transport height and self-rigging, removable components allow for efficient and easy transportation to the job.
  • Auxiliary Lighting and Convenience Package: Includes superstructure-mounted amber flashing beacon, dual base boom mounted floodlights controlled from cab, in-cab RCL light bar and rubber mat for storage trough.
  • 11,2 m to 17,8 m (36.7 ft to 58.4 ft) bi-fold swingaway, hydraulically offset from 0° to 50° in lieu of the standard manually offsettable swingaway
  • 1 x 8 m (26.2 ft) lattice boom insert
  • Boom nose-mounted, boom position indicator light
  • Wind speed indicator
  • Bluetooth/AM/FM radio
  • Vertical RCL light tower (external)
  • Heated seat
  • Emergency stop buttons on each side of carrier
  • Rear pintle hitch
  • 360° NYC-style mechanical swing lock
  • -29°C/-20°F cold weather package
  • -40°C/-40°F arctic weather package
  • CraneSTAR telematic system
