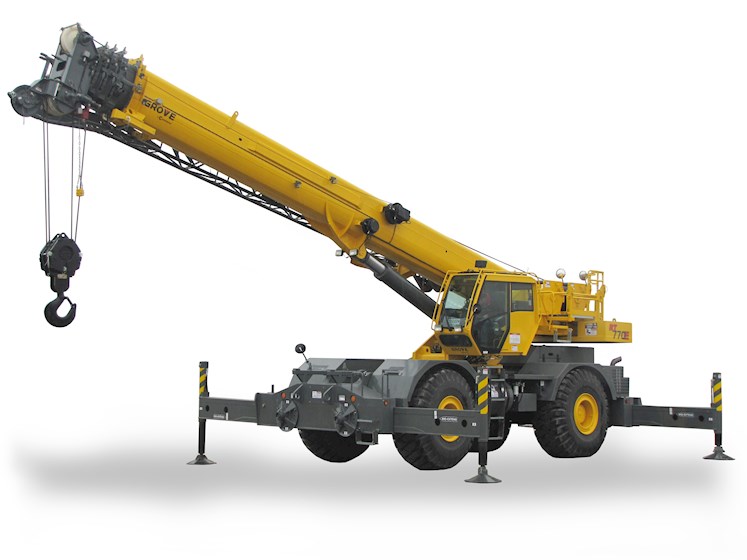

New Grove RT770E Rough Terrain Crane for Sale The RT770E shares a common design platform with the RT765E-2 model, while providing higher nominal capacity and additional reach thanks to the 42 m (138 ft) five-section, full power MEGAFORM™ boom. The full vision cab ensures maximum visibility and operator comfort, while higher permissible line pull and faster line speed than competitive cranes allow for less rigging, higher efficiency and productivity on the jobsite. MEGAFORM™ boom: The superstructure features a full-power fivesection MEGAFORM™ boom that can reach to a maximum tip height of 44,6 m (146 ft). The sequence synchronized extension features telescopic boom sections via a pedal or single lever control Smooth operation: The RT770E has a quick-reeve boom nose and swingaway alignment device to help operators set up smoothly. Extensions: An optional bi-fold swingaway lattice extension easily stows on the side of the base boom for easy transport while providing on-board extension from 10,1 m - 17,1 m (33 ft - 56 ft) for a maximum tip height of 61,6 m (202 ft). By adding the 6,1 m (20 ft) insert, the maximum tip height can be extended to 67,3 m (221 ft). Smooth operation: The RT770E has a quick-reeve boom nose and swingaway alignment device to help operators set up smoothly. CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data. Visit www.cranestar.com for more information. |
| Body | |
|---|---|
| Chassis | Box section frame fabricated from high-strength, low alloy steel. Integral outrigger housings and front/rear towing, lifting, and tie down lugs |
| Cab | Full-vision, all-steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe seat incorporates armrest-mounted hydraulic single-axis controllers. Dash panel incorporates gauges for all engine functions. Other standard features include: hot water heater, air-conditioning, cab circulating air fan, sliding side and rear windows, sliding skylight with electric wiper and sunscreen, electric windshield wash/wipe, fire extinguisher and seat belt |
| Dimensions | |
|---|---|
| Length | 44’7.7” |
| Width | 10.9’ |
| Height | 11’4” |
| Weight | 97,305 lbs. |
| Turning Radius | 23’4” |
| Capacity | 70 T (65 t) |
| Max Tip Height | 221 ft |
| Engine | |
|---|---|
| Engine Make | Cummins |
| Engine Model | QSB 6.7 l |
| Engine Type | Diesel, turbo-charged with Cummins Compact Catalyst (CCC) & selective catalytic reduction (SCR) combo muffler, using diesel exhaust fluid (DEF) injection |
| Cylinders | 6 |
| Horsepower | 260 HP |
| Torque | Maximum torque: 729 ft lb. at 1500 r.p.m |
| Max Travel Speed | 23 mph (37 km/h) no load |
| Fuel Tank Capacity | 74 gal. (280 l) |
| Drivetrain | |
|---|---|
| Drive | 4 x 4 |
| Axles | Front: Drive/steer with differential and planetary reduction hubs rigid-mounted to frame. Rear: Drive/steer with differential and planetary reduction hubs pivot-mounted to frame. Automatic full hydraulic lockouts on rear axle permit 203 mm (8 in) oscillation only with boom centered over the front. |
| Transmission | Rangeshift with 6 forward and 6 reverse speeds (3 speeds high and 3 speeds low). Front axle disconnect for 4 x 2 travel. |
| Hydraulic | |
|---|---|
| Hydraulic Capacity | 169 Gallons |
| Hydraulic System | Three main gear pumps with a combined capacity of 465 LPM (123 GPM). Two individual post pressure compensated valve banks. Return line type filter with full flow by-pass protection and service indicator. Replaceable cartridge with micron filtration rating of 5/12/16. Integral oil cooler. System pressure test ports. |
| Maximum Pressure | 4000 PSI |
| Operational | |
|---|---|
| Brakes | Full hydraulic split circuit brakes operating on all wheels. Spring-applied, hydraulically released axle-mounted parking brake |
| Tires | 29.5 x 25 - 28PR bias earthmover type. |
| Steering | Fully independent power steering: Front: Full hydraulic, steering wheel controlled. Rear: Full hydraulic, switch controlled. Provides infinite variations of 4 main steering modes: front only, rear only, crab and coordinated. Rear steer centered indicating light. |
| Outriggers | Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position settings, 100%, 50% and fully retracted. All steel fabricated, quick-release type round outrigger floats, 610 mm (24 in) diameter. Outrigger Monitoring System required for North America, Canada, and E.U. Countries). Maximum outrigger pad load: 42 550 kg (93,800 lb) |
| Counterweight | 14,365 lb. pinned to superstructure. |
| Gradeability | 75% (based on 44 099 kg [97,220 lb] GVW). 29.5 x 25 tires, pumps engaged, 42 m (138 ft) boom, bi-fold extension, aux. hoist and cable, and 66 USt hookblock |
| Swing | Planetary swing with foot-applied multi-disc brake. Spring applied, hydraulically-released swing brake and plunger-type, one position, mechanical house lock operated from cab. *Optional 360° mechanical swing lock |
| Swing Speed | 2.5 RPM |
| Outrigger Controls | Controls and crane level indicator located in cab |
| Boom | |
|---|---|
| Boom Type | 5-section, sequence synchronized, full power with A&B mode |
| Max Boom Length | 36 ft - 138 ft |
| Max Tip Height-Boom | 146' |
| Hoist | Planetary reduction with automatic spring applied multi-disc brake. Grooved drum. Electronic hoist drum rotation indicator and hoist drum cable followers. |
| Boom Elevation | One double-acting hydraulic cylinder with integral holding valve provides elevation from -3° to 78°. |
| Max Capacity | 70 USt |
| Boom Nose | Four nylatron sheaves mounted on heavy-duty tapered roller bearings with removable pin-type rope guards. Quick-reeve type boom nose. *Optional removable auxiliary boom nose with removable pin type rope guard. |
| Hoist Line Pull | Maximum hoist single line pull: 18,134 lb Maximum single line speed: 502 fpm Maximum permissible line pull: 16,800 lb. with 35 x 7 class rope |
| Electrical | |
|---|---|
| Electrical System | Three 12-volt maintenance free batteries. 12-volt starting and lighting, circuit breakers, battery disconnect switch. |
| Lighting | Full lighting package including turn indicators, head, tail, brake and hazard warning lights. |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Grove |
| MODEL | RT770E |
