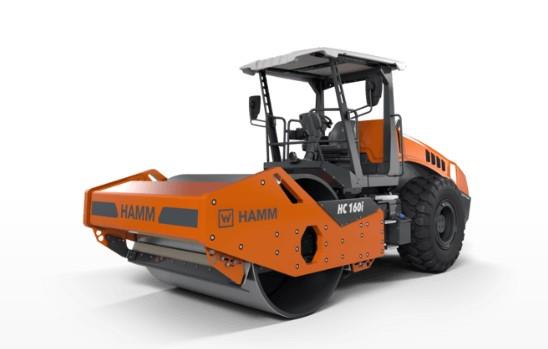

New Hamm HC 160i Compactor for Sale The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.
|
| Dimensions | |
|---|---|
| Length | 248.6” |
| Width | 97.4” |
| Height | 120.2” |
| Weight | 36,140 lbs. |
| Wheelbase | 128.6” |
| Ground Clearance | 18.1” |
| Inside Turning Radius | 162.6” |
| Curb Clearance | 18.8” (left/right) |
| Centrifugal force | 74,250 lbs./58,500 lbs. (Front I/II) |
| Width over Tires | 83.5” (Rear) |
| Tire Size | AW 23.1-26 12 PR |
| Front Slope Angle | 34.2° |
| Rear Slope Angle | 23.7° |
| Engine | |
|---|---|
| Engine Model | JDPS 4045PSS |
| Cylinders | 4 |
| Horsepower | 160.4 HP |
| Fuel Tank Capacity | 74 Gallons |
| Emission Standards | EU Stage V/EPA Tier 4 |
| Drivetrain | |
|---|---|
| Tires | 2 (Rear) |
| Steering | Articulated Steering |
| Speeds | 0.0-7.5 mph |
| Climbing ability | 51%/57% |
| Drive Regulation | Hammtronic |
| Operational | |
|---|---|
| Drum Width | 84.3” |
| Drum Diameter | 59.2” |
| Drum Shell Thickness | 1.8” |
| Vibration Frequency | 1680/1860 VPM (Front, I/II) |
| Static Linear Drum Load | 283.8 lbs./in. (Front) |
| Oscillation Angle | ±12° (max) |
| Drum Type | Smooth |
| Amplitude | 0.083”/0.053” (Front I/II) |
| Weights | |
|---|---|
| Operating Weight | 42,204 lbs. (max) 36,140 lbs. (w/cab) 35,875 lbs. (w/ROPS) 33,990 lbs. (no cab, wo/ROPS) |
| Axle Load | 23,913 lbs. (Front) 12,227 lbs. (Rear) 29,040 lbs. (Front Max) 13,164 lbs. (Rear Max) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Hamm |
| MODEL | HC 160i |
