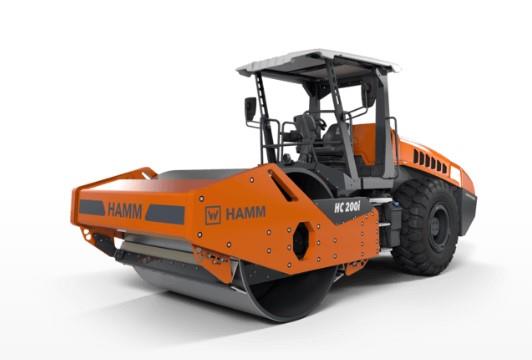

Hamm HC 200i

New Hamm Compactor for Sale

New Hamm HC 200i Compactor for Sale

The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.

  • High compaction performance
  • Spacious driver's platform with Easy Drive operating concept
  • Hammtronic for high comfort, safety and reduced emissions
  • Customised configuration possibilities and a wide range of options
  • Digital ready
Dimensions
Length 262.2”
Width 97.4”
Height 120.6”
Weight 42,424 lbs.
Wheelbase 130.4”
Ground Clearance 18.5”
Inside Turning Radius 168.4”
Curb Clearance 20.4” (left/right)
Centrifugal force 78,750 lbs./56,250 lbs. (Front I/II)
Width over Tires 84.3”
Tire Size AW 23.1-26 12 PR
Front Slope Angle 36.6°
Rear Slope Angle 25.7°
Engine
Engine Model TCD 6.1 L6
Cylinders 6
Horsepower 214.7 HP
Fuel Tank Capacity 88.8 Gallons
Emission Standards EU Stage V/EPA Tier 4
Wheel Load 6,709 lbs. (per tire, rear)
Drivetrain
Tires 2
Steering Articulated
Speeds 0.0-7.4 mph
Climbing ability 51%/57% (vibration on/off)
Drive Regulation Hammrontic
Operational
Drum Width 84.3”
Drum Diameter 63”
Drum Shell Thickness 1.8”
Vibration Frequency 1,620/1,800 VPM (Front, I/II)
Static Linear Drum Load 345.3 lbs./in, front
Oscillation Angle ±12° (max)
Drum Type Smooth
Amplitude 0.087”/0.049” (Front, I/II)
Weights
Operating Weight 47,937 lbs. (max)
42,424 lbs. (w/cab)
41,686 lbs. (w/ROPS)
39,767 lbs. (no cab, wo/ROPS)
Axle Load 29,007 lbs. (Front)
13,417 lbs. (Rear)
32,921 lbs. (Front Max)
15,016 lbs. (Rear Max)
  • Description: Compactor with smooth drum
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 262.2”
  • Width: 97.4”
  • Total Height: 120.6”
  • Drum Width: 84.3”
  • Height, loading, min: 120.6”



  • 12 V outlets (double)
  • 2 large working and rear view mirrors
  • 3-point articulation
  • Dashboard with displays, indicator lights and function key
  • Operating concept Easy Drive
  • ECO mode
  • Speed preselect
  • Hose protection on front vehicle
  • Vibration-isolated operator’s platform
  • Automatic vibration system
  • Traction Control, manual
  • Plastic scraper, for smooth drum
  • Traction Control, automatic
  • Plastic scraper, for smooth drum (2-fold, V-shaped)
  • ROPS cabin with heating and air conditioning, FOPS-approved (level I)
  • Safety belt monitoring device
  • Armrest comfort setting, left
  • Auxiliary heater
  • Tachograph
  • Fire-extinguisher
  • Bluetooth interface for Smart Doc
  • Dozer blade
  • Padfoot shell
  • Frequency regulation
  • Automatic engine-off function
  • Camera system
  • Back-up alarm
  • Working light
  • Rotating beacon
  • Engine hood with electrical easy access engine cover release
  • Coming home lighting
  • Battery isolating switch
  • Homologation
  • Additional mirror
  • Tool kit

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HC 200i

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HC 200i

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HC 200i Compactor for Sale

The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.

  • High compaction performance
  • Spacious driver's platform with Easy Drive operating concept
  • Hammtronic for high comfort, safety and reduced emissions
  • Customised configuration possibilities and a wide range of options
  • Digital ready
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HC 200i
Condition
NEW
Dimensions
Length
262.2”
Width
97.4”
Height
120.6”
Weight
42,424 lbs.
Wheelbase
130.4”
Ground Clearance
18.5”
Inside Turning Radius
168.4”
Curb Clearance
20.4” (left/right)
Centrifugal force
78,750 lbs./56,250 lbs. (Front I/II)
Width over Tires
84.3”
Tire Size
AW 23.1-26 12 PR
Front Slope Angle
36.6°
Rear Slope Angle
25.7°
Engine
Engine Model
TCD 6.1 L6
Cylinders
6
Horsepower
214.7 HP
Fuel Tank Capacity
88.8 Gallons
Emission Standards
EU Stage V/EPA Tier 4
Wheel Load
6,709 lbs. (per tire, rear)
Drivetrain
Tires
2
Steering
Articulated
Speeds
0.0-7.4 mph
Climbing ability
51%/57% (vibration on/off)
Drive Regulation
Hammrontic
Operational
Drum Width
84.3”
Drum Diameter
63”
Drum Shell Thickness
1.8”
Vibration Frequency
1,620/1,800 VPM (Front, I/II)
Static Linear Drum Load
345.3 lbs./in, front
Oscillation Angle
±12° (max)
Drum Type
Smooth
Amplitude
0.087”/0.049” (Front, I/II)
Weights
Operating Weight
47,937 lbs. (max) 42,424 lbs. (w/cab) 41,686 lbs. (w/ROPS) 39,767 lbs. (no cab, wo/ROPS)
Axle Load
29,007 lbs. (Front) 13,417 lbs. (Rear) 32,921 lbs. (Front Max) 15,016 lbs. (Rear Max)

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
