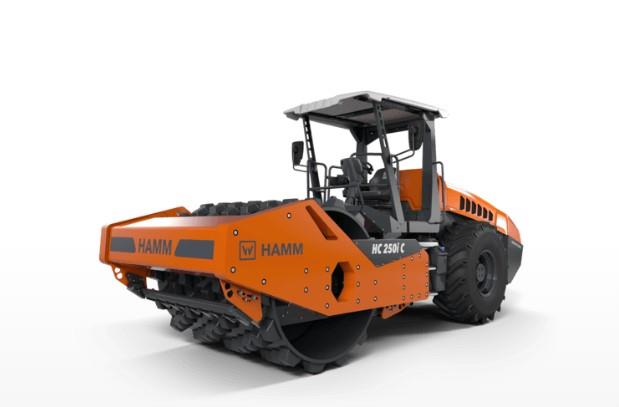

Hamm HC 250i C P

New Compactor for Sale

New Hamm HC 250i C P Compactor for Sale

The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.

  • High compaction performance
  • Spacious driver's platform with Easy Drive operating concept
  • Hammtronic for high comfort, safety and reduced emissions
  • Customised configuration possibilities and a wide range of options
  • Digital ready
Dimensions
Length 268.7”
Width 98.3”
Height 120.6” (w/cab & w/ROPS)
119.6” (loading)
Weight 53,747 lbs.
Wheelbase 137”
Ground Clearance 18.5”
Inside Turning Radius 189.8”
Curb Clearance 20.3” (left/right)
Centrifugal force 78,750 lbs./56,250 lbs. (Front I/II)
Width over Tires 84.3”
Tire Size TR 23.1-26 12 PR
Front Slope Angle 33.6°
Rear Slope Angle 25.7°
Engine
Engine Make Deutz
Engine Model TCD 6.1 L6
Cylinders 6
Horsepower 214.7 HP
Fuel Tank Capacity 88.8 Gallons
Emission Standards EU Stage V/EPA Tier 4
Wheel Load 7,503 lbs. (per tire, rear)
Drivetrain
Tires 2
Steering Articulated
Speeds 0.0-7.5 mph
Climbing ability 59%/66% (vibration on/off)
Drive Regulation Hammrontic
Operational
Drum Width 84.3”
Drum Diameter 70.5”
Drum Shell Thickness 1.4”
Vibration Frequency 1,620/1,800 VPM (Front, I/II)
Static Linear Drum Load 459.7 lbs./in, front
Oscillation Angle ±12° (max)
Padfeet Height: 3.9”
Number: 140
Drum Type Padfoot
Amplitude 0.083”/0.047” (Front, I/II)
Weights
Operating Weight 55,412 lbs. (max)
53,747 lbs. (w/cab)
53,008 lbs. (w/ROPS)
51,101 lbs. (no cab, wo/ROPS)
Axle Load 38,742 lbs. (Front)
15,005 lbs. (Rear)
38,808 lbs. (Front Max)
16,604 lbs. (Rear Max)
  • Description: Compactor with padfoot drum
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 268.7”
  • Width: 98.3”
  • Total Height: 120.6”
  • Drum Width: 84.3”
  • Height, loading, min: 120.6”



  • 12 V outlets (double)
  • 2 large working and rear view mirrors
  • 3-point articulation
  • Dashboard with displays, indicator lights and function key
  • Operating concept Easy Drive
  • ECO mode
  • Speed preselect
  • Hose protection on front vehicle
  • Vibration-isolated operator’s platform
  • Automatic vibration system
  • Traction Control, automatic
  • Steel scraper, for padfoot drum
  • ROPS cabin with heating and air conditioning, FOPS-approved (level I)
  • Safety belt monitoring device
  • Armrest comfort setting, left
  • Auxiliary heater
  • Tachograph
  • Fire-extinguisher
  • Bluetooth interface for Smart Doc
  • Frequency regulation
  • Automatic engine-off function
  • Camera system
  • Back-up alarm
  • Working light
  • Rotating beacon
  • Engine hood with electrical easy access engine cover release
  • Coming home lighting
  • Battery isolating switch
  • Additional mirror
  • Tool kit
