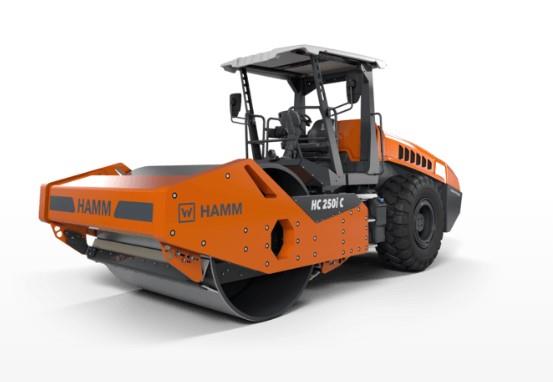

Hamm HC 250i C R

New Hamm Compactor for Sale

New Hamm HC 250i C R Compactor for Sale

The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.

  • High compaction performance
  • Spacious driver's platform with Easy Drive operating concept
  • Hammtronic for high comfort, safety and reduced emissions
  • Customised configuration possibilities and a wide range of options
  • Digital ready
Dimensions
Length 268.7”
Width 98.3”
Height 120.6”
Weight 53,515 lbs.
Wheelbase 137”
Ground Clearance 18.5”
Inside Turning Radius 189.8”
Curb Clearance 20.4” (left/right)
Centrifugal force 77,186 lbs./54,842 lbs. (Front I/II)
Width over Tires 84.3”
Tire Size AW 23.1-26 12 PR
Front Slope Angle 36.6°
Rear Slope Angle 25.7°
Engine
Engine Model TCD 6.1 L6
Cylinders 6
Horsepower 214.7 HP
Fuel Tank Capacity 88.8 Gallons
Emission Standards EU Stage V/EPA Tier 4
Wheel Load 7,503 lbs. (per tire, rear)
Drivetrain
Tires 2
Steering Articulated
Speeds 0.0-7.4 mph
Climbing ability 56%/62% (vibration on/off)
Drive Regulation Hammrontic
Operational
Drum Width 84.3”
Drum Diameter 63”
Drum Shell Thickness 1.8”
Vibration Frequency 1,620/1,800 VPM (Front, I/II)
Static Linear Drum Load 451.6 lbs./in, front
Oscillation Angle ±12° (max)
Drum Type Smooth
Amplitude 0.087”/0.049” (Front, I/II)
Weights
Operating Weight 55,169 lbs. (max)
53,515 lbs. (w/cab)
52,777 lbs. (w/ROPS)
50,869 lbs. (no cab, wo/ROPS)
Axle Load 38,510 lbs. (Front)
15,005 lbs. (Rear)
38,565 lbs. (Front Max)
16,604 lbs. (Rear Max)
  • Description: Compactor with smooth drum
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 268.7”
  • Width: 98.3”
  • Total Height: 120.6”
  • Drum Width: 84.3”
  • Height, loading, min: 120.6”



  • 12 V outlets (double)
  • 2 large working and rear view mirrors
  • 3-point articulation
  • Dashboard with displays, indicator lights and function key
  • Operating concept Easy Drive
  • ECO mode
  • Speed preselect
  • Hose protection on front vehicle
  • Vibration-isolated operator’s platform
  • Automatic vibration system
  • Traction Control, automatic
  • Plastic scraper, for smooth drum
  • Plastic scraper, for smooth drum (2-fold, V-shaped)
  • ROPS cabin with heating and air conditioning, FOPS-approved (level I)
  • Safety belt monitoring device
  • Armrest comfort setting, left
  • Auxiliary heater
  • Tachograph
  • Fire-extinguisher
  • Bluetooth interface for Smart Doc
  • Frequency regulation
  • Automatic engine-off function
  • Camera system
  • Back-up alarm
  • Working light
  • Rotating beacon
  • Engine hood with electrical easy access engine cover release
  • Coming home lighting
  • Battery isolating switch
  • Homologation
  • Additional mirror
  • Tool kit

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HC 250i C R

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HC 250i C R

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HC 250i C R Compactor for Sale

The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.

  • High compaction performance
  • Spacious driver's platform with Easy Drive operating concept
  • Hammtronic for high comfort, safety and reduced emissions
  • Customised configuration possibilities and a wide range of options
  • Digital ready
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HC 250i C R
Condition
NEW
Dimensions
Length
268.7”
Width
98.3”
Height
120.6”
Weight
53,515 lbs.
Wheelbase
137”
Ground Clearance
18.5”
Inside Turning Radius
189.8”
Curb Clearance
20.4” (left/right)
Centrifugal force
77,186 lbs./54,842 lbs. (Front I/II)
Width over Tires
84.3”
Tire Size
AW 23.1-26 12 PR
Front Slope Angle
36.6°
Rear Slope Angle
25.7°
Engine
Engine Model
TCD 6.1 L6
Cylinders
6
Horsepower
214.7 HP
Fuel Tank Capacity
88.8 Gallons
Emission Standards
EU Stage V/EPA Tier 4
Wheel Load
7,503 lbs. (per tire, rear)
Drivetrain
Tires
2
Steering
Articulated
Speeds
0.0-7.4 mph
Climbing ability
56%/62% (vibration on/off)
Drive Regulation
Hammrontic
Operational
Drum Width
84.3”
Drum Diameter
63”
Drum Shell Thickness
1.8”
Vibration Frequency
1,620/1,800 VPM (Front, I/II)
Static Linear Drum Load
451.6 lbs./in, front
Oscillation Angle
±12° (max)
Drum Type
Smooth
Amplitude
0.087”/0.049” (Front, I/II)
Weights
Operating Weight
55,169 lbs. (max) 53,515 lbs. (w/cab) 52,777 lbs. (w/ROPS) 50,869 lbs. (no cab, wo/ROPS)
Axle Load
38,510 lbs. (Front) 15,005 lbs. (Rear) 38,565 lbs. (Front Max) 16,604 lbs. (Rear Max)
