Hamm HD 10C VT

Hamm HD 10C VT

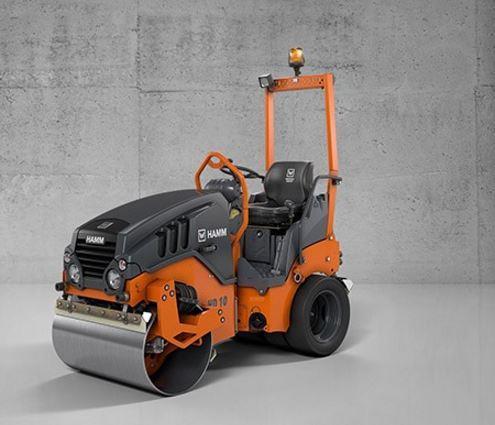

New Hamm HD 10C VT Compactor for Sale

Articulated combi roller with vibratory drum

  • 3-point swivel joint for optimum driving comfort
  • Clear Side — one-sided drum mounting
  • Low machine height
  • Modern instrument panel
  • Low working platform, high tilt resistance
  • Optimum front view due to concaving front end
  • Central suspension point
Dimensions
Length 89 in. (2,260 mm)
Width 40.9 in. (1,040 mm)
Height 87 in. (2,210 mm)
Weight 3,594.15lbs
Wheelbase 61.4 in. (1,560 mm)
Inside Turning Radius 83.9 in. (2,130 mm)
Steering Angle +/-33°
Drum Smooth/Non-Split
Engine
Engine Make Kubota
Engine Model D1005
Engine Type 3-cylinder
Horsepower 19.8 hp (14.8 kW) @ 2,700 rpm
Fuel Tank Capacity 11 gal. (42 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 39.37 in. (1,000 mm)
Drum Diameter 24.4 in. (620 mm)
Nominal Amplitude Front I / II: 0.018 in. (0.45 mm)
Vibration Frequency Front I / II: 3,120 / 3,900 vpm (52 / 65 Hz)
Centrigual Force Range Front I / II: 3,600 / 5,625 lbs. (16 / 25 kN)
Travel Speed - Forward 0 - 6.8 mph (0 - 11 km/h)
Water Tank Capacity 18.5 gal. (70 l)
Application Asphalt
Static Linear Drum Load 44.2 lbs./in. (7.9 kg/cm) front
Weights
Operating Weight 4,035 lbs. (1,830 kg) maximum
3,594 lbs. (1,630 kg) with ROPS
Axle Load 1,775 lbs. (805 kg) front
1,819 lbs. (825 kg) rear
  • Description: Tandem roller with vibrating roller drum and set of tires
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 90.9”
  • Width: 42.1”
  • Total Height: 87”
  • Drum Width: 39.4” (front and rear)
  • Height, loading, min: 62.2”
  • 12 V outlet
  • Central lifting bracket
  • Water filtering (triple)
  • Automatic vibration system
  • V-belt protection
  • Operator’s platform with entry from both sides
  • Pressure water sprinkling with interval switch
  • Clear Side
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • Plastic scraper, foldable
  • Tool kit
  • Additional mirror
  • Water drain valve
  • Bonnet with sound insulation
  • Battery isolating switch
  • Rotating beacon
  • Working light
  • Back-up alarm
  • Automatic engine-off function
  • Protective roof
  • Additional drive lever, left

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD 10C VT

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD 10C VT

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HD 10C VT Compactor for Sale

Articulated combi roller with vibratory drum

  • 3-point swivel joint for optimum driving comfort
  • Clear Side — one-sided drum mounting
  • Low machine height
  • Modern instrument panel
  • Low working platform, high tilt resistance
  • Optimum front view due to concaving front end
  • Central suspension point
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD 10C VT
Condition
NEW
Dimensions
Length
89 in. (2,260 mm)
Width
40.9 in. (1,040 mm)
Height
87 in. (2,210 mm)
Weight
3,594.15lbs
Wheelbase
61.4 in. (1,560 mm)
Inside Turning Radius
83.9 in. (2,130 mm)
Steering Angle
+/-33°
Drum
Smooth/Non-Split
Engine
Engine Make
Kubota
Engine Model
D1005
Engine Type
3-cylinder
Horsepower
19.8 hp (14.8 kW) @ 2,700 rpm
Fuel Tank Capacity
11 gal. (42 l)
Drivetrain
Drive
Hydrostatic
Operational
Drum Width
39.37 in. (1,000 mm)
Drum Diameter
24.4 in. (620 mm)
Nominal Amplitude
Front I / II: 0.018 in. (0.45 mm)
Vibration Frequency
Front I / II: 3,120 / 3,900 vpm (52 / 65 Hz)
Centrigual Force Range
Front I / II: 3,600 / 5,625 lbs. (16 / 25 kN)
Travel Speed - Forward
0 - 6.8 mph (0 - 11 km/h)
Water Tank Capacity
18.5 gal. (70 l)
Application
Asphalt
Static Linear Drum Load
44.2 lbs./in. (7.9 kg/cm) front
Weights
Operating Weight
4,035 lbs. (1,830 kg) maximum 3,594 lbs. (1,630 kg) with ROPS
Axle Load
1,775 lbs. (805 kg) front 1,819 lbs. (825 kg) rear
