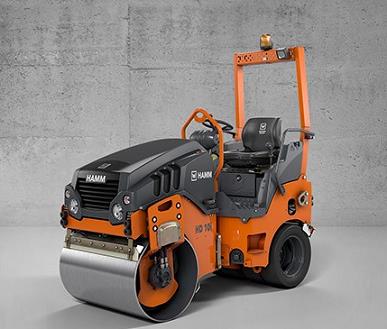

Hamm HD 10i VT

New Hamm Roller for Sale

New Hamm HD 10i VT Compactor for Sale

HAMM offers a wide range of products for all aspects of soil and asphalt compaction, utilizing leading machine and compaction technology. Along with the technical requirements, ergonomic design and simple operation are prime concerns. And thus, HAMM finds a perfect balance of technology and ergonomic design.

In 1911, Hans Hamm set a milestone when he designed and built the world's first diesel engine driven road roller. At its headquarters in Tirschenreuth, HAMM continues to set new standards, even today, with regards to the design and ergonomics of its compactors, tandem and rubber-tired rollers as well as compaction with oscillation.

Articulated combi roller with vibratory drum

  • Simple, intuitive and language-neutral control
  • Simple transport, simple loading
  • Ergonomic driver platform
  • Excellent view of drum edge, machine and construction site environment
  • Compact dimensions
Dimensions
Length 99.6”
Width Total-43.7”
Height 97.4” w/ROPS; 69.0”-min. loading
Wheelbase 66.9”
Steering Angle 8° (Oscillation angle +/-)
Centrifugal force Front I-7,875 lbs.; Front II-4,725 lbs.
Tire Size 205-60-R15
Engine
Engine Make Kubota
Engine Model D1803-CR
Cylinders 3
Horsepower 32.2 HP
Fuel Tank Capacity 11.1 gallons
Emission Standards EU Stage V/EPA Tier 4
Drivetrain
Tires 4
Steering Articulated Steering
Speeds 6.0 mph
Climbing ability Vibration on-30%; Vibration off-40%
Operational
Drum Width 39.4” (front)
Drum Diameter 28.3” (front)
Drum Shell Thickness .6” (front)
Nominal Amplitude Front I/II-.018”
Vibration Frequency Front I-4,020 VMP; Front II-3,120 VPM
Working Width 41.3”
Water Tank Capacity 47.6 gallons
Static Linear Drum Load Front -67.8 lbs./in.
Sprinkler System Pressure
Drum Type Smooth/nondivided (front)
Track Offset 0.0”/2.0” (left/right)
Weights
Operating Weight 5,259 lbs. w/ROPS; 6,858 lbs. max.
  • Description: Tandem roller with vibrating roller drum and set of tires
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 99.6”
  • Width: 43.7”
  • Total Height: 97.4”
  • Drum Width: 39.4”
  • Height, loading, min: 69”
  • 12 V outlet
  • Lighting package as per road traffic regulations
  • Central water drain
  • Central lifting bracket
  • Water filtering (triple)
  • Automatic vibration system
  • Track offset, mechanical
  • Mechanical battery isolation switch
  • Left and right drive lever
  • Operator’s platform with entry from both sides
  • Pressure water sprinkling with interval switch
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • Plastic scraper, foldable
  • Tow hitch
  • Tow eye, front
  • Water drain valve
  • Cup holder
  • Drum edge lighting
  • Rotating beacon
  • Working light
  • Telematics system, interface
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • HAMM Compaction Meter (HCM)
  • Anti-freeze injection
  • All-wheel lock
  • Thermal aprons
  • Chip spreader
  • Edge pressing and cutting equipment, track indicator
  • Edge pressing and cutting equipment
  • Protective roof
  • Safety belt monitoring device
  • ROPS, foldable

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD 10i VT

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD 10i VT

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HD 10i VT Compactor for Sale

HAMM offers a wide range of products for all aspects of soil and asphalt compaction, utilizing leading machine and compaction technology. Along with the technical requirements, ergonomic design and simple operation are prime concerns. And thus, HAMM finds a perfect balance of technology and ergonomic design.

In 1911, Hans Hamm set a milestone when he designed and built the world's first diesel engine driven road roller. At its headquarters in Tirschenreuth, HAMM continues to set new standards, even today, with regards to the design and ergonomics of its compactors, tandem and rubber-tired rollers as well as compaction with oscillation.

Articulated combi roller with vibratory drum

  • Simple, intuitive and language-neutral control
  • Simple transport, simple loading
  • Ergonomic driver platform
  • Excellent view of drum edge, machine and construction site environment
  • Compact dimensions
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD 10i VT
Condition
NEW
Dimensions
Length
99.6”
Width
Total-43.7”
Height
97.4” w/ROPS; 69.0”-min. loading
Wheelbase
66.9”
Steering Angle
8° (Oscillation angle +/-)
Centrifugal force
Front I-7,875 lbs.; Front II-4,725 lbs.
Tire Size
205-60-R15
Engine
Engine Make
Kubota
Engine Model
D1803-CR
Cylinders
3
Horsepower
32.2 HP
Fuel Tank Capacity
11.1 gallons
Emission Standards
EU Stage V/EPA Tier 4
Drivetrain
Tires
4
Steering
Articulated Steering
Speeds
6.0 mph
Climbing ability
Vibration on-30%; Vibration off-40%
Operational
Drum Width
39.4” (front)
Drum Diameter
28.3” (front)
Drum Shell Thickness
.6” (front)
Nominal Amplitude
Front I/II-.018”
Vibration Frequency
Front I-4,020 VMP; Front II-3,120 VPM
Working Width
41.3”
Water Tank Capacity
47.6 gallons
Static Linear Drum Load
Front -67.8 lbs./in.
Sprinkler System
Pressure
Drum Type
Smooth/nondivided (front)
Track Offset
0.0”/2.0” (left/right)
Weights
Operating Weight
5,259 lbs. w/ROPS; 6,858 lbs. max.
