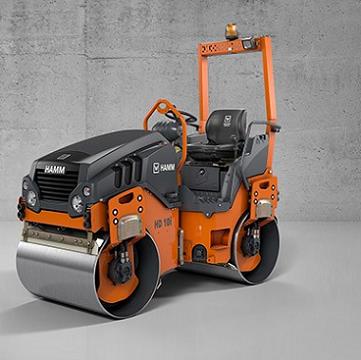

Hamm HD 10i VV

New Tandem Roller for Sale

New Hamm HD 10i VV Compactor for Sale

HAMM offers a wide range of products for all aspects of soil and asphalt compaction, utilizing leading machine and compaction technology. Along with the technical requirements, ergonomic design and simple operation are prime concerns. And thus, HAMM finds a perfect balance of technology and ergonomic design.

In 1911, Hans Hamm set a milestone when he designed and built the world's first diesel engine driven road roller. At its headquarters in Tirschenreuth, HAMM continues to set new standards, even today, with regards to the design and ergonomics of its compactors, tandem and rubber-tired rollers as well as compaction with oscillation.

Articulated tandem roller with 2 vibratory drums

  • Simple, intuitive and language-neutral control
  • Simple transport, simple loading
  • Ergonomic driver platform
  • Excellent view of drum edge, machine and construction site environment
  • Compact dimensions
Dimensions
Length 99.6”
Width Total-43.7”
Height 97.4” w/ROPS; 69.0”-min. loading
Wheelbase 66.9”
Steering Angle 8° (Oscillation angle +/-)
Centrifugal force Front/Rear I-10,350 lbs.; Front/Rear II-6,300 lbs.
Engine
Engine Make Kubota
Engine Model D1803-CR
Cylinders 3
Horsepower 32.2 HP
Fuel Tank Capacity 11.1 gallons
Emission Standards EU Stage V/EPA Tier 4
Drivetrain
Steering Articulated Steering
Speeds 0.0-7.5 mph
Climbing ability Vibration on-30%; Vibration off-40%
Operational
Drum Width 39.4” (front/rear)
Drum Diameter 28.3” (front/rear)
Drum Shell Thickness .6” (front/rear)
Nominal Amplitude Front/Rear I/II-.021”
Vibration Frequency Front/Rear I-4,020 VMP; Front/Rear II-3,120 VPM
Working Width 41.3”
Water Tank Capacity 47.6 gallons
Static Linear Drum Load Front/Rear-67.8/71.1 lbs./in.
Sprinkler System Pressure
Drum Type Smooth/nondivided (front/rear)
Track Offset 0.0”/2.0” (left/right)
Weights
Operating Weight 5,457 lbs. w/ROPS; 7,034 lbs. max.
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 99.6”
  • Width: 43.7”
  • Total Height: 97.4”
  • Drum Width: 39.4” (front and rear)
  • Height, loading, min: 69”
  • 12 V outlet
  • Lighting package as per road traffic regulations
  • Central water drain
  • Central lifting bracket
  • Water filtering (triple)
  • Automatic vibration system
  • Track offset, mechanical
  • Mechanical battery isolation switch
  • Left and right drive lever
  • Operator’s platform with entry from both sides
  • Pressure water sprinkling with interval switch
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • Plastic scraper, foldable
  • Tow hitch
  • Tow eye, front
  • Water drain valve
  • Cup holder
  • Drum edge lighting
  • Rotating beacon
  • Working light
  • Telematics system, interface
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • HAMM Compaction Meter (HCM)
  • Anti-freeze injection
  • All-wheel lock
  • Chip spreader
  • Edge pressing and cutting equipment, track indicator
  • Edge pressing and cutting equipment
  • Protective roof
  • Safety belt monitoring device
  • ROPS, foldable
