Hamm HD 12e OT

New Hamm Tandem Roller

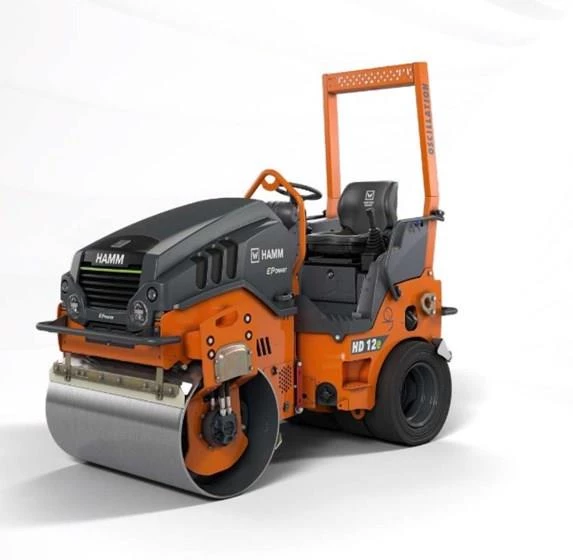

New Hamm HD 12e OT Tandem Roller for Sale

Tandem roller with oscillation drum and set of wheels

  • Electrical operation, with no compromise on driving or compacting performance
  • Compaction with oscillation
  • Recuperation for extended lifetime
  • High efficiency from electric motors for vibration/oscillation
  • Zero local emissions, with low noise



Technologies

  • Three-point articulation: Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints.  This allows optimum steering, excellent driving safety and maximum driving comfort.
  • Oscillation: In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other.  Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement.  This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces.  The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases.  The scope of application is enormous.
  • Electric Rollers: Demand for low-emission or even zero-emission construction machines keeps growing. And the road construction and earthworks sector is no exception to this trend.  HAMM has factored this into its product development, enabling customers around the world to benefit from quiet and emission-free compaction with electric rollers
Body
Center Distance 66.9”
Dimensions
Length 99.6”
Width 51.6”
Height 97.4”
69.0” (loading)
Weight 6,990 lbs.
6,009 lbs. w/ROPS
5,490 lbs. wo/ROPS, wo/cab
Ground Clearance 11”
Inside Turning Radius 93.3”
Curb Clearance 22.4” (left/right)
Centrifugal force 9,158 lbs. Front I
5,625 lbs. Front II
Width over Tires 44.9”
Tire Size 9,5/65-15
Number of Tires 4 (rear)
Engine
Wheel Load 714 lbs. (rear) per tire
Drivetrain
Steering Articulated steering
Speeds 0-6 mph
Operational
Gradeability 40% with vibration
44% without vibration
Drum Width 47.2”
Drum Diameter 28.3” front
Drum Shell Thickness 0.6” front
Working Width 48”
Water Tank Capacity 47.6 Gallons
Static Linear Drum Load 65.6 lbs./in. front
Drum Type Smooth/non-split
Oscillation Force 8,235 lbs./4,797 lbs. front I/II
Tangential Amplitude 0.046” Front I/II
Track Offset 0.0” (left)
2.0” (right)
Water Sprinkling Type Pressure
Swing Angle 8°
Additive Tank Capacity 4.8 Gallons
Electrical
Battery Capacity 23,4 kWh
Battery Type NMC lithium-ion
Sound Power 104 db(A) guaranteed
99 db(A) representative measurement
Battery Plug Type CEE 7/4 (earthed type F); CEE 16 A for 230 V/400 V Plug Type
Nominal Voltage 48 V
Weights
Axle Load 3,153 lbs. front
2,855 lbs. rear
3,594 lbs. front @ max. operating weight
3,396 lbs. rear @ max. operating weight
  • Description: Tandem roller with oscillation drum and set of wheels
  • Total Length: 99.6”
  • Width: 51.6”
  • Total Height: 97.4”
  • Drum Width: 47.2”
  • Height, loading, min: 69”
  • 12 V socket + USB
  • Central water outlet
  • Central lifting bracket
  • Water filter system (3-fold)
  • Automatic vibration system
  • CompactLine front towing eye
  • Track offset, mechanical
  • Drive lever, left and right
  • Driver’s platform with access from both sides
  • Pressure water sprinkling system
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • ROPS, folding
  • Drum edge lighting
  • Rotating beacon
  • Working spotlights
  • JDLink
  • Back-up alarm
  • HAMM Temperature Meter (HTM)
  • Edge pressing and cutting equipment
  • Protective roof
  • Seat belt monitoring device

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD 12e OT

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD 12e OT

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HD 12e OT Tandem Roller for Sale

Tandem roller with oscillation drum and set of wheels

  • Electrical operation, with no compromise on driving or compacting performance
  • Compaction with oscillation
  • Recuperation for extended lifetime
  • High efficiency from electric motors for vibration/oscillation
  • Zero local emissions, with low noise



Technologies

  • Three-point articulation: Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints.  This allows optimum steering, excellent driving safety and maximum driving comfort.
  • Oscillation: In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other.  Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forward-backward rotational movement.  This results in the compaction energy being transmitted forward and backward tangentially into the ground below in the form of shear forces.  The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher-quality, leading to faster, more significant compaction increases.  The scope of application is enormous.
  • Electric Rollers: Demand for low-emission or even zero-emission construction machines keeps growing. And the road construction and earthworks sector is no exception to this trend.  HAMM has factored this into its product development, enabling customers around the world to benefit from quiet and emission-free compaction with electric rollers
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD 12e OT
Condition
NEW
Body
Center Distance
66.9”
Dimensions
Length
99.6”
Width
51.6”
Height
97.4” 69.0” (loading)
Weight
6,990 lbs. 6,009 lbs. w/ROPS 5,490 lbs. wo/ROPS, wo/cab
Ground Clearance
11”
Inside Turning Radius
93.3”
Curb Clearance
22.4” (left/right)
Centrifugal force
9,158 lbs. Front I 5,625 lbs. Front II
Width over Tires
44.9”
Tire Size
9,5/65-15
Number of Tires
4 (rear)
Engine
Wheel Load
714 lbs. (rear) per tire
Drivetrain
Steering
Articulated steering
Speeds
0-6 mph
Operational
Gradeability
40% with vibration 44% without vibration
Drum Width
47.2”
Drum Diameter
28.3” front
Drum Shell Thickness
0.6” front
Working Width
48”
Water Tank Capacity
47.6 Gallons
Static Linear Drum Load
65.6 lbs./in. front
Drum Type
Smooth/non-split
Oscillation Force
8,235 lbs./4,797 lbs. front I/II
Tangential Amplitude
0.046” Front I/II
Track Offset
0.0” (left) 2.0” (right)
Water Sprinkling Type
Pressure
Swing Angle
8°
Additive Tank Capacity
4.8 Gallons
Electrical
Battery Capacity
23,4 kWh
Battery Type
NMC lithium-ion
Sound Power
104 db(A) guaranteed 99 db(A) representative measurement
Battery Plug Type
CEE 7/4 (earthed type F); CEE 16 A for 230 V/400 V Plug Type
Nominal Voltage
48 V
Weights
Axle Load
3,153 lbs. front 2,855 lbs. rear 3,594 lbs. front @ max. operating weight 3,396 lbs. rear @ max. operating weight
