Hamm HD 13i VT

Hamm HD 13i VT

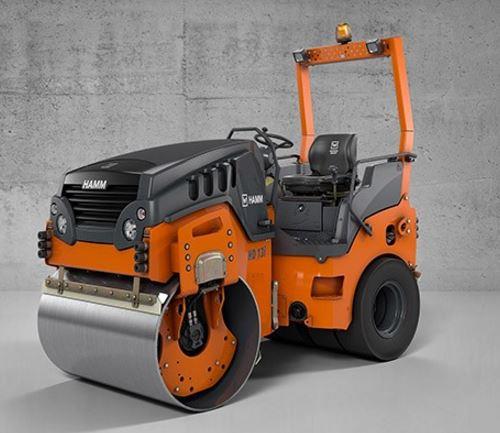

New Hamm HD 13i VT Compactor for Sale

Articulated combi roller with vibratory drum

  • 3-point swivel joint for optimum driving comfort
  • Ergonomic driver platform
  • Low machine height
  • Convenient maintenance and service
  • Modern instrument panel
  • Optimum front view due to concaving front end
  • Good visibility — optimum view of drum's outer edges
Dimensions
Length 112.6"
Width 56.14"
Height 101.97"
Wheelbase 76.77"
Ground Clearance Left/Right: 28.35"
Inside Turning Radius 105.91"
Drum Smooth/nondivided
Engine
Engine Make Kubota
Engine Type V2403-CR
Cylinders 4
Horsepower 49.3 HP
Fuel Tank Capacity 19.28 gal
Drivetrain
Tires Rear Size: 10.5/80-16
Width over Rear Tires: 50.24"
Number of Rear Tires: 4
Steering Articulated
Climbing ability Vibration on/off: 30/40
Operational
Drum Width 51.18"
Drum Diameter 35.43"
Drum Shell Thickness 0.67"
Nominal Amplitude Front I/II: 0.02"/0.01"
Vibration Frequency Front, I/II: 3600/3060 vpm
Centrigual Force Range Front I/II: 14,400 lbs/8,775 lbs
Water Tank Capacity 75.29 gal
Static Linear Drum Load 91.28 lbs/in
Oscillation Angle +/-: 8
Sprinkler System Water Sprinkler/ Additive Sprinkling: Pressure
Weights
Operating Weight 8,632.57 lbs
  • Description: Tandem roller with vibrating roller drum and set of tires
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 116.7”
  • Width: 56.1”
  • Total Height: 102”
  • Drum Width: 51.2”
  • Height, loading, min: 71.7”
  • 12 V outlet
  • CompactLine front suspension eyelet
  • Central water drain
  • Water filtering (triple)
  • Automatic vibration system
  • Track offset, mechanical
  • Mechanical battery isolation switch
  • V-belt protection
  • Left and right drive lever
  • Operator’s platform with entry from both sides
  • Pressure water sprinkling with interval switch
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • Plastic scraper, foldable
  • Drum edge lighting
  • Tool kit
  • Additional mirror
  • Bonnet with sound insulation
  • Battery isolating switch
  • Rotating beacon
  • Working light
  • Telematics system, interface
  • Back-up alarm
  • HAMM Temperature Meter (HTM)
  • Compaction meter HCQ
  • Thermal aprons
  • Chip spreader
  • Edge pressing and cutting equipment
  • Protective roof
  • Radio
  • Safety belt monitoring device
  • ROPS cabin with heating

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD 13i VT

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD 13i VT

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HD 13i VT Compactor for Sale

Articulated combi roller with vibratory drum

  • 3-point swivel joint for optimum driving comfort
  • Ergonomic driver platform
  • Low machine height
  • Convenient maintenance and service
  • Modern instrument panel
  • Optimum front view due to concaving front end
  • Good visibility — optimum view of drum's outer edges
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD 13i VT
Condition
NEW
Dimensions
Length
112.6"
Width
56.14"
Height
101.97"
Wheelbase
76.77"
Ground Clearance
Left/Right: 28.35"
Inside Turning Radius
105.91"
Drum
Smooth/nondivided
Engine
Engine Make
Kubota
Engine Type
V2403-CR
Cylinders
4
Horsepower
49.3 HP
Fuel Tank Capacity
19.28 gal
Drivetrain
Tires
Rear Size: 10.5/80-16 Width over Rear Tires: 50.24" Number of Rear Tires: 4
Steering
Articulated
Climbing ability
Vibration on/off: 30/40
Operational
Drum Width
51.18"
Drum Diameter
35.43"
Drum Shell Thickness
0.67"
Nominal Amplitude
Front I/II: 0.02"/0.01"
Vibration Frequency
Front, I/II: 3600/3060 vpm
Centrigual Force Range
Front I/II: 14,400 lbs/8,775 lbs
Water Tank Capacity
75.29 gal
Static Linear Drum Load
91.28 lbs/in
Oscillation Angle
+/-: 8
Sprinkler System
Water Sprinkler/ Additive Sprinkling: Pressure
Weights
Operating Weight
8,632.57 lbs
