Hamm HD+ 140i VO

Hamm HD+ 140i VO

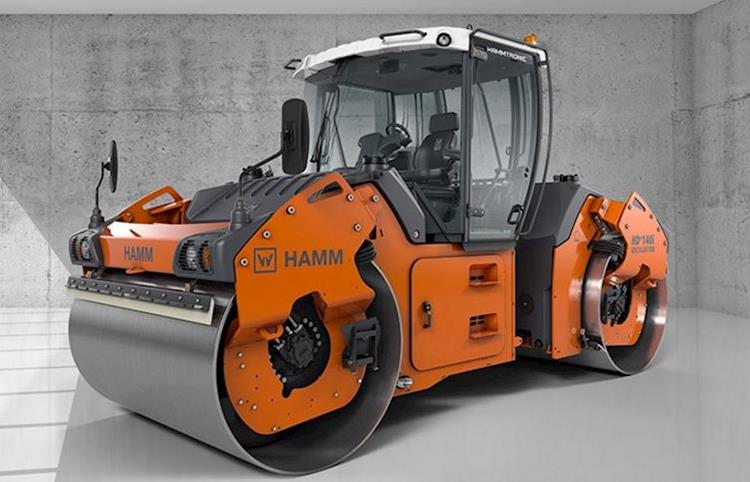

New Hamm HD+ 140i VO Compactor for Sale

Articulated tandem roller with vibratory and oscillating drum

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 204.7 in. (5,200 mm)
Width 89 in. (2,260 mm)
Height 117.3 in. (2,980 mm)
Weight 28,565.77lbs
Wheelbase 149.6 in. (3,800 mm)
Inside Turning Radius 235.4 in. (5,980 mm)
Steering Angle +/-30°
Drum Front & Rear: Smooth/Non-Split
Engine
Engine Make Deutz
Engine Model TCD 4.1 L4
Engine Type 4-cylinder
Horsepower 154.1 hp (115 kW) @ 2,300 rpm
Fuel Tank Capacity 68.7 gal. (260 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 84.25 in. (2,140 mm)
Drum Diameter 55.1 in. (1,400 mm)
Nominal Amplitude Front I / II: 0.034 / 0.019 in. (0.86 / 0.47 mm)
Vibration Frequency Front I / II: 2,400 / 3,000 vpm (40 / 50 Hz)
Centrigual Force Range Front I / II: 40,500 / 33,750 lbs. (180 / 150 kN)
Travel Speed - Forward 0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity 302.5 gal. (1,145 l)
Application Asphalt
Static Linear Drum Load 165.6 lbs./in. (29.6 kg/cm) front
169.6 lbs./in. (30.3 kg/cm) rear
Weights
Operating Weight 28,232 lbs. (12,806 kg) with ROPS
Axle Load 13,947 lbs. (6,326 kg) front
14,285 lbs. (6,480 kg) rear
  • Description: Tandem roller with vibrating roller drum and oscillation drum
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 208.7”
  • Width: 89”
  • Total Height: 117.3”
  • Drum Width: 84.3” (front and rear)
  • Height, loading, min: 84.3”
  • 12 V outlet
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Spray system with spray bars front and rear
  • Track offset, hydraulic
  • Vibration-isolated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Operating concept Easy Drive
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Working light
  • Cutting disc
  • Compaction meter HCQ
  • Rotating beacon
  • Radio
  • Automatic engine-off function
  • Heating and air conditioning
  • Edge pressing and cutting equipment
  • Track offset display
  • HCQ navigator
  • Fire extinguisher
  • Tachograph
  • Coming home lighting
  • Tool kit
  • Back-up alarm
  • Drum edge lighting
  • ROPS cabin with non-split doors
  • Dashboard cover
  • HAMM Temperature Meter (HTM)
  • Locking device
