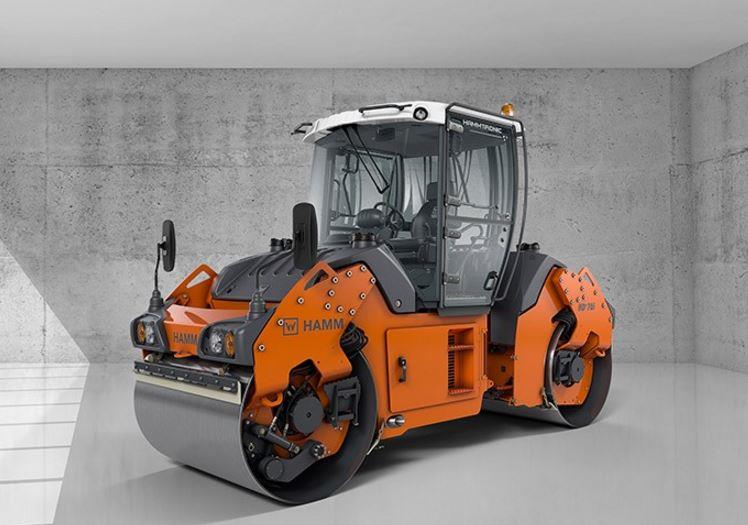

New Hamm HD+ 70i VV Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 176.4 in. (4,480 mm)
Width 63.8 in. (1,620 mm)
Height 113.8 (2,890 mm)
Weight 16,206.75lbs
Wheelbase 131.5 in. (3,340 mm)
Inside Turning Radius 166.5 in. (4,230 mm)
Steering Angle +/-37°
Drum Front & Rear: Smooth/Non-Split
Engine
Engine Make Deutz
Engine Model TCD 2.9 L4
Engine Type 4-cylinder
Horsepower 74.2 hp (55.4 kW) @ 2,500 rpm
Fuel Tank Capacity 31.7 gal. (120 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 59.06 in. (1,500 mm)
Drum Diameter 45 in. (1,140 mm)
Nominal Amplitude Front I / II: 0.025 / 0.014 in. (0.63 / 0.35 mm)
Vibration Frequency Front I / II: 2,880 / 3,480 vpm (48 / 58 Hz)
Centrigual Force Range Front I / II: 17,325 / 14,175 lbs. (77 / 63 kN)
Travel Speed - Forward 0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity 185 gal. (700 l)
Application Asphalt
Static Linear Drum Load 138.6 lbs./in. (24.7 kg/cm) front
133.1 lbs./in. (23.8 kg/cm) rear
Weights
Operating Weight 16,029 lbs. (7,271 kg) with ROPS
Axle Load 8,175 lbs. (3,708 kg) front
7,854 lbs. (3,563 kg) rear
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage IIIB/EPA Tier 4
  • Total Length: 176.4”
  • Width: 63.8”
  • Total Height: 113.8”
  • Drum Width: 59.1” (front and rear)
  • Height, loading, min: 81.9”
  • 12 V outlet
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Spray system with spray bars front and rear
  • Track offset, hydraulic
  • Vibration-insulated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Tiltable dashboard
  • Dashboard with displays, indicator lights and switches
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Heating
  • Rotating beacon
  • Working light
  • Back-up alarm
  • Track offset display
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • Edge pressing and cutting equipment
  • Protective roof
  • Additional drive lever, left
  • Steering column with comfort exit and tiltable dashboard
