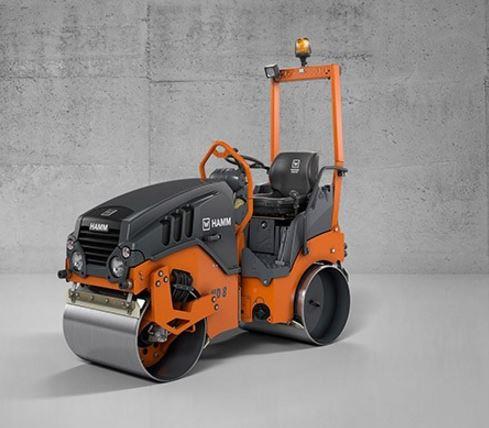

New Hamm HD 8 VV Compactor for Sale Articulated tandem roller with 2 vibratory drums
Three-point articulation Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort. Equipment
|
| Dimensions | |
|---|---|
| Length | 90.4 in. (2,295 mm) |
| Width | 34.6 in. (880 mm) |
| Height | 87 in. (2,210 mm) |
| Weight | 3,506 lb. ROPS 3,726 lb. Max |
| Wheelbase | 61.4 in. (1,560 mm) |
| Inside Turning Radius | 87.8 in. (2,230 mm) |
| Steering Angle | +/-8° |
| Drum | Front & Rear: Smooth/Non-Split |
| Engine | |
|---|---|
| Engine Model | D1105-E4B |
| Engine Type | 3-cylinder |
| Horsepower | 22.2 HP |
| Fuel Tank Capacity | 8.7 gal. (33 l) |
| Drivetrain | |
|---|---|
| Drive | Hydrostatic |
| Operational | |
|---|---|
| Drum Width | 31.5 in. (800 mm) |
| Drum Diameter | 24.4 in. (620 mm) |
| Nominal Amplitude | Front I / II: 0.020 (0.50 mm) |
| Vibration Frequency | Front I / II: 3,660 / 2,880 vpm Rear I / II: 3,660 / 2,880 vpm |
| Centrigual Force Range | Front I / II: 3,825 / 2,475 lbs. Rear I / II: 3,825 / 2,475 lbs. |
| Travel Speed - Forward | 0 - 6.8 mph (0 - 11 km/h) |
| Water Tank Capacity | 18.5 gal. (70 l) |
| Application | Asphalt |
| Static Linear Drum Load | 53.8 lbs./in.(9.6 kg/cm) front 57.7 lbs./in. (10.2 kg/cm) rear |
| Weights | |
|---|---|
| Operating Weight | 3,506 lb. ROPS 3,726 lb. Max |
| Axle Load | 1,686 lbs. (765 kg) front 7,797 lbs. (815 kg) rear |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Hamm |
| MODEL | HD 8 VV |
