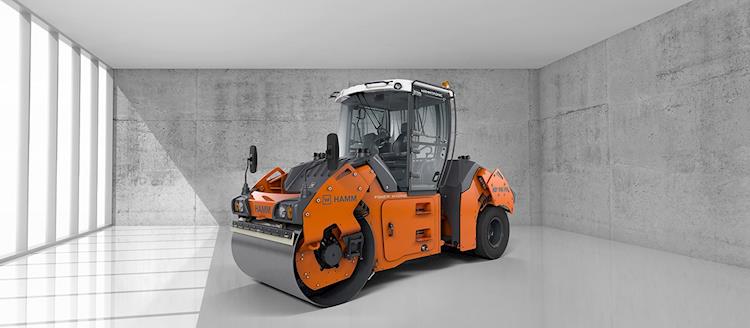

New Hamm HD+ 90i PH VT Compactor for Sale

Articulated combi roller with vibratory drum

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps, spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Hydrostatic all-wheel drive for excellent hill climbing ability
  • Crab steering to increase working width
Dimensions
Length 189”
Width 70.9”
Height 118.5”
Weight Max: 24,872 lbs.
W/ROPS: 18,853 lbs.
W/Cab: 19,228 lbs.
Wheelbase 141.7”
Ground Clearance 31.5”
Turning Radius 232.3”
Drum Front: Smooth/Non-Split
Engine
Engine Make Deutz
Engine Model TCD 2.9 L4
Cylinders 4
Horsepower 74.2 HP
Fuel Tank Capacity 45.7 Gallons
Emission Standards EU Stage IIIB/EPA Tier 4
Rated Power 2300 RPM
Drivetrain
Steering Articulated steering
Speeds Working gear: 0.0-3.7 mph
Transportation gear: 0.0-7.5 mph
Drive Regulation Hammtronic
Operational
Drum Width 66.1”
Drum Diameter 47.2”
Drum Shell Thickness 0.7”
Nominal Amplitude Amplitude, front, I/II: 0.24”/0.13”
Vibration Frequency Vibration frequency, front, I/II: 2,520 vpm/3,000 vpm
Centrigual Force Range Centrifugal force, front, I/II: 16,875 lbs./13,500 lbs.
Water Tank Capacity 220.3 gallons
Static Linear Drum Load 155.7 lbs/in
Oscillation Angle 10
Sprinkler System Pressure
Drum Type smooth/nondivided
  • Description: Tandem roller with vibrating roller drum and set of tires
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 189”
  • Width: 70.9”
  • Total Height: 118.5”
  • Drum Width: 66.1”
  • Height, loading, min: 87.6”
  • 12 V outlet
  • Additional hydraulic performance support up to 20 kW
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Spray system with spray bars front and rear
  • Track offset, hydraulic
  • Vibration-isolated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Electrically powered cooling fan
  • Operating concept Easy Drive
  • Dashboard with displays, indicator lights and function key
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Heating and air conditioning
  • Working light
  • Telematics interface
  • Back-up alarm
  • Track offset display
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • Compaction meter HCQ
  • Edge pressing and cutting equipment
  • Dashboard cover, lockable
  • HCQ navigator
  • Tachograph
