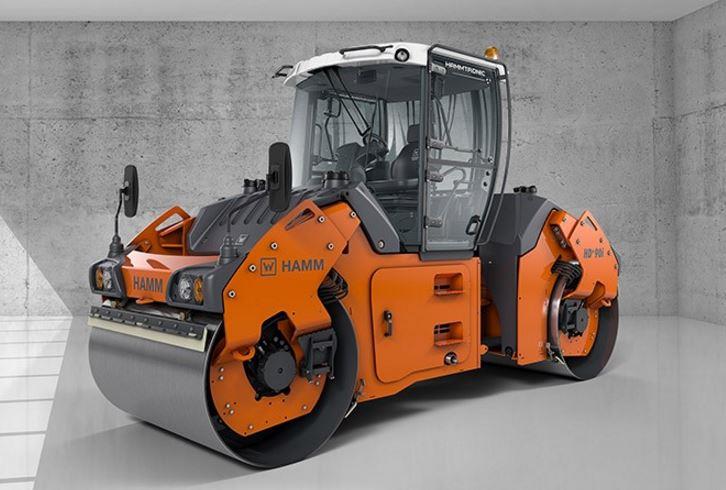

New Hamm HD+ 90i VV Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 189 in. (4,800 mm)
Width 70.9 in. (1,800 mm)
Height 117.3 in. (2,980 mm)
Weight 20,330.1lbs
Wheelbase 141.7 in. (3,600 mm)
Inside Turning Radius 232.3 in. (5,900 mm)
Steering Angle +/-30°
Drum Front & Rear: Smooth/Split
Engine
Engine Make Deutz
Engine Model TCD 3.6 L4
Engine Type 4-cylinder
Horsepower 113.9 hp (85 kW) @ 2,300 rpm
Fuel Tank Capacity 45.7 gal. (173 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 66.14 in. (1,680 mm)
Drum Diameter 47.2 in. (1,200 mm)
Nominal Amplitude Front I / II: 0.024 / 0.013 in. (0.62 / 0.34 mm)
Vibration Frequency Front I / II: 2,520 / 3,000 vpm (42 / 50 Hz)
Centrigual Force Range Front I / II: 16,875 / 13,500 lbs. (75 / 60 kN)
Travel Speed - Forward 0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity 220 gal. (834 l)
Application Asphalt
Static Linear Drum Load 154.6 lbs./in. (27.6 kg/cm) front
150.3 lbs./in. (26.8 kg/cm) rear
Weights
Operating Weight 20,152 lbs. (9,141 kg) with ROPS
Axle Load 10,217 lbs. (4,634 kg) front
9,935 lbs. (4,507 kg) rear
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage IV/EPA Tier 4
  • Total Length: 192.9”
  • Width: 70.9”
  • Total Height: 117.3”
  • Drum Width: 66.1” (front and rear)
  • Height, loading, min: 84.6”
  • 12 V outlet
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Track offset, hydraulic
  • Spray system with spray bars front and rear
  • Vibration-isolated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Operating concept Easy Drive
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Heating
  • Coming home lighting
  • Rotating beacon
  • Working light
  • Back-up alarm
  • Track offset display
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • Edge pressing and cutting equipment
  • Protective roof
  • HCQ navigator
  • Steering column with comfort exit and tiltable dashboard
  • Multifunction armrest, right, foldable
