Hamm HP 180i

New Hamm Compactor for Sale

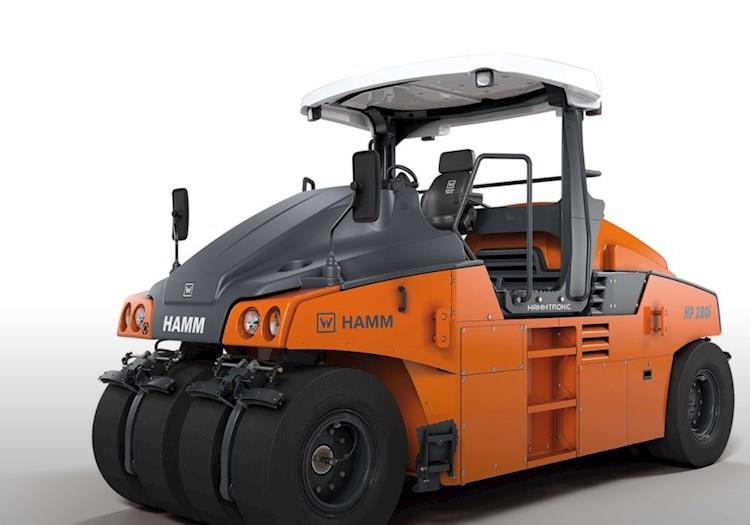

New Hamm HP 180i Static Roller for Sale

Pneumatic tire roller

The HP series pneumatic tire rollers offer impressive performance in earthwork and asphalt construction across the entire line. Drivers experience a spacious and comfortable driver's platform, available as a panoramic cab or open version. An asymmetrical frame and the clever machine design also produce excellent visibility.

  • Simple, intuitive and language-neutral control

  • Excellent view of tires, machine and construction site

  • High compaction and surface quality due to even weight distribution and tire overlap of the front and rear wheel pairs

  • Intelligent ballasting concept for flexible adjustment of the machine weight to the application

  • Seat-operating unit can be moved and rotated
Dimensions
Length 175.2”
Width 85.3”
Height 118.1” (w/cab)
117.6” (w/ROPS)
91.3” (Loading)
Weight 18,776 lbs. (w/cab)
37,882 lbs. (max)
18,224 lbs. (w/ROPS)
16,085 lbs. (no cab wo/ROPS)
Wheelbase 153.5”
Ground Clearance 11.8”
Turning Radius 244.1”
Width over Tires 72”
Tire Size 11.00-R20
Engine
Engine Model TCD 3.6 L4
Cylinders 4
Horsepower 75.3 HP
Fuel Tank Capacity 62.1 gpm
Emission Standards EU Stage V/EPA Tier 4
Drivetrain
Tires 4 (rear and front)
Steering Two-point steering
Speeds Hammtronic
0,0-9,3 (infinitely variable)
Climbing ability 35% (wo/ballast)
25% (w/ballast)
Operational
Working Width 82”
Water Tank Capacity 171.7 gpm
Oscillation Angle 2°
Sprinkler System Pressure
Weights
Weight on Tires 4,342 lbs. (Max Rear)
2,489 lbs. (Min Rear)
4,763 lbs. (Max Front)
2,205 lbs. (Min Front
  • Description: Pneumatic tire roller
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 195.7”
  • Width: 85.3”
  • Total Height: 118.1”
  • Width over Tires: 72” (front and rear)
  • Height, loading, min: 91.3”
  • 12 V outlets (double)
  • Lighting package as per road traffic regulations
  • Central water drain
  • Water tank at front
  • Water filtering (triple)
  • Spray system with spray bars front and rear
  • Maintenance platform
  • Leveling of front wheelset
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Operating concept Easy Drive
  • Tiltable dashboard
  • Dashboard with displays, indicator lights and function key
  • 2 large working and rear view mirrors
  • Machine with 10 tons operating weight and additional water tank
  • Tool kit
  • Battery isolating switch
  • Coming home lighting
  • Rotating beacon
  • Working light
  • Telematics interface
  • HAMM Temperature Meter (HTM)
  • Edge pressing and cutting equipment
  • Protective roof
  • Dashboard cover
  • HCQ navigator
  • Tachograph
  • Seat operating unit, sideways adjustable and rotatable
  • Heating and air conditioning
  • ROPS cabin with split doors
  • Brush scraper, collapsible
