Hamm HP 280i

New Hamm Static Roller for Sale

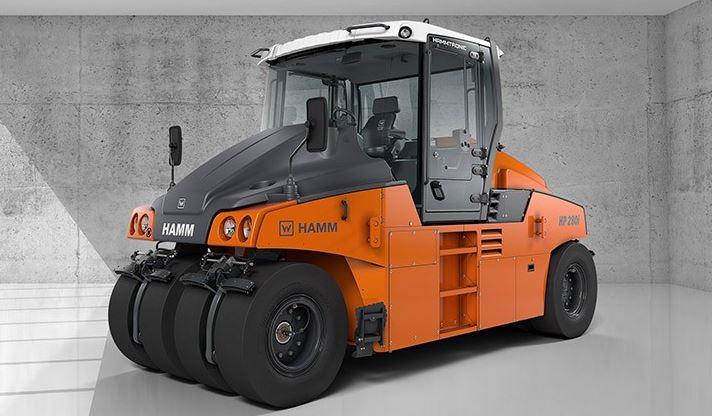

New Hamm HP 280i Static Roller for Sale

Pneumatic tire roller

  • Simple, intuitive and language-neutral control
  • Excellent view of tires, machine and construction site
  • High compaction and surface quality due to even weight distribution and tire overlap of the front and rear wheel pairs
  • Intelligent ballasting concept for flexible adjustment of the machine weight to the application
  • Seat-operating unit can be moved and rotated
Dimensions
Length 195.7”
118.1” (w/cab)
117.6 (w/ROPS)
91.3” (loading)
Width 85.3”
Height 118.1” (Total)
91.3” (Loading)
Weight 20,947 lbs. (w/cab)
20,440 lbs. (w/ROPS)
18,191 lbs. (no cab, wo/ROPS)
Wheelbase 153.5”
Ground Clearance 11.8”
Inside Turning Radius 244.1”
Width over Tires 72.0”/72.0” (front/rear)
Tire Size 11.00-R20/11.00-R20
Engine
Engine Make Deutz
Engine Model TCD 3.6 L4
Cylinders 4
Horsepower 113.9 HP
Emission Standards EU Stage IV/EPA Tier 4
Drivetrain
Tires Number (front/rear): 4/4
Steering Two-point steering
Climbing ability 25%/35% (with/no ballast)
Drive Regulation Hammtronic
Operational
Working Width 82.0”
Travel Speed - Forward 0-11.8 MPH
Tank Capacity 62.1 Gallons
Water Tank Capacity 171.7 Gallons
Sprinkler System Pressure
Weights
Operating Weight 59,447 lbs.
  • Description: Pneumatic tire roller
  • Exhaust emissions Category: EU Stage IV/EPA Tier 4
  • Total Length: 195.7”
  • Width: 85.3”
  • Total Height: 118.1”
  • Width over Tires: 72” (front and rear)
  • Height, loading, min: 91.3”
  • 12 V outlets (double)
  • Lighting package as per road traffic regulations
  • Central water drain
  • Water tank at front
  • Water filtering (triple)
  • Spray system with spray bars front and rear
  • Maintenance platform
  • Leveling of front wheelset
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Operating concept Easy Drive
  • Tiltable dashboard
  • Dashboard with displays, indicator lights and function key
  • 2 large working and rear view mirrors
  • Rear and front axle brake
  • Tool kit
  • Guard bracket for water tank
  • Lamp protection
  • Step water tank
  • Water tank cover, lockable
  • Coming home lighting
  • Longitudinal seat adjustment
  • Guard rail on maintenance platform
  • Tire lighting, LED
  • Rotating beacon
  • Telematics interface
  • Back-up alarm
  • Camera system
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • Additive sprinkling system
  • Ballast chamber under the operator’s platform in rear
  • Spare tire
  • Edge pressing and cutting equipment
  • Protective roof
  • Dashboard cover
  • HCQ navigator
  • Safety belt monitoring device
  • Version with ASC (anti-slip control)
  • Seat operating unit, sideways adjustable and rotatable
  • Heating and air conditioning
  • ROPS cabin with non-split doors

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HP 280i

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HP 280i

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HP 280i Static Roller for Sale

Pneumatic tire roller

  • Simple, intuitive and language-neutral control
  • Excellent view of tires, machine and construction site
  • High compaction and surface quality due to even weight distribution and tire overlap of the front and rear wheel pairs
  • Intelligent ballasting concept for flexible adjustment of the machine weight to the application
  • Seat-operating unit can be moved and rotated
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HP 280i
Condition
NEW
Dimensions
Length
195.7” 118.1” (w/cab) 117.6 (w/ROPS) 91.3” (loading)
Width
85.3”
Height
118.1” (Total) 91.3” (Loading)
Weight
20,947 lbs. (w/cab) 20,440 lbs. (w/ROPS) 18,191 lbs. (no cab, wo/ROPS)
Wheelbase
153.5”
Ground Clearance
11.8”
Inside Turning Radius
244.1”
Width over Tires
72.0”/72.0” (front/rear)
Tire Size
11.00-R20/11.00-R20
Engine
Engine Make
Deutz
Engine Model
TCD 3.6 L4
Cylinders
4
Horsepower
113.9 HP
Emission Standards
EU Stage IV/EPA Tier 4
Drivetrain
Tires
Number (front/rear): 4/4
Steering
Two-point steering
Climbing ability
25%/35% (with/no ballast)
Drive Regulation
Hammtronic
Operational
Working Width
82.0”
Travel Speed - Forward
0-11.8 MPH
Tank Capacity
62.1 Gallons
Water Tank Capacity
171.7 Gallons
Sprinkler System
Pressure
Weights
Operating Weight
59,447 lbs.
