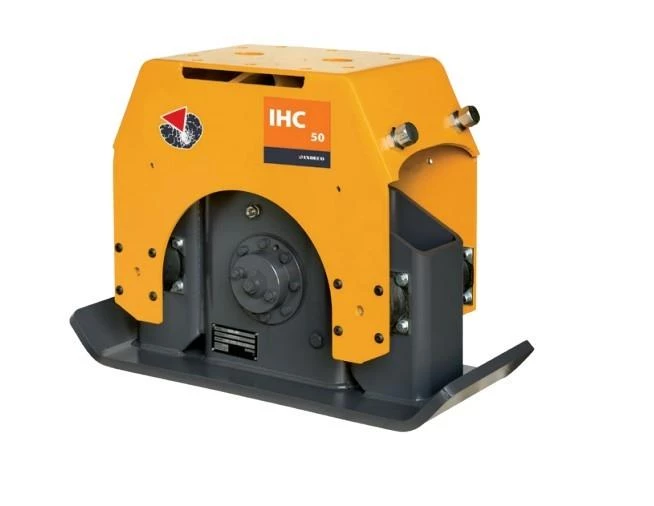

New Indeco IHC for Hydraulic Compactors for Sale

Better compaction through better design.

Whether you call them shakers, plate compactors, hoe pacs or tampers, Indeco’s hydraulically driven, boom-mounted compactors offer five models with centrifugal forces from 2,418 – 33,354 lbs to help you get the job done fast. Designed specifically for compaction in pipe trenches, foundations, and other confined areas, Indeco compactors are tailored to fit a wide range of carriers from 3,800 – 100,000 lbs. and feature oil-bath lubrication of eccentric bearings to ensure long-term protection against wear.

Indeco IHC compactors combine high compaction with fast turnaround times. They are a very efficient replacement both for traditional risky and tiring manual equipment and for self-propelled rollers, which are at great risk of rollover during slope applications.

Compaction is achieved by applying both the dynamic force of a hydraulically-driven vibration system and the static weight of the carrier boom to the thick steel baseplate of the compactor.

Of course, the dynamic forces have to be powerful enough to vibrate the steel baseplate. To enable this to happen, Indeco compactors (mounted straight onto the carrier boom) are hydraulically driven with an oil-bath bearing system, which gives a balanced design of compaction force and vibration speed, so as to achieve the depth penetration needed to reduce air voids and move more material faster.

Indeco’s fixed IHC hydraulic compactors offer superior efficiency and versatility compared with other products on the market. Being fitted with the same mounting bracket as other Indeco hydraulic equipment makes it easy to switch from one tool to another at the jobsite.

Using just the carrier’s hydraulic circuit, they are ideal for compacting backfill for trenches, as well as embankments or other steep slope applications, around foundations or close to other obstacles.

IHC compactors are also perfect for working on grainy, cohesive and semi-cohesive soils with optional adapters on the vibratory plate turning them into highly efficient, pile-driving tools. Indeco’s rotating compaction plate, the IHC R, makes it much easier to position the excavator at the right angle to the working surface, especially for jobs in narrow pipe trenches and confined areas, where the compaction plate needs to reach into difficult corners or skirt round manholes and other obstacles Robust, versatile and highly productive, IHC compactors have a number of special features created by the technology researchers at Indeco.

Applications

Our hydraulically driven eccentric weight systems are designed to provide the optimum ratio of force and speed for your required depth penetration, reducing air voids and moving more material faster.

1. System with roller bearings and oil-bath lubrication.

2. Rubber shock-absorption system.

3. Thick chassis and baseplates made from special steel alloys.

4. Hydraulic system.

5. Innovative design.

6. Pressure- and flow-control valve.

7. Intelligent hydraulic connections.

8. Hydraulic motor with special seals.

9. Full 360° hydraulic rotation, with protection valve.

Models

• IHC 50
• IHC R 50
• IHC 70
• IHC R 70
• IHC 75
• IHC R 75
• IHC 150
• IHC R 150
• IHC 250
• IHC R 250
