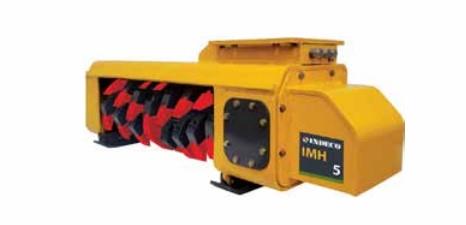

New Indeco IMH for Compact Excavators Mulching Head for Sale The simplicity of design, the strength of build, and powerful performance. INDECO’S new IMH series of hydraulically-driven, boom-mounted mulching heads are specifically designed for a broad range of land clearing, site preparation, invasive vegetation species management, storm damage removal, and clean-up applications. Tailored to fit a wide range of carriers from 3.5 to 45 tons, the IMH series is available in eight direct-drive and belt-driven high-performance models and features HARDOX components and bodies for optimal service life and lasting reliability. Achieving greater productivity and cost-efficiency than a dedicated crew of workers with chainsaws and chippers, IMH Mulching Heads fully leverage your existing equipment investments by utilizing the excavator, back-hoe or skidsteer auxiliary hydraulics to turn your existing machine into a powerful land-clearing tool. With a low initial cost, single man/machine operation for reduced processing costs and ease of use, the IMH series requires no additional specialized machinery and can be used on multiple machines to deliver a superior return on investment for your mulching applications. In addition to superior productivity gains, mulching with the lndeco IMH series is also a more environmentally friendly process than conventional burning by putting back unwanted vegetation into the ecosystem as mulch. This protects newly cleared areas from wind and rain erosion while providing the soil with beneficial microorganisms.
Applications:
Application Areas
Models
|
Body | |
---|---|
Type of Carrier | IMH 3/IMH 4/IMH 5/IMH 6/IMH 8/IMH 10/IMH 14: Compact Excavator, Backhoe Loader & Wheeled Excavator |
Mounting Bracket Compatibility | IMH 3: HP 550 IMH 5/IMH 6/IMH 8/IMH 10: HP 1250 IMH 14: HP 1500 |
Dimensions | |
---|---|
Operating Weight | IMH 3: 650 lbs. (includes mounting bracket compatible w/Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.) IMH 4: 850 lbs. (includes mounting bracket compatible w/Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.) IMH 5: 1180 lbs. (includes mounting bracket compatible w/Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.) IMH 6: 1220 lbs. (includes mounting bracket compatible w/Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.) IMH 8: 1310 lbs. (includes mounting bracket compatible w/Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.) IMH 10: 1620 lbs. (includes mounting bracket compatible w/Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.) IMH 14: 2,310 lbs. (includes mounting bracket compatible w/Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.) |
Cutting Width | IMH 3/IMH 4: 24” IMH 5/IMH 6/IMH 8: 30” IMH 10: 36” IMH 14: 40” |
Excavator Weight | IMH 3: 6,600-13,200 lbs. IMH 4: 11,000-22,000 lbs. IMH 5: 11,000-22,000 lbs. IMH 6: 13,200-26,400 lbs. IMH 8: 17,600-33,000 lbs. IMH 10: 22,000-39,600 lbs. IMH 14: 30,800-52,800 lbs. |
Compatible with | IMH 5: 5-10 (suggested uses on machines w/an overall weight in tons) IMH 6: 6-12 (suggested uses on machines w/an overall weight in tons) IMH 8: 8-15 (suggested uses on machines w/an overall weight in tons) IMH 10: 10-16 (suggested uses on machines w/an overall weight in tons) |
Engine | |
---|---|
Transmission | IMH 3/IMH 4/IMH 5/IMH 6/IMH 8/IMH 10/IMH 14: Direct |
Motor Specification | IMH 3/IMH 4/IMH 5/IMH 6: Gears IMH 8/IMH 10/IMH 14: Pistons |
Working Pressure | IMH 3/IMH 4: 2500 ÷ 3000 PSI IMH 5/IMH 6/IMH 8: 3000 ÷ 4000 PSI IMH 10/IMH 14: 3500 ÷ 5000 PSI |
GPM Range | IMH 3/IMH 5: 12 ÷ 18 gpm IMH 4: 17 ÷ 24 gpm IMH 6: 16 ÷ 24 gpm IMH 8/IMH 10: 18 ÷ 27 gpm IMH 14: 25 ÷ 38 GPM |
Optimal Oil Supply | IMH 3: 13 GPM IMH 4: 20 gpm IMH 5: 17 GPM IMH 6: 23 GPM IMH 8/IMH 10: 24 GPM IMH 14: 30 GPM |
Operational | |
---|---|
Number of Tools/Teeth | IMH 3/IMH 4: 12 teeth IMH 5/IMH 6/IMH 8: 22 teeth IMH 10: 39 teeth IMH 14: 38 teeth |
Drum Diameter | IMH 3/IMH 4/IMH 5/IMH 6/IMH 8/IMH 10/IMH 14: 8” |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Indeco |
MODEL | IMH for Compact Excavators |
