JLG 2733 High Capacity Model

New JLG Telehandler for Sale

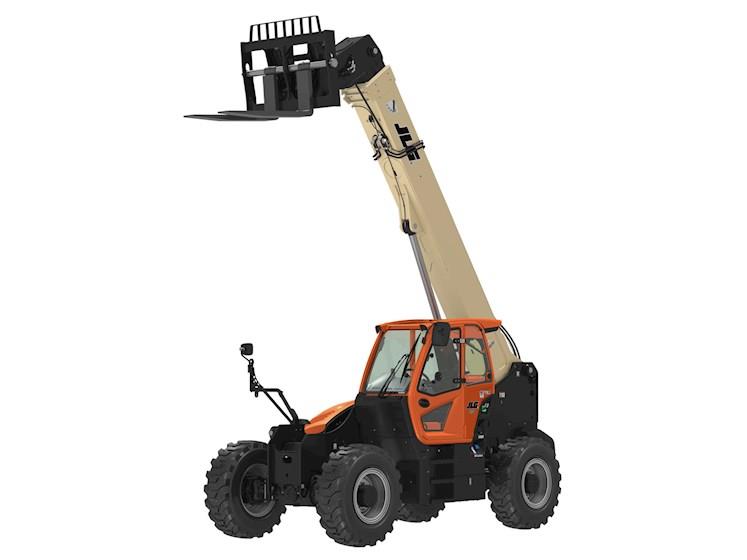

New JLG 2733 High Capacity Model Telehandler for Sale

Although JLG doesn't sell traditional forklifts, telehandlers are known to some as telescopic forklifts because of their extended boom and attachments. They can also complete similar jobs to a forklift, but they bring more power, reach and versatility to the job site.

Comfort. Confidence. Serviceability. We wouldn't expect you to settle for anything less with JLG® telehandlers. The best-in-class cabs feature enhanced visibility, while a wide range of attachments allows for more versatility on the job site. Tier 4 Final engines are fuel-efficient with less environmental impact. And engine parts and other serviceable components are more easily accessible, so you can spend more time on the job and less time on routine maintenance. Take a virtual tour of JLG® telehandlers.

JLG® high capacity telehandlers allow operators to accomplish multiple tasks with the perfect blend of strength, versatility and smart technology. Their higher lift capacity and enhanced versatility cut down on the time it takes to complete the work, saving time, money and labor on the job site. Learn more about the flexibility high capacity telehandlers bring to your fleet.



  • Ultra-strong boom for lifting higher and farther with more confidence
  • Models with various capacities and heights allow you to choose the telehandler that best suits the needs of your job site and application
Dimensions
Length 20’9”
Width 8’2”
Height 10’
Weight 38,775 lbs.
Wheelbase 11’10”
Ground Clearance 1’5”
Turning Radius 14’8”
Frame Leveling 8 degrees
Engine
Engine Make Cummins
Engine Model QSB4.5L Tier 4F
Horsepower 160 HP
Fuel Tank Capacity 43 Gallons
Rated RPM 2200 RPM
Maximum Lower Speed 11 seconds
Maximum Telescope Speed In: 14 sec
Out: 12 sec
Drivetrain
Transmission Type Hydrostatic
Front Axle High Bias, Limited Slip
Rear Axle Planetary
Hydraulic
Pump Load Sensing Piston
Operational
Brakes Wet Multi-Disc
Tires 17.5-25 Air CAMSO L2
Outriggers No
Lift Capacity 26,600 lbs.
Full Height: 15,500 lbs.
Max Reach: 8,000 lbs.
Lift Speed 16 sec.
Travel Speed-High 17 mph
Max. Reach 17’7”
Drawbar Pull 28,500 lbs.
  • Greater Capacity – 26,600-lb capacity to tackle heavy pick-and-carry applications
  • Lower Project Costs – Delay or eliminate the need for wheel loaders in certain applications where greater lift height and forward reach is required
  • Best-in-Class Cab – Superior cab comfort with excellent visibility, intuitive single joystick control and wrap-around dash
  • Added Versatility – Wide range of specialized attachments for construction, wind, oil and gas, mining and more
  • Advanced Technology – A right-side electronic mirror, Load Stability Indication (LSI) and optional SmartLoad technology enable operators to work with greater confidence
  • Air Conditioning
  • Air Shut Off Valve
  • Air Suspension Seat
  • Arctic Package
  • Brick Guards
  • Fenders
  • Hydraulic Coupler
  • Multi-Function Display & Reversing Camera
  • Reverse Sensing
  • Ride Control & Boom Float
  • Right Side Electronic Mirror
  • Road Lights
  • Roof Wiper
  • SmartLoad Technology
  • White Noise Back Up Alarm
  • Work Lights
