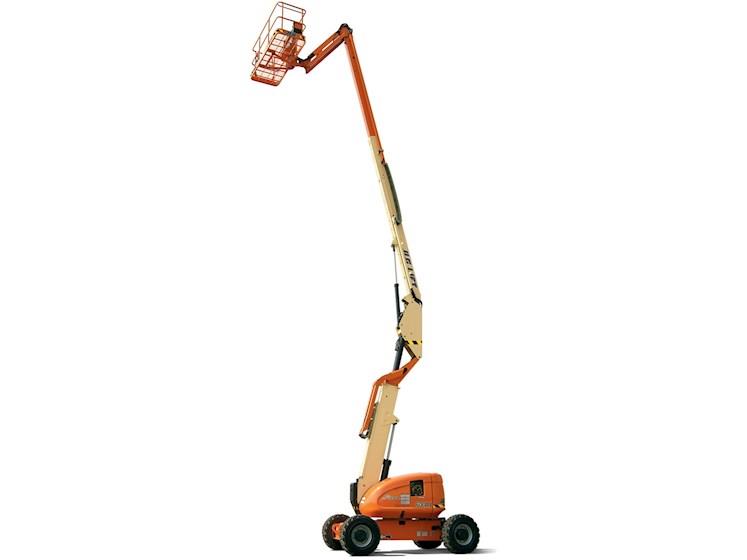

New JLG 600AJ HC3 Articulating Boom Lift for Sale Looking for a cherry picker? Then you're in need of a piece of equipment with a hydraulic boom and a platform at the end to raise and lower people. Our engine powered boom lifts, known to some as cherry pickers, give you the reach and power necessary for the best outdoor performance. Boom lift specifications vary widely, so it's important to understand the needs of a particular job before specing out your equipment. Both articulating boom lifts and telescopic boom lifts can tackle tough jobs. A telescopic boom lets you reach farther with more capacity, putting you right where you need to be as simply and efficiently as possible. But, if the job requires you to get up and over objects, you need an articulating boom lift. On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. The larger work envelope on an articulating lift provides you with access to those hard-to-reach places. The 600 Series features a narrow chassis option for access to confined areas and the industry’s best work envelope. A standard oscillating axle and optional four-wheel drive give you outstanding drive performance on rough terrain. Jib-equipped models add 70 degrees of upward and 60 degrees of downward motion to get you into those hard-to-reach places. Plus, our Hi-Capacity model allows you to push the envelope without compromise, offering three capacity zones, each rated for three occupants and tools. |
Dimensions | |
---|---|
Length | 30’ |
Width | 8’2” |
Height | 8’6” |
Weight | 26,057 lbs. |
Ground Clearance | 1’ |
Turning Radius | Outside (2WS): 16’11” |
Axle Oscillation | 8” |
Platform Capacity | Unrestricted: 660 lbs. Restricted 2: 750 lbs. Restricted: 1000 lbs. |
Up and Over Height | 26'7" |
Engine/Drivetrain | |
---|---|
Engine Make | Deutz |
Engine Model | D2.9 L4 Tier 4 Final |
Horsepower | 49 HP |
Fuel Tank Capacity | 30 Gallons |
Ground Pressure | 96 PSI |
Drive Speed | 4.3 mph (2WD & 4WD) |
Hydraulic | |
---|---|
Hydraulic Capacity | 30.6 Gallons |
Auxiliary Power | 12 Volts DC |
Operational | |
---|---|
Tail Swing | 0” |
Jib Rotation | 0 degrees |
Performance | |
---|---|
Jib | 130 Degrees |
Tires | IN355/55D-6.25 Low Profile Foam Filled |
Gradeability | 30% (2WD) 45% (4WD) |
Platform Height | 60’ |
Platform Size | Dimension A: 3’ Dimension B: 8’ |
Swing | 360 Degrees |
Swing Type | Continuous |
Outreach | 40’7” (Horizontal) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | JLG |
MODEL | 600AJ HC3 |
