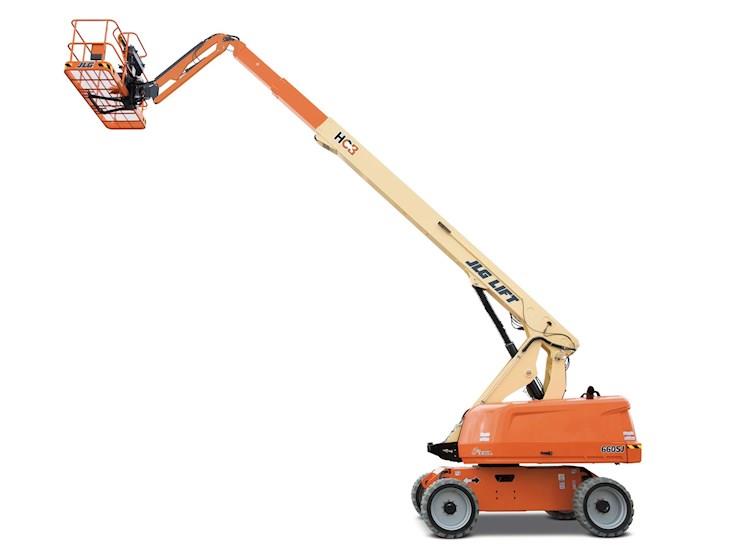

New JLG 660SJ HC3 Telescopic Boom Lift for Sale Looking for a cherry picker? Then you're in need of a piece of equipment with a hydraulic boom and a platform at the end to raise and lower people. Our engine powered boom lifts, known to some as cherry pickers, give you the reach and power necessary for the best outdoor performance. Boom lift specifications vary widely, so it's important to understand the needs of a particular job before specing out your equipment. Both articulating boom lifts and telescopic boom lifts can tackle tough jobs. A telescopic boom lets you reach farther with more capacity, putting you right where you need to be as simply and efficiently as possible. But, if the job requires you to get up and over objects, you need an articulating boom lift. When you need to work around different angles on crowded job sites, it's important to have the right piece of equipment to get you straight to the source. JLG® engine powered telescopic boom lifts are ideal for work that requires extended horizontal and vertical outreach. Our telescopic lifts take you right where you need to work, and they’re available in a range of sizes to provide the best height and capacity for your job. A telescopic boom lift has a mast that extends in a straight line by using one or more telescoping boom sections. This design gives you the vertical reach you need to access overhead jobs, while also providing outstanding horizontal reach. Telescopic boom lifts can require more space to operate compared to articulating models, though they often reach higher and allow you to access work from a distance. This is especially helpful on job sites where difficult terrain or immovable obstacles prevent close-up access to structures. 600 Series telescopic boom lifts have a powerful combination of performance and reliability so you can conquer all your worksite challenges. Lift heavier loads with increased platform capacities and improve your access to overhead tasks with enhanced horizontal outreach. Mud, sand and rough terrain are no match for the standard oscillating axle and 45% grade climbing ability on a 600 Series telescopic boom lift. Plus, our Hi-Capacity telescoping lifts allow you to push the envelope without compromise, offering three capacity zones, each rated for three occupants and tools. |
Dimensions | |
---|---|
Length | 35’5” |
Width | 8’ |
Height | 8’2” |
Weight | 29,281 lbs. |
Ground Clearance | 11” |
Turning Radius | Outside (2WS): 17’7” |
Platform | Dimension A: 3’ Dimension B: 8’ |
Axle Oscillation | 8” |
Platform Capacity | Unrestricted: 660 lbs. Restricted 2: 750 lbs. Restricted: 1000 lbs. |
Engine/Drivetrain | |
---|---|
Engine Make | Diesel: Deutz Dual Fuel: Ford |
Engine Model | Diesel: D2.9L4 Tier 4 Final Dual Fuel: MSG425-DF |
Horsepower | Diesel: 48.8 HP Dual Fuel: 84 HP |
Fuel Tank Capacity | 31 Gallons |
Ground Pressure | 110 PSI |
Drive Speed | 3.8 MPH (4WD) |
Hydraulic | |
---|---|
Hydraulic Capacity | 34 Gallons |
Auxiliary Power | 12 Volts DC |
Operational | |
---|---|
Tail Swing | 4’ |
Performance | |
---|---|
Tires | 355/55D625 Foam Filled Lug Tire |
Gradeability | 45% (4WD) |
Platform Height | 65’8” |
Swing | 360 Degrees |
Outreach | 65’8” (Horizontal) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | JLG |
MODEL | 660SJ HC3 |
