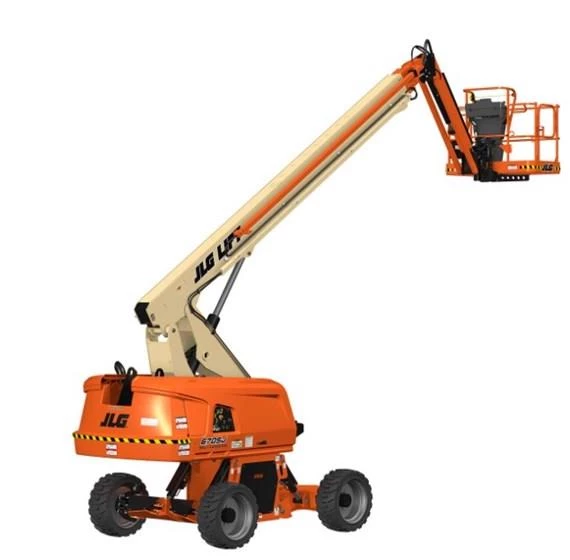

New JLG 670SJ Telescopic Boom Lift for Sale

The 600 Self-Leveling Series boom lift features the industry’s first fully integrated, smart-adapting chassis that automatically adapts to uneven terrain on slopes up to 10 degrees while driving at full height, delivering unmatched stability and full functionality.

With these advanced man lifts, you can reduce or eliminate the prep work required to level the work area. That means no more cribbing or grading the job site. It also cuts down on the trial and error of repositioning and allows you to get closer to the desired work area. Operators will notice a difference, too. Four independent control arms follow the contour of the ground to provide unparalleled platform stability that reduces operator fatigue and enhances job site safety by minimizing the potential risk of objects moving around, or falling from, the platform during travel.

  • Eliminates Prep Work: With self-leveling technology, there’s no need for cribbing or grading the job site
  • Reduces Repositioning: Get into position quicker with the ability to work on slopes up to 10 degrees and drive at height with full functionality
  • Maximizes Your Work Envelope: Instead of using a larger machine to reach over uneven terrain, navigate uneven surfaces to get right to the work area
  • Increases Operator Confidence: With less bouncing around in the platform, operators will feel less fatigued and less distracted by tools shifting while they drive
  • Delivers Onboard Technology: This boom lift is loaded with tech, including a fully integrated, advanced control system, LCD displays and a load-sensing system with a single-sensor, zero-load calibration design

Key Features

  • Get right to work with smartadapting technology to level on slopes up to 10 degrees, while driving at full height.
  • Remove the need for cribbing or grading the job site, trial-and-error positioning or use of larger equipment to reach over uneven terrain.
  • Less bouncing around in the platform helps operators feel less fatigued and less distracted by tools shifting in transit.
  • A fully integrated advanced control system provides real-time data right on the job site.
Dimensions
Length 35’1”
Width 8’2”
Height 9’1”
Weight 25,341 lbs.
Ground Clearance 1’1”
Turning Radius 8’4.4” (Inside)
18’7.6” (Outside)
Platform Capacity 550 lbs. (Unrestricted)
750 lbs. (Restricted)
Platform Rotator 180 Degrees Hydraulic
Engine/Drivetrain
Engine Make Deutz
Engine Model TD2.9L4 DSL
Engine Type Tier 4 Final Diesel
Horsepower 67 HP
Fuel Tank Capacity 31 Gallons
Ground Pressure 851 PSI
Drive Speed 3.8 MPH
Hydraulic
Hydraulic Capacity 34 Gallons
Auxiliary Power 12 Volts DC
Operational
Leveling Capability 10 Degrees (Fore/Aft & Side to Side)
Tail Swing 4’
Jib Rotation 180 Degrees
Performance
Tires Foam-filled
Gradeability 45%
Platform Height 66’10”
Platform Size Dimension A: 3’
Dimension B: 8’
Horizontal Reach 57’1”
Swing 360 Degrees
Swing Type Continuous
Working Height 72’10”
  • 12V-DC Auxiliary Power
  • 110V-AC Receptacle in the Platform
  • All-motion Alarm
  • Control ADE® System
  • Engine Distress Warning/Shutdown - Selectable via JLG Analyzer
  • Gull-Wing Hoods
  • Hourmeter
  • Hydraulic Platform Rotator
  • Integrated Display with Chassis Tilt Indicator
  • Lifting/Tie Down Lugs
  • Platform Console Machine Status
  • Proportional Controls
  • Self Leveling Chassis
  • SkyGuard SkyLine™
  • Swing-Out Engine Tray
  • SkySense™: SkySense is an enhanced detection system from JLG that uses strategically placed object detection sensors to provide operators an added level of awareness of their immediate surroundings as they operate. When a machine is in use, the sensors establish warning zones and stop distances in the machine’s direction of motion, increasing protection of people and property.
    • Available for most JLG Boom and Scissor lifts, only SkySense offers:
      • Warning zones that scale for functions with proportional joystick input, which is unique to JLG and SkySense
      • Substantial coverage areas that are comprised of multiple sensors on the sides and back of the platform, minimizing onsite incidents and damage to surroundings
      • Easily upfits to most JLG boom and scissor models in your fleet
  • SkyPower®: The JLG SkyPower® system delivers the power you need to conveniently operate other JLG accessories. With the SkyPower system on your machine, you get a 7500W generator with a power cable to the platform. Easily add and provide power to other JLG accessories, including SkyWelder® and SkyCutter® packages.
    • Features
      • Self-contained AC power to run hand tools
      • Side-entry platform provides improved entry and allows for later quick installation of the SkyGlazier® panel tray.
      • Integrated power cable allows you to quickly attach or detach a variety of JLG accessories
    • Save Time and Money
      • Eliminate the need to move and reposition the generator, resulting in significant time savings
      • Save fuel by using SkyPower in place of a separate ground-based generator
      • Eliminate the tracking and delivery costs associated with a separate generator
      • Reduce costs associated with power cable damage
  • SkyWelder®: Tucked into the SkyPower® boom platform, the 280-amp Miller® CSTTM 280 welder conserves space and provides stick and TIG capabilities. The SkyWelder® eliminates leads hanging over the rails, and eliminates the unnecessary cost of having a stand-alone welder and power supply. Flux core wire feed capability available (see Miller Electric Manufacturing Co. resources).
    • Features
      • 280-amp welder includes a platform-mounted amperage adjustment and provides power to accommodate stick and TIG welding applications
      • 100% duty cycle at 200-amps provides the versatility to satisfy a variety of applications Secured to the platform at the job site to help reduce theft
      • Supplies power to the welder and the platform, which allows for use of lights, grinders, drills and other small job site tools without repositioning a ground-based system
    • Save Time and Money
      • Eliminate rental and additional delivery charges Reduce fuel costs by eliminating need to fuel a separate generator
      • Save on repairs – Factory routed cables reduce weld cable damage and associated repair/replacement costs
  • Accessories & Options
    • 36 x 72-in (0.91 x 1.83-m) Platform
    • Accessory Packages:
      •  SkyPower®
      •  SkyWelder®
    • Cold Weather Start Kit¹
    • Fall Arrest Platform
    • Flashing Amber Beacon
    • Hostile Environment Kit²
    • Inward Swinging Gate
    • Light Package³
    • Operator Tool Tray
