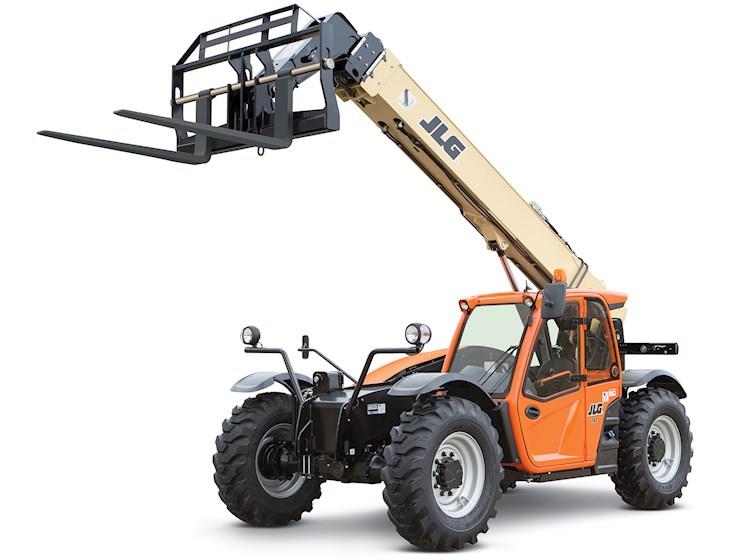

New JLG 742 Telehandler for Sale

Comfort. Confidence. Serviceability. We wouldn't expect you to settle for anything less with JLG® telehandlers. The best-in-class cabs feature enhanced visibility, while a wide range of attachments allows for more versatility on the job site. Tier 4 Final engines are fuel-efficient with less environmental impact. And engine parts and other serviceable components are more easily accessible, so you can spend more time on the job and less time on routine maintenance.
Dimensions
Length 23’1”
Width 8’1”
Height 8’
Weight 21,476 lbs.
Wheelbase 11’3”
Ground Clearance 1’5”
Turning Radius 12’
Frame Leveling 10 Degrees
Engine
Engine Make Cummins
Engine Model QSF 3.8L Tier 4 Final
Cylinders 4
Horsepower 74 HP
Max Travel Speed 18 mph
Fuel Tank Capacity 38 gallons
Steering Steering 4-Wheel:
-Power steering with manual backup.
-Operator selectable 4-wheel circle, 4-wheel crab, 2-wheel front
Rated RPM 2500 rpm
Maximum Lower Speed 9 seconds
Maximum Telescope Speed In: 12 seconds
Out: 11 seconds
Rated Capacity 7,000 lbs.
Drivetrain
Transmission Type Powershift 4-speed forward and 3-speed reverse.
Transmission Nr Forward Gears Standard-4
Nr Reverse Gears-3
Front Axle Trunnion mounted planetary steer axles. Integral steer cylinder. High bias limited slip differential on front axle.
Rear Axle Oscillating; Trunnion mounted planetary steer axles. Integral steer cylinder
Engine/Drivetrain
Displacement 232 cu. in.
Torque 295 lb-ft.
Hydraulic
Pump Load Sensing Piston
Hydraulic Tank Capacity 40 gallons
Hydraulics Piston pump. Auxiliary hydraulics used for all attachments equipped with cylinders or other hydraulic components.
Operational
Brakes Brakes: Service brakes are inboard wet disc brake on front and rear axles. Parking brakes are wet disc spring-applied hydraulic release on front axle.
Tires Standard: 370/75-28, Optional: Foam-Filled or Solid
Outriggers No
Maximum Reach 29’1”
Max Lift Height 42’
Lift Capacity Max: 7000 lbs.
Full Height: 6000 lbs.
Max Reach: 1000 lbs.
Lift Speed Max: 11 seconds
Boom retracted: Up-11.3 seconds, Down-9 seconds
Max. Load @ Max. Reach 1000 lbs.
Max. Load @ Full Height 6,000 lbs.
Drawbar Pull 19,000 lbs.
Load Center 50’
Boom Speed Extended: 11 seconds
Retracted: 11.5 seconds
  • Operator Comfort - Spacious cab, intuitive single joystick and integrated arm rest
  • Operator Confidence - Better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
  • Lower Cost of Ownership - Extended service intervals, easy-to-access parts and durable components for less overall maintenance
  • 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Instruments
    • Volt meter
    • Hourmeter
    • Engine oil pressure gauge
    • Temperature gauge
    • Fuel gauge
    • DEF gauge
  • Attachments
    • Standard Carriage: 50 in., 60 in., 72 in.
    • Side-Tilt Carriage: 50 in., 60 in., 72 in.
    • Swing 90° Carriage: 72 in.
    • Dual Fork Positioning Carriage: 50 in.
    • Side-Shift Carriage: 50 in.
    • Tower: 8 ft
    • Tower with Side Tilt: 8 ft
    • Pallet Forks: 2.36 in. x 4 in. x 48 in.; 2.36 in. x 5 in. x 48 in.; 2.00 in. x 6 in. x 72 in.
    • Lumber Forks: 2.00 in. x 7 in. x 60 in.; 2.36 in. x 6 in. x 60 in.
    • Cubing Forks: 2 in. x 2 in. x 48
    • Fork Extensions: 90 in.
    • Material Bucket: 72 in., 1.0 cu yd; 96 in., 1.5 cu yd; 102 in., 2.0 cu yd
    • Fork-Mounted Bucket: 60 in., 1.0 cu yd ; 2,000 lb Capacity
    • Grapple Bucket: 96 in., 1.75 cu yd
    • Truss Boom: 3 ft (winch), 4,000 lb Capacity
    • Truss Boom: 12 ft, 2,000 lb; 15 ft, 2,000 lb; 12 ft with winch, 2,000 lb
    • Fork Mounted Work Platform: 8 ft, 1,000 lb Capacity
    • Material Handling Arm: 4,000 lb Capacity
    • Trash Hopper: 72 in., 1.9 cu yd
    • Sweeper: 105 in., 53 cu yd ; 1,717 lb Capacity
    • Lifting Hook-Fork Mounted
    • Lifting Hook-Coupler Mounted
  • Enclosed Cab
  • Auxiliary Electrics
  • Road Lights
  • Air Conditioning
  • Work Lights
  • Rotating Beacon
  • Hydraulic Coupler
  • Fenders
  • Brick Guards
  • Arctic Package
  • Multi-Function Display with Reversing Camera
  • Ride Control
  • Reverse Sensing System
  • Boom Brushes
  • Secondary Steering
  • Wiper Package
  • White Noise Backup Alarm
  • 110 hp (83 kW) Tier 4 Final Engine
