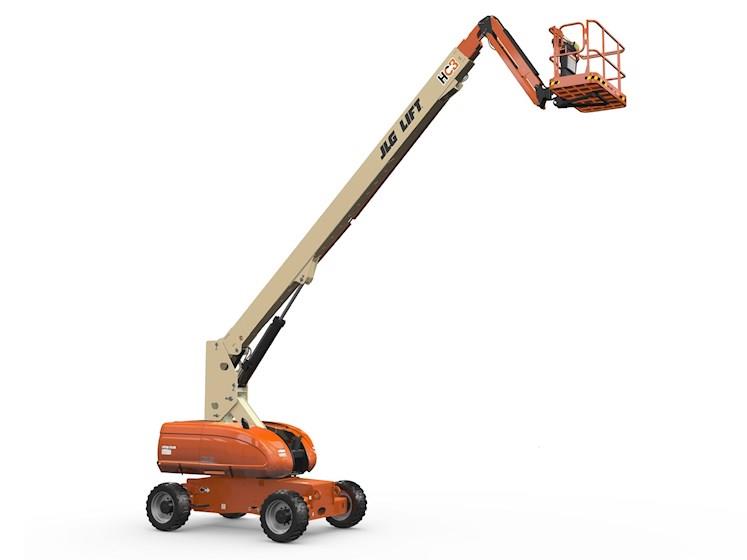

New JLG 860SJ HC3 Telescopic Boom Lift for Sale Looking for a cherry picker? Then you're in need of a piece of equipment with a hydraulic boom and a platform at the end to raise and lower people. Our engine powered boom lifts, known to some as cherry pickers, give you the reach and power necessary for the best outdoor performance. Boom lift specifications vary widely, so it's important to understand the needs of a particular job before specing out your equipment. Both articulating boom lifts and telescopic boom lifts can tackle tough jobs. A telescopic boom lets you reach farther with more capacity, putting you right where you need to be as simply and efficiently as possible. But, if the job requires you to get up and over objects, you need an articulating boom lift. When you need to work around different angles on crowded job sites, it's important to have the right piece of equipment to get you straight to the source. JLG® engine powered telescopic boom lifts are ideal for work that requires extended horizontal and vertical outreach. Our telescopic lifts take you right where you need to work, and they’re available in a range of sizes to provide the best height and capacity for your job. A telescopic boom lift has a mast that extends in a straight line by using one or more telescoping boom sections. This design gives you the vertical reach you need to access overhead jobs, while also providing outstanding horizontal reach. Telescopic boom lifts can require more space to operate compared to articulating models, though they often reach higher and allow you to access work from a distance. This is especially helpful on job sites where difficult terrain or immovable obstacles prevent close-up access to structures. Go from the ground to 80 ft in less than 67 seconds—that’s 40% faster than the competition. 800 Series telescopic boom lifts deliver increased horizontal outreach, more platform capacity and job-proven performance. The narrow, fixed-width chassis on an 800 Series telescopic boom lift gets you in and out of confined spaces, while the available articulating jib gives you the additional access you need. Plus, our Hi-Capacity telescoping lifts allow you to push the envelope without compromise, offering three capacity zones, each rated for up to three occupants and tools. |
Dimensions | |
---|---|
Length | 40’ |
Width | 8’2” |
Height | 10’ |
Weight | 36,888 lbs. |
Ground Clearance | 11” |
Turning Radius | Outside: 19’8” |
Platform | Dimension A: 3’ Dimension B: 8’ |
Axle Oscillation | 8” |
Platform Capacity | Unrestricted: 500 lbs. Restricted 2: 750 lbs. Restricted: 1000 lbs. |
Engine/Drivetrain | |
---|---|
Engine Make | Diesel: Deutz Dual Fuel: Ford |
Engine Model | Diesel: TD 2.9L Tier 4 Final Dual Fuel: MSG425 |
Horsepower | Diesel: 84 HP Dual Fuel: 84 HP |
Fuel Tank Capacity | 31 Gallons |
Ground Pressure | 81 PSI |
Drive Speed | 3.5 MPH (2WD & 4WD) |
Hydraulic | |
---|---|
Hydraulic Capacity | 48 Gallons |
Auxiliary Power | 12 Volts DC |
Operational | |
---|---|
Tail Swing | 4’8” |
Jib Rotation | 0 Degrees |
Performance | |
---|---|
Jib | 130 Degrees |
Tires | 15-625 Foam Filled Lug Tread |
Gradeability | 25% (2WD) 45% (4WD) |
Platform Height | 86’ |
Swing | 360 Degrees |
Swing Type | Continuous |
Outreach | 86’ (Horizontal) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | JLG |
MODEL | 860SJ HC3 |
