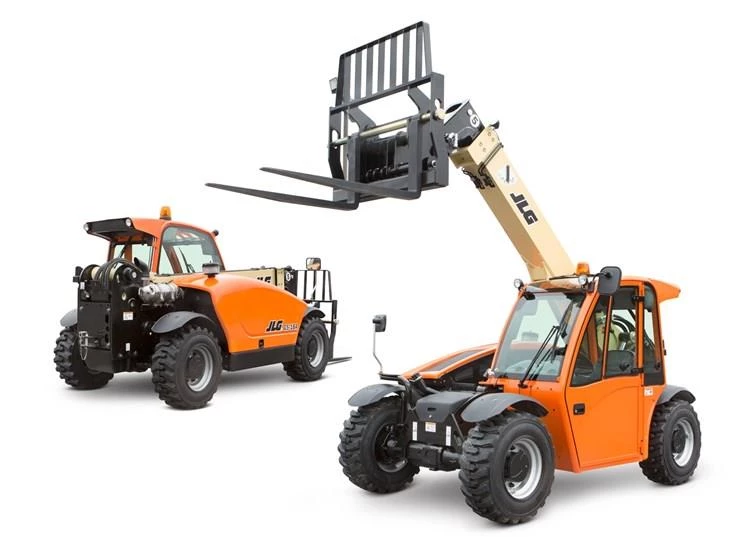

New JLG G5-18A Telehandler for Sale Comfort. Confidence. Serviceability. We wouldn't expect you to settle for anything less with JLG® telehandlers. The best-in-class cabs feature enhanced visibility, while a wide range of attachments allows for more versatility on the job site. Tier 4 Final engines are fuel-efficient with less environmental impact. And engine parts and other serviceable components are more easily accessible, so you can spend more time on the job and less time on routine maintenance. |
| Dimensions | |
|---|---|
| Length | 12’ 12’6” (Forks) |
| Width | 6’ |
| Height | 6’4” |
| Weight | 11,001 lbs. |
| Wheelbase | 7’6” |
| Ground Clearance | 1’ |
| Turning Radius | 10’6” |
| Frame Leveling | 0 Degrees |
| Cab Width | 2’10” (cab) |
| Engine | |
|---|---|
| Engine Make | Deutz |
| Engine Model | TD 2.9 L4 |
| Cylinders | 4 |
| Horsepower | 74 HP |
| Max Travel Speed | 15 mph |
| Fuel Tank Capacity | 24 gallons |
| Steering | Steering 4-Wheel: -Operator selectable 4-wheel circle, 4-wheel crab, 2-wheel front. |
| Rated RPM | 2300 rpm |
| Maximum Lower Speed | 5 seconds |
| Maximum Telescope Speed | In: 4 seconds Out: 7 seconds |
| Towing Capacity | 6614 lbs. |
| Rated Capacity | 5,500 lbs. |
| Drivetrain | |
|---|---|
| Track Width | 4’11” |
| Transmission Type | Hydrostatic |
| Front Axle | High bias limited slip differential on front axle. Planetary on front and rear axles. |
| Rear Axle | Oscillating; High bias limited slip differential on front axle. Planetary on front and rear axles. |
| Engine/Drivetrain | |
|---|---|
| Displacement | 177 cu. in. |
| Torque | 192 lb-ft. |
| Hydraulic | |
|---|---|
| Pump | Gear |
| Std Pump Flow | 19 gal/min |
| System Pressure | 3495 psi (Hydraulics) |
| Hydraulic Tank Capacity | 24 gallons |
| Hydraulics | Single-section gear pump. Auxiliary hydraulics used for all attachments equipped with cylinders or other hydraulic components. |
| Operational | |
|---|---|
| Brakes | Brakes: Service brakes are inboard wet disc brake on front axle. Parking brakes are wet disc spring-applied hydraulic release |
| Tires | Standard: 12 x 16.5 Pneumatic Optional: 12 x 16.5 Foam-Filled, 14 x 17.5 Foam-Filled, 14 x 17.5 Pneumatic, 33 x 12 Solid |
| Outriggers | No |
| Maximum Reach | Reach: 11’ Forward Reach: 10’11” |
| Max Lift Height | 18’4” |
| Lift Capacity | Max: 5512 lbs. Full Height: 4409 lbs. Max Reach: 1764 lbs. |
| Lift Speed | Max: 7 seconds Boom retracted: Up-6.8 seconds, Down-4.6 seconds |
| Max. Load @ Max. Reach | 1850 lbs. |
| Max. Load @ Full Height | 4,400 lbs. |
| Drawbar Pull | 8,902 lbs.; 8,700 lbs. (loaded) |
| Breakout Force | 8093 lbf |
| Load Center | 1’8” |
| Boom Speed | Extended: 6.7 seconds Retracted: 3.8 seconds |
| Maximum Crowd Speed | 3 seconds |
| Maximum Dump Speed | 2 seconds |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | JLG |
| MODEL | G5-18A |
