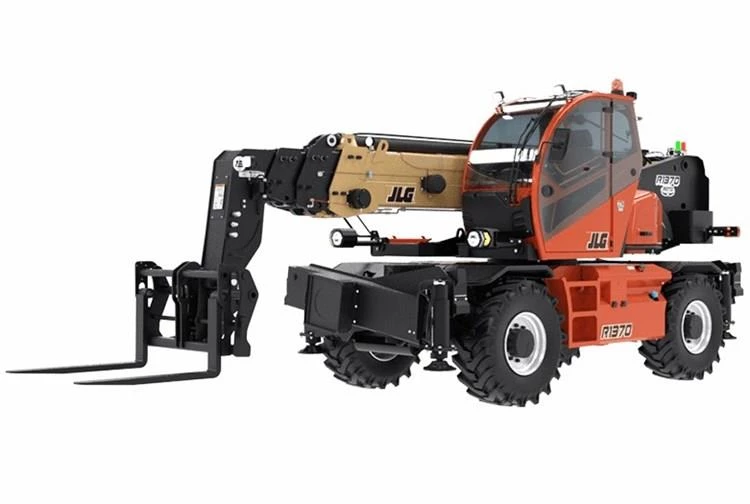

New JLG R1370 Rotating Model Telehandler for Sale Although JLG doesn't sell traditional forklifts, telehandlers are known to some as telescopic forklifts because of their extended boom and attachments. They can also complete similar jobs to a forklift, but they bring more power, reach and versatility to the job site. Ultra-strong boom for lifting higher and farther with more confidence Models with various capacities and heights allow you to choose the telehandler that best suits the needs of your job site and application When choosing a JLG® telehandler, you’ve got a powerful range of options. The robust lineup includes compact, high-capacity and rotating telehandlers, along with a wide variety of attachments for even more versatility on the job site. All JLG® telehandlers offer best-in-class cabs with enhanced visibility and Tier 4 Final engines for fuel efficiency with less environmental impact. Engine parts and other serviceable components are more easily accessible, so you can spend more time on the job and less time on routine maintenance. With JLG telehandlers, you’ll keep productivity high all day long while enjoying lower cost of ownership.
|
| Body | |
|---|---|
| ROPS, FOPS & OPS | Enclosed Cab Certified ROPS/FOPS Structure |
| Dimensions | |
|---|---|
| Length | 23’5” |
| Width | 7’8” |
| Height | 9’9” |
| Weight | 42,410 lbs. |
| Wheelbase | 9’7” |
| Ground Clearance | 1’2” |
| Turning Radius | 14’6” |
| Frame Leveling | ±5.5° |
| Engine | |
|---|---|
| Engine Make | Perkins |
| Engine Model | 904J-E36TA Stage V |
| Cylinders | 4 |
| Horsepower | 134 HP |
| Max Travel Speed | 12.4 MPH |
| Fuel Tank Capacity | 47.5 Gallons |
| Steering | Power steering Operator selectable 4-Wheel Circle, 4-Wheel Crab, 2-Wheel Front |
| Rated RPM | 2200 RPM |
| Maximum Telescope Speed | 17.4 seconds (Telescope In) 31.2 seconds (Telescope Out) |
| Rated Capacity | 13,200 lbs. |
| Drivetrain | |
|---|---|
| Axles | Trunnion mounted planetary 35-Degree steer axles High bias limited slip differential on front axle |
| Transmission | Hydrostatic 2-speed |
| Engine/Drivetrain | |
|---|---|
| Displacement | 221 cu in |
| Torque | 406 lb-ft @ 1500 RPM |
| Hydraulic | |
|---|---|
| Hydraulic Tank Capacity | 71.3 Gallons |
| Hydraulic System | Load sense piston pump. Auxiliary hydraulics used for all attachments equipped with cylinders or other hydraulic components |
| Operational | |
|---|---|
| Brakes | Service breaks are inboard wet disc brake on front and rear axles and including inching. Parking brakes are wet disc spring-applied hydraulic release on front axle |
| Tires | Standard: Foam Filled Tires TM R4 18 x 22.5 Lug Tread Optional: Air Tires AR01 445/65 R22.5 Turf Tread Air Tires TM R4 18 x 22.5 Lug Tread |
| Outriggers | Yes |
| Travel Speed - Forward | 12.4 MPH (Foam-Filled) |
| Maximum Reach | 59’6” |
| Max Lift Height | 67’ |
| Lift Capacity | 13,200 lbs. (Max) 5500 lbs. (Full Height) 1500 lbs. (Max Reach) |
| Lift Speed | 21.9 seconds (boom retracted) – Up 13.8 seconds (boom retracted) – Down |
| Max. Reach | 59’6” |
| Max. Load @ Full Height | 5,500 lbs. |
| Drawbar Pull | 22,500 lbs. (loaded) |
| Load Center | 2’ |
| Outriggers Up Lift Capacity | 4400 lbs. (Full Height) 650 lbs. (Full Reach) |
| Outriggers Up Max | 65’ (Height) 44’6” (Forward Reach) |
| Boom Speed | 31.2 seconds – Extended 17.4 seconds – Retracted |
| Pump Type | Load Sensing Piston |
| Outriggers Down Max Lift Capacity | 13,200 lbs. |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | JLG |
| MODEL | R1370 Rotating Model |
