Komatsu 901XC-6

New Wheeled Harvester

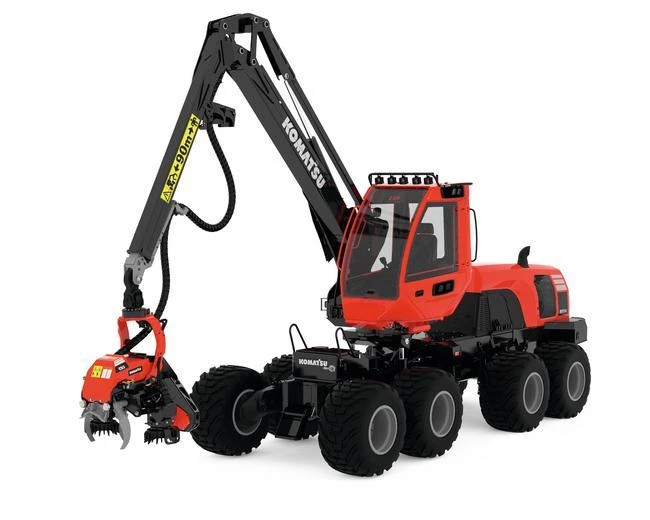

Komatsu 901XC-6 Wheeled Harvester for Sale

The Komatsu 901XC is a thinning harvester with extreme stability and good reach. Its eight wheels reduce ground damage on soft forest floors and deliver excellent maneuverability in steep terrain.

Reach further without losing ground

When you need thinning power with extreme stability, even at maximum reach. The 901XC-6 harvester’s eight wheels enable you to maneuver softly, as well as harvest productively in steep or difficult terrain.

  • ±180° cab/crane rotation with automatic 4-way cab/crane leveling
  • Three-pump hydraulic system enables simultaneous slewing, feeding and maneuvering
  • Wide selection of Komatsu harvesting heads to meet your application



Features and benefits

  • Excellent maneuverability: Confidently traverse difficult terrain, thanks to key drivetrain technologies, such as the Comfort Bogie system with high ground clearance and enhanced traction; hydrostatic transmission matching power and traction; and automatic cab/crane levelling.
  • Powerful parallel crane: A true production enhancer with a single control lever movement extending the boom/arm on a parallel path. Excellent lifting and slewing torque plus an industry-leading ±180° cab/crane rotation.
  • Modern, large, spacious cab: Operator comfort, visibility and man-machine interface are critical to your productivity. Automotive-quality cab includes a giant front window, ergonomic seat, automatic climate control, sound-deadening measures, and heated and cooled meal storage
  • 3-PS hydraulic system: Work faster. Our innovative three-pump hydraulic system enables you to operate several crane and head functions at the same time at full power — even while moving.
  • Service accessibility: Daily service is made easy with an electrically operated engine hood. We’ve also placed inspection and service points, so you rarely need to climb onto the machine for maintenance. Automatic central lubrication system further reduces daily maintenance time.
  • MaxiXT: State-of-the-art control system with intuitive graphical interface to manage all aspects of head control and performance. Easy programming of individual operator control preferences plus production parameters such as tree species, length and diameter.
  • Innovative 8WD system: Excellent stability and sure-footedness in rough terrain harvesting situations. Innovative Double Comfort Bogie suspension systems provide powerful 8-wheel drive confidence, especially in sloped, rough or soft terrain.
  • Excellent cold weather starting: Special diesel heater system heats the batteries, engine coolant, DEF and hydraulic oil to help ensure easy starting in cold conditions.
  • Broad selection of harvesting heads: Choose a high-performance Komatsu C93, C124 or S92 harvesting head to meet your specific application needs.
Specs
Horizontal Levelling Longitudinal 22°/20° and lateral 17°
Axle
Front Axle Geared bogie "hi clearance" type with portal axles housed in the rims. Differential with mechanical differential lock.
Rear Axle Suspended geared bogie, “hi clearance” type with portal gears housed in the rims. Differential with mechanical differential lock. Hydraulic stabiliser.
Body
Cab Tested in accordance with applicable ISO standard. Levelling. Thermal and acoustic insulation Miscellaneous: Manual tilt. Windscreen wipers and washers on windscreen.
Tires 600/45x24.5
Heater/Defroster/Air Conditioning Combined heating and cooling unit or climate control. Filtered intake air via allergy filter.
Seat Several alternative seat options. Ergonomically designed with headrest, armrests, hand controllers and waist safety belt. Depending on seat selection, different options are available for individual adjustment of the seat cushion, backrest and lumbar support. Also available as a rotating seat.
Available Heads S82, S92, C93, C124
Window Polycarbonate windows throughout.
Dimensions
Length 25’2” (total)
6’1” (Front axle to middle joint)
6’11” (Middle joint to Rear Axle)
Width 9’1” (w/600/45x24.5 tires)
Weight 44,555 lbs.
Ground Clearance 2’2”
Steering Angle +/- 40°
Transport Height 12’6” (w/tire compression)
Stroke Volume 1.74 Gallons
Harvester Head Weight Komatsu S82: 1,827 lbs.
Komatsu S92: 2,096 lbs.
Komatsu C93: 2,138 lbs.
Komatsu C124: 2,667 lbs.
Felling/Cutting Diameter Komatsu S82: 22.8”
Komatsu S92: 24.8”
Komatsu C93: 23.6”
Komatsu C124: 25.6”
Engine
Engine Make Komatsu
Engine Model AGCO POWER
Engine Type Diesel engine with turbo and intercooler. Tier F
Horsepower 228 HP
Fuel Tank Capacity 102 Gallons
Drive Speed 0-approx. 13.7 MPH
Feed Force Komatsu S82: 4.5 lbf.
Komatsu S92: 5.86 lbf.
Komatsu C93: 4.5/5.68 lbf.
Komatsu C124: 5.3/6.36 lbf.
Braking Performance Conforms to ISO 11169 and VVFS 2003:27
Drivetrain
Transmission Hydrostatic-mechanical, controlled via MaxiXT. Transfer gearbox with 2 positions. Disengageable front-wheel drive.
Hydraulic
Cylinders 6
Torque 701 ft.-lbs. at 1500 RPM
Hydraulic System Dual-circuit load-sensing system with variable piston pumps
Hydraulic Flow 139 GPM at 1600 RPM
Hydraulics Pressure filter for hydrostatic circuit. Return oil filter for hydrostatic and working hydraulics. Hydraulic oil level warning
Hydraulic System Pressure 4061 PSI
Hydraulic Oil Capacity Approx. 220 L
Operational
Brakes Fully-hydraulic multi-disc brakes. Brake pressure accumulators charged via automatic hydraulic accumulator charging valve.
Driving brake: Four multi-disc brakes in oil bath acting on front and rear axles.
Working brake: Same as driving brake. Automatically engaged when working.
Parking brake: Spring-action brake with electro-hydraulic control. Emergency brake.
Steering Hydraulic articulated joint with two dual-acting hydraulic cylinders.
Joystick steering: Load-sensing (LS) proportional steering from crane controls/rocker.
Electric steering: Finger-controlled miniature steering wheel on right-hand panel.
Generator 2 x 100 A
Tractive Force 41,365 lbf.
Slewing Torque 31,715 lbf.-ft.
Feed Rate 0-16.4 f/s
AdBlue Tank Capacity 42 L
Lifting Torque 14,604 lbf.-ft.
Roller Opening Komatsu S82: 18.1”
Komatsu S92: 20.4”
Komatsu C93: 21.6”
Komatsu C124: 26.3”
Differential Locks Front and rear axle. Mechanical electro-hydraulic control
Ergonomics Levelling for good posture. Cab coupled to swing axle. Crane and cab on horizontal, rotating platform. Hydraulic stabilization when maneuvering
Ergonomics Rotation +/- 180°
Front Knives Opening Komatsu S82: 20.3”
Komatsu S92: 21”
Komatsu C93: 23.6”
Komatsu C124: 24”
Boom
Boom Reach 32’10” or 36’1”
Boom Models 200H
Electrical
Voltage 24 V
Noise Level As per ISO standard.
Battery Capacity 2 x 180 Ah
Vibration As per ISO standard.
Working Lights 13 lights on cab, 2 lights on crane, 3 lights on crane base, all halogen, and 2 lights on the engine hood grille, LED
Service Lights LED lights in service compartments
