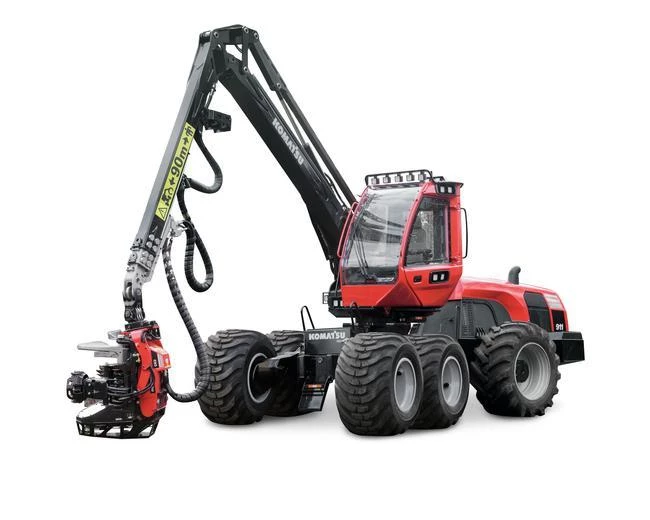

Komatsu 911-7 Wheeled Harvester for Sale The Komatsu 911 all-around harvester delivers next generation harvester technology today, uniquely benefiting the environment, the working environment and production. The explanation can be found in both the whole and the parts, the most important of which are presented here. All-around performance Tomorrow’s technology today, to benefit the natural environment, the operator’s environment and your production. The Komatsu 911-7 is an all-around thinning harvester that nimbly maneuvers through rough terrain and dense forests.
Features and benefits
|
Specs | |
---|---|
Horizontal Levelling | Longitudinal 22°/20° and lateral 17°v |
Axle | |
---|---|
Front Axle | Geared bogie "hi clearance" type with portal axles housed in the rims. Differential with mechanical differential lock. |
Rear Axle | Swing axle with hub reduction. Differential with mechanical differential lock. Hydraulic stabiliser |
Body | |
---|---|
Cab | Tested in accordance with applicable requirements. Levelling. Thermal and acoustic insulation Miscellaneous: Manual tilt. Windscreen wipers and washers on windscreen. |
Tires | 600/55x26.5 |
Heater/Defroster/Air Conditioning | Combined heating and cooling unit or climate control. Filtered intake air via allergy filter. |
Seat | Several alternative seat options. Ergonomically designed with headrest, armrests, hand controllers and waist safety belt. Depending on seat selection, different options are available for individual adjustment of the seat cushion, backrest and lumbar support. Also available as a rotating seat. |
Available Heads | 200H: S82, S92, C93, C124 230H: S92, C93, C124, S132, C144, V132E |
Window | Polycarbonate windows throughout. |
Dimensions | |
---|---|
Length | 200H: 24’1”; 230H: 24’8” (Total) 200H: 6’1”; 230H: 6’4” (Front Axle to middle joint) 200H: 5’7”; 230H: 5’11” (Middle joint to rear axle) |
Width | 8’11” (w/600/55x26.5 tires) |
Weight | 200H: 39,353 lbs. 230H: 43,387 lbs. |
Ground Clearance | 2’2” |
Steering Angle | +/- 40° |
Transport Height | 200H: 12’6” (w/tire compression) 230H: 5’11” (w/tire compression) |
Stroke Volume | 1.74 Gallons |
Harvester Head Weight | Komatsu S82: 1,827 lbs. Komatsu S92: 2,096 lbs. Komatsu C93: 2,138 lbs. Komatsu C124: 2,667 lbs. Komatsu S132: 3,007 lbs. Komatsu V132E: 3,042 lbs. Komatsu C144: 3,108 lbs. |
Felling/Cutting Diameter | Komatsu S82: 22.8” Komatsu S92: 24.8” Komatsu C93: 23.6” Komatsu C124: 25.6” Komatsu S132: 28.3” Komatsu V132E: 21.6” Komatsu C144: 27.9”-29.5” |
Engine | |
---|---|
Engine Make | Komatsu |
Engine Model | AGCO POWER |
Engine Type | Diesel engine with turbo and intercooler. Tier 4F |
Horsepower | 228 HP |
Fuel Tank Capacity | 200H: 97.74 Gallons 230H: 107 Gallons |
Drive Speed | 200H: 0-approx. 14.9 MPH 230H: 0-approx. 13.1 MPH |
Feed Force | Komatsu S82: 4.5 lbf. Komatsu S92: 5.86 lbf. Komatsu C93: 4.5/5.68 lbf. Komatsu C124: 5.3/6.36 lbf. Komatsu S132/Komatsu V132E: 4.7/5.4 lbf. Komatsu C144: 5.3/6.6 lbf. |
Braking Performance | Conforms to ISO 11169 and VVFS 2003:27 |
Drivetrain | |
---|---|
Transmission | Hydrostatic-mechanical, controlled via MaxiXT. Transfer gearbox with 2 positions. Disengageable front-wheel drive. |
Hydraulic | |
---|---|
Cylinders | 6 |
Torque | 701 ft.-lbs. at 1500 RPM |
Hydraulic System | Dual-circuit load-sensing system with variable piston pumps |
Hydraulic Flow | 106 GPM at 1600 RPM |
Hydraulics | Pressure filter for hydrostatic circuit. Return oil filter for hydrostatic and working hydraulics. Hydraulic oil level warning |
Hydraulic System Pressure | 280 bar |
Hydraulic Oil Capacity | Approx. 220 L |
Operational | |
---|---|
Brakes | Fully-hydraulic multi-disc brakes. Brake pressure accumulators charged via automatic hydraulic accumulator charging valve. Driving brake: Four multi-disc brakes in oil bath acting on front and rear axles. Working brake: Same as driving brake. Automatically engaged when working. Parking brake: Spring-action brake with electro-hydraulic control. Emergency brake. |
Steering | Hydraulic articulated joint with 2 dual-acting hydraulic cylinders. Lever steering: Load-sensing (LS) proportional steering from crane controls/rocker. Electric steering: Finger-controlled miniature steering wheel on right-hand panel. |
Generator | 2 x 100 A |
Tractive Force | 200H: 37,543 lbf. 230H: 42,489 lbf. |
Slewing Torque | 200H: 31,715 lbf.-ft. 230H: 35,034 lbf.-ft. |
Feed Rate | Komatsu S82/Komatsu S92/Komatsu C93/Komatsu C124/C144: 0-16.4 f/s Komatsu S132: 0-15/16.4 f/s Komatsu V132E: 0-21.3 f/s |
AdBlue Tank Capacity | 42 L |
Lifting Torque | 200H: 146,037 lbf.-ft. 230H: 169,639 lbf.-ft. |
Roller Opening | Komatsu S82: 18.1” Komatsu S92: 20.4” Komatsu C93/Komatsu V132E: 21.6” Komatsu C124: 26.3” Komatsu S132: 24” Komatsu C144: 29.5” |
Differential Locks | Front and rear axle. Mechanical electro-hydraulic control |
Ergonomics | Levelling for good posture. Cab coupled to swing axle. Crane and cab on horizontal, rotating platform. Hydraulic stabilization when maneuvering |
Ergonomics Rotation | +/- 180° |
Front Knives Opening | Komatsu S82: 20.3” Komatsu S92: 21” Komatsu C93: 23.6” Komatsu C124: 24” Komatsu S132: 25.2” Komatsu V132E: 27.9” Komatsu C144: 25.9” |
Boom | |
---|---|
Boom Reach | 200H: 32’10” or 36’1” 230H: 28’7”, 32’10” or 36’1” |
Boom Models | 200H & 230H |
Electrical | |
---|---|
Voltage | 24 V |
Noise Level | As per ISO standard. |
Battery Capacity | 2 x 180 Ah |
Vibration | As per ISO standard. |
Working Lights | 13 lights on cab, 2 lights on crane, 3 lights on crane base, all halogen, and 2 lights on the engine hood grille, LED |
Service Lights | LED lights in service compartments |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Komatsu |
MODEL | 911-7 |
