Komatsu 931XC-3

New Wheeled Harvester

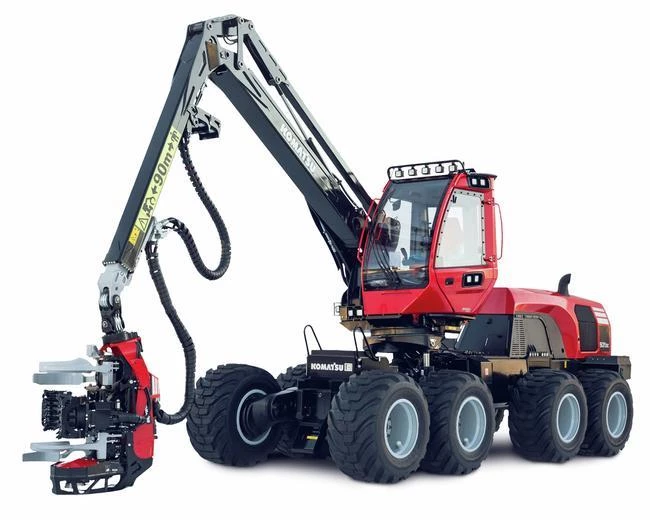

Komatsu 931XC-3 Wheeled Harvester for Sale

The Komatsu 931XC is a powerhouse offering considerable stability and low ground pressure. With eight wheels, operator comfort is high, ground damage is reduced and manoeuvrability is excellent in steep terrain.

8WD harvesting power

Harvest in confidence, even in the most challenging conditions. Eight wheels – all driven – this machine offers you incredible traction, maneuverability and stability. Your productivity is boosted further with a dynamic cab/crane levelling system.

  • ±180° cab/crane rotation with automatic 4-way cab/crane leveling
  • Three-pump hydraulic system enables simultaneous slewing, feeding and maneuvering
  • Wide selection of Komatsu harvesting heads to meet your application



Features and benefits

  • Excellent maneuverability: Confidently traverse difficult terrain, thanks to key drivetrain technologies, such as the Comfort Bogie system with high ground clearance and enhanced traction; hydrostatic transmission matching power and traction; and automatic cab/crane levelling.
  • Powerful parallel crane: A true production enhancer with a single control lever movement extending the boom/arm on a parallel path. Excellent lifting and slewing torque plus an industry-leading ±180° cab/crane rotation.
  • Modern, large, spacious cab: Operator comfort, visibility and man-machine interface are critical to your productivity. Automotive-quality cab includes a giant front window, ergonomic seat, automatic climate control, sound-deadening measures, and heated and cooled meal storage
  • 3-PS hydraulic system: Work faster. Our innovative three-pump hydraulic system enables you to operate several crane and head functions at the same time at full power — even while moving.
  • Service accessibility: Daily service is made easy with an electrically operated engine hood. We’ve also placed inspection and service points, so you rarely need to climb onto the machine for maintenance. Automatic central lubrication system further reduces daily maintenance time.
  • MaxiXplorer: State-of-the art control system with intuitive graphic interface to manage all aspects of head control and performance. Easy programming of production parameters such as tree species, length and diameter, plus individual operator control preferences.
  • Innovative 8WD system: Excellent stability and sure-footedness in rough terrain harvesting situations. Innovative Double Comfort Bogie suspension systems provide powerful 8-wheel drive confidence, especially in sloped, rough or soft terrain.
  • Excellent cold weather starting: Special diesel heater system heats the batteries, engine coolant, DEF and hydraulic oil to help ensure easy starting in cold conditions.
  • Broad selection of harvesting heads: Choose a high-performance Komatsu C93, C144, S92 or S132 harvesting head to meet your specific application needs.
Specs
Horizontal Levelling Longitudinal 22°/20° and lateral 16°
Axle
Front Axle Geared bogie "hi clearance" type with portal axles housed in the rims. Differential with mechanical differential lock.
Rear Axle Suspended geared bogie type “hi clearance” with portal axles housed in the rims. Differential with mechanical differential lock. Hydraulic stabiliser.
Body
Cab Tested in accordance with applicable ISO standard. Levelling. Thermal and acoustic insulation Miscellaneous: Manual tilt. Windscreen wipers and washers on windscreen.
Heater/Defroster/Air Conditioning Combined heating and cooling unit or climate control. Filtered intake air via allergy filter.
Seat Several alternative seat options. Ergonomically designed with headrest, armrests, hand controllers and waist safety belt. Depending on seat selection, different options are available for individual adjustment of the seat cushion, backrest and lumbar support. Also available as a rotating seat
Available Heads S92, C93, C123, S132, C144
Window Polycarbonate windows throughout.
Dimensions
Length 26’4” (total)
6’4” (Front axle to middle joint)
7’1” (Middle joint to Rear Axle)
Width 9’1”
Weight 48,281 lbs.
Ground Clearance 2’4”
Steering Angle +/- 40°
Transport Height 12’11”
Stroke Volume 1.95 Gallons
Harvester Head Weight Komatsu S92: 2,096 lbs.
Komatsu C93: 2,138 lbs.
Komatsu C124: 2,667 lbs.
Komatsu S132: 3,007 lbs.
Komatsu V132E: 3,042 lbs.
Komatsu C144: 3,108 lbs.
Komatsu 370E: 3,527 lbs.
Felling/Cutting Diameter Komatsu S92: 24.8”
Komatsu C93: 23.6”
Komatsu C124: 25.6”
Komatsu S132: 28.3”
Komatsu V132E: 21.6”
Komatsu C144: 27.9”-29.5”
Komatsu 370E: 27.5”
Engine
Engine Make Komatsu
Engine Model 74 AWF
Engine Type Diesel engine with turbo and intercooler. EPA Tier 4 Final and EU Stage 4
Horsepower 255 HP
Fuel Tank Capacity 127 Gallons
Drive Speed 0-approx. 12.5 mph
Feed Force Komatsu S92: 5.86 lbf.
Komatsu C93: 4.5/5.68 lbf.
Komatsu C124: 5.3/6.36 lbf.
Komatsu S132/Komatsu V132E: 4.7/5.4 lbf.
Komatsu C144: 5.3/6.6 lbf.
Komatsu 370E: 4.7/5.7/6.3/6.9 lbf.
Braking Performance Conforms to ISO 11169 and VVFS 2003:27
Drivetrain
Transmission Hydrostatic-mechanical, controlled via MaxiXT. Transfer gearbox with 2 positions. Disengageable front-wheel drive.
Hydraulic
Cylinders 6
Torque 833 ft.-lbs. at 1500 RPM
Hydraulic System Working hydraulics have dual-circuit load-sensing system with variable piston pumps
Hydraulic Flow 139 GPM at 1600 RPM
Hydraulics Pressure filter for hydrostatic circuit. Return oil filter for hydrostatic and working hydraulics. Hydraulic oil level warning
Hydraulic System Pressure 4061 PSI
Hydraulic Oil Capacity Approx. 220 L
Operational
Brakes Fully-hydraulic multi-disc brakes. Brake pressure accumulators charged via automatic hydraulic accumulator charging valve.
Driving brake: Four multi-disc brakes in oil bath acting on front and rear axles.
Working brake: Same as driving brake. Automatically engaged when working.
Parking brake: Spring-action brake with electro-hydraulic control. Emergency brake
Steering Hydraulic articulated joint with 2 dual-acting hydraulic cylinders.
Joystick steering: Load-sensing (LS) proportional steering from crane controls/rocker.
Electric steering: Finger-controlled miniature steering wheel on right-hand panel.
Generator 2 x 100 A
Tractive Force 44,962 lbf.
Slewing Torque 39,828 lbf.-ft.
Feed Rate Komatsu S92/Komatsu C93/Komatsu C124/Komatsu C144/Komatsu 370E: 0-16.4 f/s
Komatsu S132: 0-15/16.4 f/s
Komatsu V132E: 0-21.3 f/s
AdBlue Tank Capacity 42 L
Lifting Torque 169,639 lbf.-ft.
Roller Opening Komatsu S92: 20.4”
Komatsu C93/V132E: 21.6”
Komatsu C124: 26.3”
Komatsu S132: 24”
Komatsu C144: 29.5”
Komatsu 370E: 23.6”
Differential Locks Front and rear axle. Mechanical electro-hydraulic control
Ergonomics Levelling for good posture. Cab coupled to swing axle. Crane and cab on horizontal, rotating platform. Hydraulic stabilization when maneuvering
Ergonomics Rotation +/- 180°
Front Knives Opening Komatsu S92: 21”
Komatsu C93: 23.6”
Komatsu C124: 24”
Komatsu S132: 25.2”
Komatsu V132E: 27.9”
Komatsu C144: 25.9”
Komatsu 370E: 25.1”
Boom
Boom Reach 28’7”, 32’10” or 36’
Boom Models 230H
Electrical
Voltage 24 V
Noise Level As per ISO standard.
Battery Capacity 2 x 180 Ah
Vibration As per ISO standard.
Working Lights 13 lights on cab, 2 lights on crane, 3 lights on crane base, all halogen, and 2 lights on the engine hood grille, LED
Service Lights LED lights in service compartments
