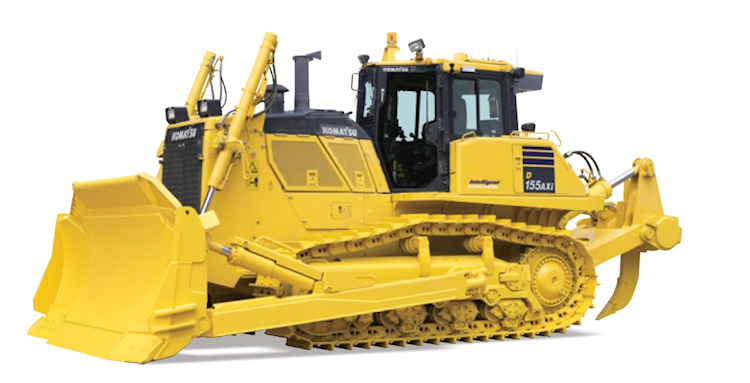

New Komatsu D155AXi-8 Bulldozer for Sale Your big jobs demand a big dozer. 350+ horsepower, massive blade capacity with semi-U and full U blades, automatic lockup torque converter, and low drive K-bogie suspended undercarriage designed for maximum traction and smooth ride when dozing or ripping.
Close the operator skill gap: Machine logic allows the dozer to continuously learn the terrain and make calculated decisions for the next pass. Intelligent Machine Control helps lessen the skill gap between new and experienced operators. Advanced machine control: In select situations — auto stripping, rough dozing, spreading, advanced finish grading — operators can opt for nearly 100% machine control auto usage. They can even apply automatic control without having a 3D model. A machine that learns from the operator: Automatic functions give the dozer the ability to learn from operator's blade input, resulting in more adaptability, easier operation and less reliance on operator input. Outstanding blade response for finish grading: To deliver unparalleled grading performance, iMC enables the dozer to look ahead at grade transitions and alter the blade angle accordingly. |
| Dimensions | |
|---|---|
| Length | 27’7” |
| Width | 7’ |
| Height | 11’9” |
| Weight | 72,223 lb |
| Ground Clearance | 1’8” |
| Turning Radius | 7'0" |
| Operating Weight | 90,610 lbs |
| Fuel Tank Capacity | 165 U.S. gal |
| Frame Type | Track roller frame: Monocoque, high-tensile strength steel construction |
| Coolant | 27.5 U.S. ga |
| Final Drive | Double-reduction, spur and planetary final drives increase tractive effort. Segmented sprockets are bolt-on for easy in-the-field replacement |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SAA6D140E-7 |
| Engine Type | 4-cycle, direct injection |
| Cylinders | 6 |
| Net Horsepower | 354 HP |
| Cooling | Water-cooled |
| Bore x Stroke | 5.51" x 6.50" |
| Speed - Foreward | 1st: 2.4 mph 2nd: 3.5 mph 3rd L: 4.7 mph 3rd: 7.2 mph |
| Speed - Reverse | 1st: 2.9 mph 2nd: 4.2 mph 3rd L: 5.7 mph 3rd: 8.7 mph |
| Gross Horsepower | 360 HP |
| Governor | Mid-range, electronic |
| Rated RPM | 1900 rpm |
| Lubrication System | Method: Gear pump, force lubrication Filter: Full-flow |
| Aspiration | Komatsu Variable Geometry Turbocharged, air-to-air aftercooled, cooled EGR |
| Piston Displacement | 930 in³ |
| Fan Drive Type | Hydraulic |
| Drivetrain | |
|---|---|
| Tracks | Lubricated tracks. Unique dust seals for preventing entry of foreign abrasives into pin-to-bushing clearance for extended service. Track tension easily adjusted with grease gun. |
| Transmission Type | Komatsu's automatic TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 1-phase, torque converter with lockup clutch, and a planetary gear, multipledisc clutch transmission which is hydraulically actuated and force-lubricated for optimum heat dissipation. Equipped with gearshift lock lever and neutral safety switch. |
| Drive Type | Hydraulic (fan drive type) |
| Shoe Size | Track Shoes: Lubricated tracks. Unique dust seals for preventing entry of foreign abrasives into pin-to-bushing clearance for extended service. Track tension easily adjusted with grease gun. Number: 42 on each side Width: 24" / 28" |
| Track Rollers | 7 each side |
| Ground Pressure | 14.6 PSI |
| Grouser Height | 3.1" |
| Carrier Rollers | 2 each side |
| Hydraulic | |
|---|---|
| Control Valve | Spool control valve for SIGMADOZER and Semi-U tilt dozer Positions: Blade lift-Raise, hold, lower, and float Blade tilt-Right, hold, and left Additional control valve required for variable digging angle multi-shank ripper and giant ripper Positions: Ripper lift-Raise, hold, and lower Ripper tilt-Increase, hold, and decrease Hydraulic cylinders-Double-acting, piston |
| Hydraulic Tank Capacity | 25.1 U.S. gal |
| Hydraulic System | Closed-center load sensing system (CLSS) designed for precise and responsive control, and for efficient simultaneous operation |
| Hydraulic Cylinders | Number of cylinders x bore Blade Lift: 2 x 4.33” Blade Tilt: 1 x 6.30” Ripper Lift: 1 x 7.09” Ripper Tilt: 1 x 7.87” |
| Relief Valve Setting | 3,980 PSI (for implement) 5,550 PSI (for steering) |
| Operational | |
|---|---|
| Blade Height | 6’1” (Strengthened SIGMADOZER) 5’10” (Semi-U Tilt Dozer) |
| Blade Capacity | 12.3 yd ³ |
| Blade Tilt | Hydraulic Cylinder: Single Tilt: 1 Cylinder; Bore-6.30" Dual Tilt: 2 Cylinder; Bore-6.30" Control Valve: Right, hold and left |
| Suspension | Oscillation-type with equalizer bar and forward mounted pivot shafts |
| Steering | PCCS lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to the left to make a left turn. Tilt it to the right for a right turn. Hydrostatic steering system (HSS) is powered by steering planetary units and an independent hydraulic pump and motor. Counter-rotation turns are also available. Wet, multiple-disc, pedal-controlled service brakes are spring-actuated and hydraulically released. Gearshift lock lever also applies parking brakes. |
| Ripper | Lift-7.09" Tilt-1 Cylinder, Bore-7.87" |
| Blade Lift | Hydraulic Cylinder: 2 Cylinders; Bore-4.33" Control Valve: Raise, hold, lower, and float |
| Shoes | 42 each side |
| Shoe Width | 24” (Standard) 28” (Maximum) |
| Blade Length` | 13'4" (Strengthened SIGMADOZER) 13'7" (Semi-U Tilt Dozer) |
| Ground Contact | 6,193 in² |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | D155AXi-8 |
