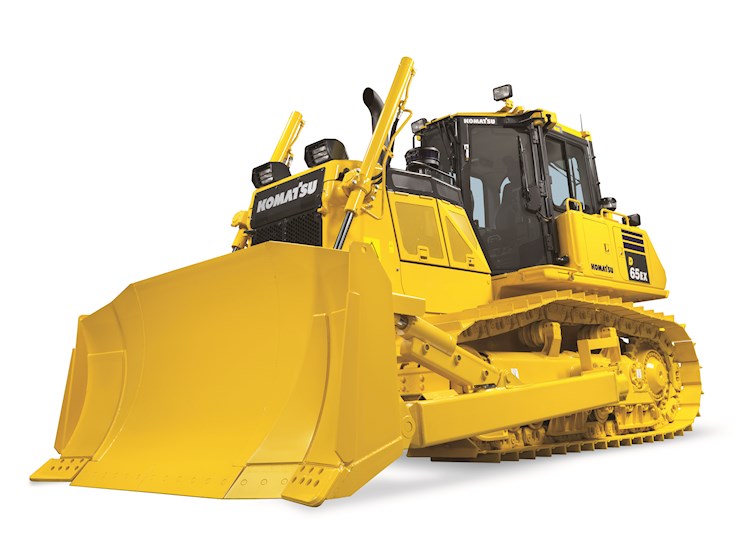

New Komatsu D65EX-18 Bulldozer for Sale Need an all-around workhorse designed for years of high productivity? The D65EX-18 is tough to beat. A large capacity outside push frame semi-U blade helps make it the backbone of your dozer fleet and includes extended wear life undercarriage 24” PLUS (Parallel Link Undercarriage System) rotating bushing tracks.
Custom build the dozer you need: All the dozers in the D65/85/155 family offer you outstanding power, economy and reliability. Customize yours with the blade (straight, Semi-U, Sigmadozer and Full U (D155 only)), track shoe width and horsepower combo best suited to your particular application. Helps minimize fuel use: An advanced Tier 4 engine offers you a potent combo of power and fuel efficiency. An auto idle shutdown, adjustable from 5-60 minutes, also helps cut fuel use and emissions. Controls help fight operator fatigue: Operators will enjoy the palm command electronic control joysticks that fit the natural relaxed shape of their hands. Auto-shift or manual-shift modes are easily selected with one push of a button for precision with less fatigue over the course of a shift. Smooth, powerful handling: Your operators can execute smooth powerful turns with the hydrostatic steering system. It transmits engine power to both tracks without power interruption and minimizes turning radius with counter-rotation while in neutral. Long-lasting undercarriage: Get the most from your dozer. The Parallel Link Undercarriage System (PLUS) with rotating bushings delivers up to twice the life of our conventional undercarriage with no pin and bushing turn required. Parts wear evenly and last longer before needing replacement. Work with fuel-efficient power: Seek maximum work efficiency with a lock-up torque converter. It determines the appropriate gear based on load and conditions. The lockup mechanism then automatically transfers engine power directly to the transmission, helping boost drive train efficiency. intelligent Machine Control (iMC): With automatic dozing, rough cut to finish grade, iMC-equipped machines make every pass count. Dozers “learn” operator blade input. In select situations, operators can opt for near-100% auto control. And, iMC helps new operators get up to speed quickly. Help operators stay focused: Your operators perform best when they’re comfortable. That’s why they’ll love the air suspension seat with lumbar support and tilt. It’s easy for them to adjust to suit their needs, and electric heat helps them stay comfortable in the cold. |
| Dimensions | |
|---|---|
| Length | 13’4” |
| Width | 6’2” (Straight Tilt Dozer) 6’9” (PAT Dozer) |
| Height | 10 ft. 5 in. (3,160 mm) |
| Weight | 41,403 lbs. (Sigmadozer/SU) 47,091 lbs. (PAT) |
| Wheelbase | 9 ft. 9 in. (2,970 mm) |
| Ground Clearance | 16” |
| Turning Radius | 6’3” 6’7” (w/PAT) |
| Operating Weight | 46,892 lbs. (Sigmadozer/SU) 50,706 lbs. (PAT) |
| Fuel Tank Capacity | 109.6 gal. (415 l) |
| Frame Type | Track roller: Monocoque, large section, durable construction |
| Final Drive | Double-reduction planetary gear final drives increase drawbar pull and reduce stresses for longer life. Segmented sprocket teeth are bolt-on for easy replacement. Triple labyrinth housing protects the final drive seals. |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SAA6D114E-6 |
| Engine Type | 4-cycle, direct injection |
| Cylinders | 6 |
| Net Horsepower | 217 HP |
| Cooling | Water-cooled |
| Bore x Stroke | 4.49 x 5.69 in. (114 x 144.5 mm) |
| Displacement | 540 cu. in. (8.85 l) |
| Speed - Foreward | 1st: 2.3 MPH 2nd: 3.5 MPH 3rd L: 4.5 MPH 3rd: 7 MPH |
| Speed - Reverse | 1st: 2.8 MPH 2nd: 4.2 MPH 3rd L: 5.4 MPH 3rd: 8.5 MPH |
| Gross Horsepower | 220 hp (164 kW) @ 1,950 rpm |
| Governor | All-speed and mid-range, electronic |
| Rated RPM | 1950 RPM |
| Lubrication System | Method: Gear pump, force lubrication Filter: Full-flow |
| Aspiration | Variable geometry turbocharged, air-to-air aftercooled |
| Piston Displacement | 540 in³ |
| Fan Drive Type | Variable speed hydraulic |
| Drivetrain | |
|---|---|
| Number of Speeds | 4 |
| Transmission | Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 2-phase, torque converter with lockup clutch, and a planetary gear, multiple-disc clutch transmission, which is electronically controlled, hydraulically actuated and force-lubricated for optimum heat dissipation. Shift lock lever and neutral safety switch. |
| Track Rollers | 7 per side |
| Roller Type | Lubricated |
| Ground Pressure | 6.4 PSI (outside mounted blade) 7.93 PSI (inside mounted blade) |
| Grouser Height | 2.6” |
| Hydraulic | |
|---|---|
| Control Valve | Spool control valves for SIGMADOZER or straight tilt dozer Positions: Blade lift—Raise, hold, lower, and float Blade tilt—Right, hold, and left Rear attachment—Raise, hold, and lower Spool control valves for Power Angle Tilt dozer Positions: Blade lift—Raise, hold, lower, and float Blade tilt—Right, hold, and left Blade angle—Right, hold, and left Rear attachment—Raise, hold, and lower |
| Hydraulic System | Closed-center load sensing system (CLSS) designed for precise and responsive control, and for efficient simultaneous operation |
| Hydraulic Cylinders | SIGMADOZER Straight Tilt Dozer (Number of cylinders x Bore) Blade lift: 2 x 3.3” Blade tilt: 1 x 4.9” Blade angle: 2 x NA Ripper lift: 1 x 4.9” Pitch angle: 39°-53° Power Angle Power Tilt Dozer (Number of cylinders x Bore) Blade lift: 2 x 3.5” Blade tilt: 1 x 5.1” Blade angle: 2 x 4.3” Ripper lift: 1 x 4.9” Pitch angle: 52°-58° |
| Relief Valve Setting | 4,050 PSI |
| Operational | |
|---|---|
| Blade Width | 11’2” (SIGMADOZER) 11’5” (Semi-U Dozer) 12’8” (Power Angle Tilt Dozer) |
| Blade Height | 4’8” (SIGMADOZER & Semi-U Dozer) 4’1” (Power Angle Tilt Dozer) |
| Blade Capacity | 5.56 yd³ (Power Angle Tilt Dozer) 7.34 yd³ (SIGMADOZER & Semi-U Dozer) |
| Blade Tilt | 2 ft. 10 in. (870 mm) SIGMADOZER 2 ft. 10 in. (870 mm) straight tilt dozer 1 ft. 8 in. (500 mm) power angle tilt dozer |
| Dig Depth | Maximum Drop Below Ground: 1 ft. 8 in. (500 mm) SIGMADOZER 1 ft. 5 in. (430 mm) straight tilt dozer 2 ft. 3 in. (695 mm) power angle tilt dozer |
| Suspension | Oscillating equalizer bar and pivot shaft |
| Steering | Palm Command Control System (PCCS) lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to the left for a left turns, tilt it right for right turns. Hydrostatic Steering System (HSS) power has been increased 25% by a larger HSS motor, greater hydraulic pump flow, and more engine power while steering. The result is more powerful turns and quicker counter-rotation. Wet, multiple-disc, pedal controlled service brakes are spring-actuated and hydraulically released. Gear shift lock lever also applies parking brake. |
| Shoes | 42 each side Track Shoes: Parallel Link Undercarriage System (PLUS) with lubricated rotating bushings for extended system wear life and lower maintenance costs. Track tension is easily adjusted with a grease gun. |
| Shoe Width | 22” (inside mounted blade) 24” (outside mounted blade) |
| Shoe Type | MS PLUS |
| Ground Contact | 5,821 in² (inside mounted blade) 6,341 in² (outside mounted blade) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | D65EX-18 |
